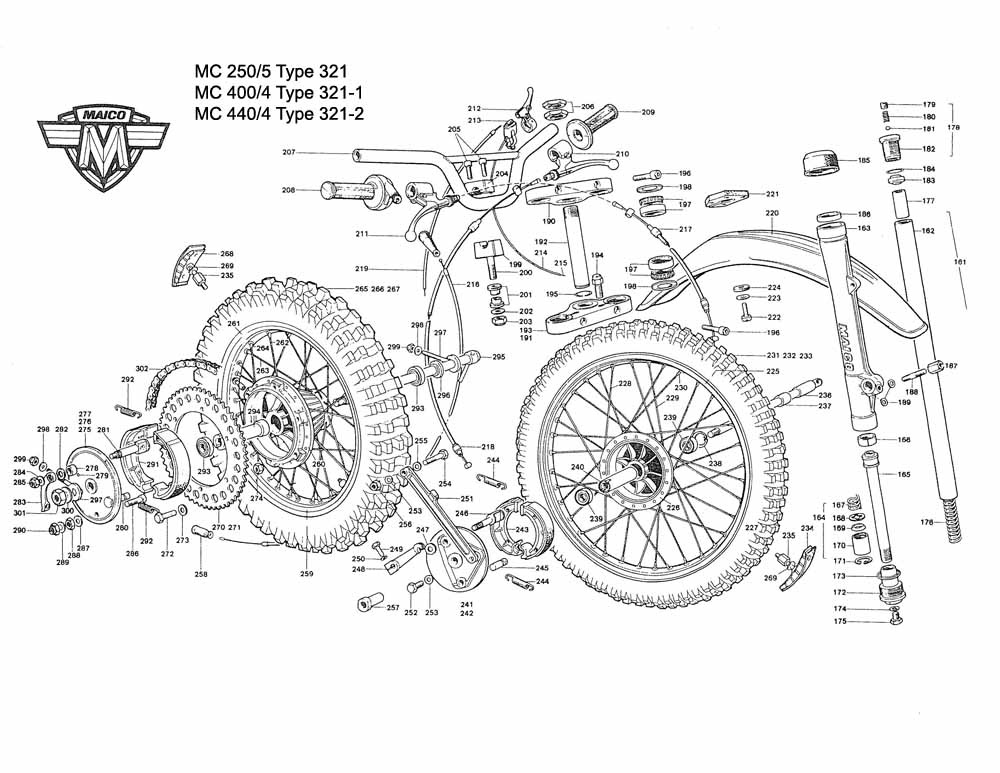

Picture | Part | Description | Quantity / Type |
||
No. | No. | 321 |
321-1 |
321-2 |
|
161 | 3379 | Telescopic fork cpl | 1 |
1 |
1 |
162 | 3380 | Fork tube | 2 |
2 |
2 |
163 | 3357 | Fork slider | 2 |
2 |
2 |
164 | 3364 | Damper cpl | 2 |
2 |
2 |
165 | 3362 | Damper tube | 2 |
2 |
2 |
166 | 3370 | Damper piston ring | 2 |
2 |
2 |
167 | 58 | Damper spring | 2 |
2 |
2 |
168 | 3369 | Valve seat | 2 |
2 |
2 |
169 | 3368 | Valve | 2 |
2 |
2 |
170 | 3367 | Damper insert | 2 |
2 |
2 |
171 | 3366 | Locking ring 34x1.5 Din 472 | 2 |
2 |
2 |
172 | 3365 | Damper cone | 2 |
2 |
2 |
173 | 80 | O ring 29 x 2.5 | 2 |
2 |
2 |
174 | 430 | Sealing ring A 8x14 Din 7603 | 2 |
2 |
2 |
175 | 1585 | Hexagon screw M 8x10 | 2 |
2 |
2 |
176 | 3384 | Fork spring | 2 |
2 |
2 |
177 | 3385 | Spacer tube | 2 |
2 |
2 |
178 | 3376 | Breather screw cpl | 2 |
2 |
2 |
179 | 1785 | Stud M 8x6 D 551 5 8 | 2 |
2 |
2 |
180 | 75 | Valve spring | 2 |
2 |
2 |
181 | 1873 | Ball 6 | 2 |
2 |
2 |
182 | 3377 | Breather screw | 2 |
2 |
2 |
183 | 3378 | Breather screw ring | 2 |
2 |
2 |
184 | 80 | O ring 29 x 2.5 | 2 |
2 |
2 |
185 | 3360 | Wiper | 2 |
2 |
2 |
186 | 3359 | Fork seal | 2 |
2 |
2 |
187 | 78 | Hexagon nut M 8 Din 6330 | 2 |
2 |
2 |
188 | 1772 | Stud M 8x25 Din 835 | 2 |
2 |
2 |
189 | 1734 | Washer B 8 4 Din 125 | 2 |
2 |
2 |
190 | 3381 | Upper cross head | 1 |
1 |
1 |
191 | 3371 | Lower cross head cpl | 1 |
1 |
1 |
192 | 3373 | Steering tube | 1 |
1 |
1 |
193 | 3372 | Lower cross head | 1 |
1 |
1 |
194 | 226 | Locking bolt | 2 |
2 |
2 |
195 | 3375 | Spring ring A 26 Din 7993 | 1 |
1 |
1 |
196 | 1657 | Socket screw M 10x40 Din 912 | 4 |
4 |
4 |
197 | 3297 | Roller bearing | 2 |
2 |
2 |
198 | 3296 | Nilos ring | 2 |
2 |
2 |
199 | 90 | Handlebar clamp lower | 2 |
2 |
2 |
200 | 1661 | Socket screw M 10x60 Din 6912 | 2 |
2 |
2 |
201 | 15 | Rubber buffer | 4 |
4 |
4 |
202 | 1758 | Washer 25x10x2 | 2 |
2 |
2 |
203 | 1693 | Hexagon nut M 10 Din 985 | 2 |
2 |
2 |
204 | 88 | Handlebar clamp upper | 2 |
2 |
2 |
205 | 1646 | Socket screw M 8x30 Din 912 | 4 |
4 |
4 |
206 | 3533 | Hexagon nut | 2 |
2 |
2 |
207 | 3784 | Handlebar | 1 |
1 |
1 |
208 | 2511 | Throttle grip | 1 |
1 |
1 |
209 | 2512 | Rubber grip | 1 |
1 |
1 |
210 | 145 | Clutch lever | 1 |
1 |
1 |
211 | 146 | Brake lever | 1 |
1 |
1 |
212 | 148 | Decompression lever | - |
1 |
1 |
213 | 571 | Kill button | 1 |
1 |
1 |
214 | 2608 | Isolation hose | 1 |
1 |
1 |
215 | 2618 | Cable | 1 |
1 |
1 |
216 | 2456 | Throttle cable | 1 |
1 |
1 |
217 | 486 | Brake cable | 1 |
1 |
1 |
218 | 311 | Clutch cable | 1 |
1 |
1 |
219 | 305 | Cable for decompressor | 1 |
1 |
1 |
220 | 131 | Front fender | 1 |
1 |
1 |
221 | 3382 | Rubber pad | 1 |
1 |
1 |
222 | 1536 | Cylinder head screw M 6x25 Din 84 | 4 |
4 |
4 |
223 | 1750 | Washer A 6.4 Din 9021 | 4 |
4 |
4 |
224 | 126 | Rubber washer | 4 |
4 |
4 |
225 | 2426 | Front wheel cpl (with tire) | 1 |
1 |
1 |
226 | 2420 | Conical front drum | 1 |
1 |
1 |
227 | 3497 | Alum front nm 1.60x21 | 1 |
1 |
1 |
228 | 2432 | Front spokes short | 18 |
18 |
18 |
229 | 2433 | Front spokes long | 18 |
18 |
18 |
230 | 210 | Spoke nipple | 36 |
36 |
36 |
231 | 2003 | Tire 3.00x21 | 1 |
1 |
1 |
232 | 2002 | Air tube 3.00x21 | 1 |
1 |
1 |
233 | 167 | Rim strap | 1 |
1 |
1 |
234 | 168 | Tire holder front cpl | 1 |
1 |
1 |
235 | 289 | Nut for tire holder | 2 |
2 |
2 |
236 | 169 | Front axle | 1 |
1 |
1 |
237 | 2429 | Distance bush | 1 |
1 |
1 |
238 | 1853 | Lock ring 35x1.5 Din 472 | 1 |
1 |
1 |
239 | 2427 | Ball bearing 6202 RS Din 625 | 2 |
2 |
2 |
240 | 2428 | Spacer tube | 1 |
1 |
1 |
241 | 2416 | Front brake plate cpl | 1 |
1 |
1 |
242 | 2417 | Front brake plate | 1 |
1 |
1 |
243 | 1322 | Brake shoe | 2 |
2 |
2 |
244 | 1323 | Tension spring | 2 |
2 |
2 |
245 | 2418 | Pivot bolt | 1 |
1 |
1 |
246 | 2419 | Brake toggle | 1 |
1 |
1 |
247 | 187 | Rubber washer | 1 |
1 |
1 |
248 | 1324 | Front brake lever | 1 |
1 |
1 |
249 | 1569 | Hexagon screw M 6x20 Din 933 | 1 |
1 |
1 |
250 | 1704 | Spring washer B 6 Din 127 | 1 |
1 |
1 |
251 | 2424 | Front brake rod | 1 |
1 |
1 |
252 | 1589 | Hexagon screw M 8x20 Din 933 | 1 |
1 |
1 |
253 | 1714 | Spring washer B 8 Din 931 | 2 |
2 |
2 |
254 | 1594 | Hexagon Screw M 8x40 Din 931 | 1 |
1 |
1 |
255 | 1734 | Washer B 8.4 Din 125 | 1 |
1 |
1 |
256 | 1692 | Hexagon nut M 8 Din 985 | 1 |
1 |
1 |
257 | 2430 | Threaded bush | 1 |
1 |
1 |
258 | 1127 | Hemetical cover | 1 |
1 |
1 |
259 | 3785 | Rear wheel cpl (with tire) | 1 |
1 |
1 |
260 | 3278 | Rear brake drum | 1 |
1 |
1 |
261 | 3228 | Alum rear nm 2.75x18 | 1 |
1 |
1 |
262 | 3198 | Rear spokes short | 18 |
18 |
18 |
263 | 3199 | Rear spokes long | 18 |
18 |
18 |
264 | 210 | Spoke nipple | 36 |
36 |
36 |
265 | 2008 | Tire 4.50x18 | 1 |
1 |
1 |
266 | 2015 | Air tube 4.50x18 | 1 |
1 |
1 |
267 | 2005 | Rim strap | 1 |
1 |
1 |
268 | 2434 | Tire holder rear | 1 |
1 |
1 |
269 | 1734 | Washer B 8.4 Din 125 | 2 |
2 |
2 |
270 | 3227 | Sprocket 56 T | 1 |
1 |
1 |
271 | 288 | Sprocket 52 T | ( 1 |
1 |
1 ) |
272 | 3280 | Hexagon screw M 7x40 Din 933 | 6 |
6 |
6 |
273 | 1713 | Spring Washer B 7 Din 137 | 6 |
6 |
6 |
274 | 1691 | Hexagon nut M 7 Din 985 | 6 |
6 |
6 |
275 | 3186 | Rear brake plate cpl | 1 |
1 |
1 |
276 | 3187 | Rear brake plate | 1 |
1 |
1 |
277 | 3188 | Cover plate | 1 |
1 |
1 |
278 | 183 | Distance bush | 1 |
1 |
1 |
279 | 1901 | Oval head neil 3x8 Din 1476 | 1 |
1 |
1 |
280 | 3189 | Pivot bolt | 1 |
1 |
1 |
281 | 151 | Brake toggle | 1 |
1 |
1 |
282 | 187 | Rubber washer | 1 |
1 |
1 |
283 | 3190 | Brake lever | 1 |
1 |
1 |
284 | 1734 | Washer B 8.4 Din 125 | 1 |
1 |
1 |
285 | 1692 | Hexagon nut M 8 Din 985 | 1 |
1 |
1 |
286 | 3270 | Socket screw M 10x40 Din 6912 | 1 |
1 |
1 |
287 | 1715 | Washer B 10 Din 137 | 1 |
1 |
1 |
288 | 1674 | Hexagon nut M 10 Din 933 | 1 |
1 |
1 |
289 | 1735 | Washer B 10.5 Din 125 | 1 |
1 |
1 |
290 | 1693 | Hexagon nut M 10 Din 985 | 1 |
1 |
1 |
291 | 188 | Brake shoe | 2 |
2 |
2 |
292 | 189 | Tension spring | 2 |
2 |
2 |
293 | 205 | Ball bearing 6303 2 RS C 3 | 2 |
2 |
2 |
294 | 3276 | Spacer tube | 1 |
1 |
1 |
295 | 3277 | Rear axle | 1 |
1 |
1 |
296 | 3196 | Spacer bush | 1 |
1 |
1 |
297 | 223 | Chain adjuster | 2 |
2 |
2 |
298 | 1734 | Washer nut 8.4 Din 125 | 2 |
2 |
2 |
299 | 1692 | Hexagon nut M 8 Din 985 | 2 |
2 |
2 |
300 | 1739 | Washer B 17 Din 1440 | 1 |
1 |
1 |
301 | 1683 | Hexagon nut | 1 |
1 |
1 |
302 | 3708 | Chain with master link 5/8x1/4 | 1 |
1 |
1 |
