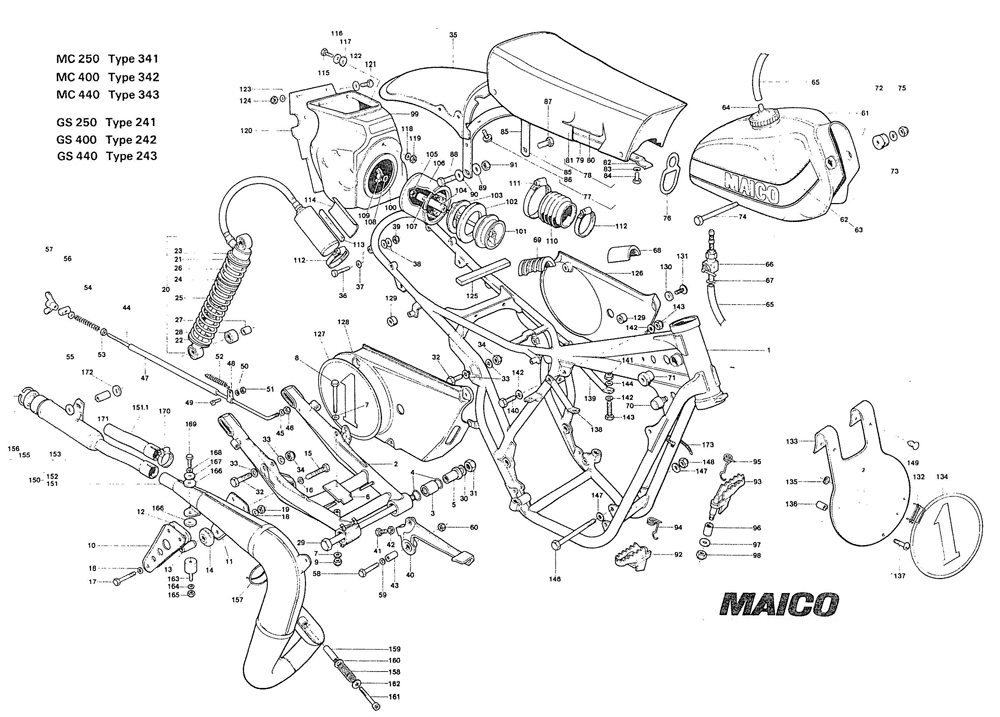

Picture | Part | Description | MC |
MC |
MC |
GS |
GS |
GS |
No. | No. | 250 |
400 |
440 |
250 |
400 |
440 |
|
Quantity |
||||||||
1 | 6198 | Frame cpl | 1 |
1 |
1 |
- |
- |
- |
6360 | Frame cpl | - |
- |
- |
1 |
1 |
1 |
|
2 | 6207 | Swing arm | 1 |
1 |
1 |
- |
- |
- |
6375 | Swing arm | - |
- |
- |
1 |
1 |
1 |
|
3 | 3932 | Needle cage HK 2030 | 2 |
2 |
2 |
2 |
2 |
2 |
4 | 1930 | O ring | 4 |
4 |
4 |
1 |
1 |
1 |
5 | 1931 | Bush for swing arm | 2 |
2 |
2 |
2 |
2 |
2 |
6 | 1932 | Guide plate for swing arm | 2 |
2 |
2 |
2 |
2 |
2 |
7 | 1732 | Washer B 6.4 Din 125 | 2 |
2 |
2 |
2 |
2 |
2 |
8 | 1575 | Hexagon screw M 6x60 Din 931 | 1 |
1 |
1 |
1 |
1 |
1 |
9 | 1690 | Hexagon nut NM 6x60 Din 980 | 1 |
1 |
1 |
1 |
1 |
1 |
10 | 1933 | Chain guide plate right hand | 1 |
1 |
1 |
1 |
1 |
1 |
11 | 1934 | Chain guide plate left hand | 1 |
1 |
1 |
- |
- |
- |
2287 | Chain guide plate left hand | - |
- |
- |
1 |
1 |
1 |
|
12 | 1935 | Plastic plate for chain guide | 2 |
2 |
2 |
2 |
2 |
2 |
13 | 1936 | Spacer bush for chain guide | 3 |
3 |
3 |
3 |
3 |
3 |
14 | 1937 | Roller for chain guide | 2 |
2 |
2 |
2 |
2 |
2 |
15 | 1580 | Hexagon screw M 6x45 Din 933 | 2 |
2 |
2 |
2 |
2 |
2 |
16 | 1704 | Spring ring B 6 Din 127 | 2 |
2 |
2 |
2 |
2 |
2 |
17 | 1500 | Hexagon screw M 6x40 Din 931 | 1 |
1 |
1 |
1 |
1 |
1 |
18 | 1732 | Washer B 6,4 Din 125 | 2 |
2 |
2 |
2 |
2 |
2 |
19 | 1690 | Hexagon nut M 6 Din 980 | 1 |
1 |
1 |
1 |
1 |
1 |
20 | 6141 | Rear shock cpl | 2 |
2 |
2 |
- |
- |
- |
6368 | Rear shock cpl | - |
- |
- |
2 |
2 |
2 |
|
21 | 1942 | Upper spring cup | 1 |
1 |
1 |
- |
- |
- |
6369 | Upper spring cup | - |
- |
- |
1 |
1 |
1 |
|
22 | 1943 | Lower spring cup | 1 |
1 |
1 |
- |
- |
- |
6370 | Lower spring cup | - |
- |
- |
1 |
1 |
1 |
|
23 | 1944 | Circlip SW 40 | 1 |
1 |
1 |
- |
- |
- |
6371 | Circlip | - |
- |
- |
1 |
1 |
1 |
|
24 | 1945 | Guide ring for spring | 1 |
1 |
1 |
- |
- |
- |
6372 | Guide ring for spring | - |
- |
- |
1 |
1 |
1 |
|
25 | 6139 | Spring long | 1 |
1 |
1 |
- |
- |
- |
6373 | Spring long | - |
- |
- |
1 |
1 |
1 |
|
26 | 1947 | Spring short | 1 |
1 |
1 |
- |
- |
- |
6374 | Spring short | - |
- |
- |
1 |
1 |
1 |
|
27 | 1948 | Bush | 2 |
2 |
2 |
- |
- |
- |
28 | 1940 | Silent bloc | 2 |
2 |
2 |
- |
- |
- |
29 | 3937 | Swing arm spindle | 1 |
1 |
1 |
1 |
1 |
1 |
30 | 1718 | Spring washer B 14 Din 137 | 1 |
1 |
1 |
1 |
1 |
1 |
31 | 5011 | Hexagon nut NM 14x1.5 Din 980-8 | 1 |
1 |
1 |
1 |
1 |
1 |
32 | 1594 | Hexagon screw M 8x40 Din 931 | 4 |
4 |
4 |
4 |
4 |
4 |
33 | 1734 | Washer B 8,4 Din 125 | 8 |
8 |
8 |
8 |
8 |
8 |
34 | 1692 | Self locking nut M 8 Din 980 | 4 |
4 |
4 |
4 |
4 |
4 |
35 | 6143 | Rear fender | 1 |
1 |
1 |
- |
- |
- |
6380 | Rear fender | - |
- |
- |
1 |
1 |
1 |
|
36 | 1571 | Hexagon screw M 6x30 Din 931 | 4 |
4 |
4 |
4 |
4 |
4 |
37 | 1732 | Washer B 6,4 Din 125 | 4 |
4 |
4 |
4 |
4 |
4 |
38 | 1750 | Washer 6,4 Din 9021 | 8 |
8 |
8 |
8 |
8 |
8 |
39 | 1690 | Self locking nut NM 6 Din 980 | 4 |
4 |
4 |
4 |
4 |
4 |
40 | 6156 | Front brake lever | 1 |
1 |
1 |
1 |
1 |
1 |
41 | 1570 | Hexagon screw M 6x25 Din 933 | 1 |
1 |
1 |
1 |
1 |
1 |
42 | 1667 | Hexagon nut M 6 Din 934 | 1 |
1 |
1 |
1 |
1 |
1 |
43 | 6158 | Bush for brake lever | 1 |
1 |
1 |
1 |
1 |
1 |
44 | 1977 | Rear brake rod | 1 |
1 |
1 |
1 |
1 |
1 |
45 | 1732 | Washer B 6,4 Din 125 | 1 |
1 |
1 |
1 |
1 |
1 |
46 | 1690 | Self locking nut NM 6 Din 980 | 1 |
1 |
1 |
1 |
1 |
1 |
47 | 406 | Ventilation hose | X |
X |
X |
X |
X |
X |
48 | 237 | Clamp | 1 |
1 |
1 |
1 |
1 |
1 |
49 | 1527 | Cylinder head screw M 4x10 Din 84 | 1 |
1 |
1 |
1 |
1 |
1 |
50 | 1702 | Spring ring B 4 Din 127 | 1 |
1 |
1 |
1 |
1 |
1 |
51 | 1665 | Hexagon nut M 4 Din 934 | 1 |
1 |
1 |
1 |
1 |
1 |
52 | 236 | Extension spring | 1 |
1 |
1 |
1 |
1 |
1 |
53 | 1667 | Hexagon nut M 6 Din 934 | 1 |
1 |
1 |
1 |
1 |
1 |
54 | 242 | Pressure spring | 1 |
1 |
1 |
1 |
1 |
1 |
55 | 1732 | Washer B 6,4 Din 125 | 1 |
1 |
1 |
1 |
1 |
1 |
56 | 244 | Nipple holder | 1 |
1 |
1 |
1 |
1 |
1 |
57 | 243 | Wing nut | 1 |
1 |
1 |
1 |
1 |
1 |
58 | 1500 | Hexagon screw M 6x40 Din 931 | 1 |
1 |
1 |
1 |
1 |
1 |
59 | 1732 | Washer B 6,4 Din 125 | 1 |
1 |
1 |
1 |
1 |
1 |
60 | 1690 | Hexagon nut NM 6 Din 980 | 1 |
1 |
1 |
1 |
1 |
1 |
61 | 6160 | Tank | 1 |
1 |
1 |
- |
- |
- |
6386 | Tank | - |
- |
- |
1 |
1 |
1 |
|
62 | 6161 | Maico emblem, left hand | 1 |
1 |
1 |
1 |
1 |
1 |
63 | 6162 | Maico emblem, right hand | 1 |
1 |
1 |
1 |
1 |
1 |
64 | 2228 | Tank cap | 1 |
1 |
1 |
1 |
1 |
1 |
65 | 406 | Gasoline hose | X |
X |
X |
X |
X |
X |
66 | 2831 | Gasoline tap | 1 |
1 |
1 |
1 |
1 |
1 |
67 | 2832 | Hose clip | 1 |
1 |
1 |
1 |
1 |
1 |
68 | 3527 | Rubber pad for tank | 1 |
1 |
1 |
1 |
1 |
1 |
69 | 3522 | Rubber pad for tank rear | 1 |
1 |
1 |
1 |
1 |
1 |
70 | 3866 | Moulded rubber mount | 2 |
2 |
2 |
2 |
2 |
2 |
71 | 5348 | Bush for tank | 2 |
2 |
2 |
2 |
2 |
2 |
72 | 5344 | Rubber ring for tank | 2 |
2 |
2 |
2 |
2 |
2 |
73 | 1734 | Washer B 8,4 Din 125 | 2 |
2 |
2 |
2 |
2 |
2 |
74 | 1604 | Hexagon screw M 8x90 Din 931 | 1 |
1 |
1 |
1 |
1 |
1 |
75 | 1692 | Self locking nut NM 8 Din 980 | 1 |
1 |
1 |
1 |
1 |
1 |
76 | 3397 | Tension ring | 1 |
1 |
1 |
1 |
1 |
1 |
77 | 5192 | Seat cpl (low) | 1 |
1 |
1 |
1 |
1 |
1 |
5200 | Seat cpl (high) | 1 |
1 |
1 |
1 |
1 |
1 |
|
78 | 5391 | Seal low less pos 85 & 86 | 1 |
1 |
1 |
1 |
1 |
1 |
6392 | Seat cpl high less pos 85 & 86 | 1 |
1 |
1 |
1 |
1 |
1 |
|
79 | 5193 | Seat base | 1 |
1 |
1 |
1 |
1 |
1 |
80 | 5194 | Seat padding (low) | 1 |
1 |
1 |
1 |
1 |
1 |
5199 | Seat padding (high) | 1 |
1 |
1 |
1 |
1 |
1 |
|
81 | 5195 | Seat cover | 1 |
1 |
1 |
1 |
1 |
1 |
82 | 286 | Clamp holder for seat | 1 |
1 |
1 |
1 |
1 |
1 |
83 | 1704 | Spring washer B 6 Din 127 | 2 |
2 |
2 |
2 |
2 |
2 |
84 | 1567 | Hexagon screw M 6x16 Din 933 | 2 |
2 |
2 |
2 |
2 |
2 |
85 | 5197 | Seat bracket | 1 |
1 |
1 |
1 |
1 |
1 |
86 | 1728 | Self locking screw | 4 |
4 |
4 |
4 |
4 |
4 |
87 | 1568 | Hexagon screw M 8x18 Din 933 | 1 |
1 |
1 |
1 |
1 |
1 |
88 | 1592 | Hexagon screw M 8x30 Din 933 | 1 |
1 |
1 |
1 |
1 |
1 |
89 | 1749 | Washer 8,4 Din 9021 | 3 |
3 |
3 |
3 |
3 |
3 |
90 | 1734 | Washer B 8,4 Din 125 | 1 |
1 |
1 |
1 |
1 |
1 |
91 | 1692 | Self locking nut NM 8 Din 980 | 2 |
2 |
2 |
2 |
2 |
2 |
92 | 6228 | Foot rest right hand cpl | 1 |
1 |
1 |
1 |
1 |
1 |
93 | 6234 | Foot rest left hand cpl | 1 |
1 |
1 |
1 |
1 |
1 |
94 | 6237 | Foot rest spring right hand | 1 |
1 |
1 |
1 |
1 |
1 |
95 | 6238 | Foot rest spring left hand | 1 |
1 |
1 |
1 |
1 |
1 |
96 | 6239 | Bush for foot rest | 2 |
2 |
2 |
2 |
2 |
2 |
97 | 6240 | Socket screw M 10x25 Din 6912 | 2 |
2 |
2 |
2 |
2 |
2 |
98 | 1692 | Self locking nut NM 8 Din 980 | 2 |
2 |
2 |
2 |
2 |
2 |
99 | 2258 | Air filter box | 1 |
1 |
1 |
1 |
1 |
1 |
100 | 2485 | Rubber ring for filter box | 1 |
1 |
1 |
1 |
1 |
1 |
101 | 2259 | Flange for air box outside | 1 |
1 |
1 |
1 |
1 |
1 |
102 | 5153 | Foam ring | 1 |
1 |
1 |
1 |
1 |
1 |
103 | 3183 | Flange for air box | 1 |
1 |
1 |
1 |
1 |
1 |
104 | 3184 | Spacer tube | 1 |
1 |
1 |
1 |
1 |
1 |
105 | 1667 | Hexagon nut | 1 |
1 |
1 |
1 |
1 |
1 |
106 | 3181 | Foam filter | 1 |
1 |
1 |
1 |
1 |
1 |
107 | 3164 | Air filter body | 1 |
1 |
1 |
1 |
1 |
1 |
108 | 1750 | Washer 6,4 Din 9021 | 1 |
1 |
1 |
1 |
1 |
1 |
109 | 2260 | Wing nut | 1 |
1 |
1 |
1 |
1 |
1 |
110 | 343 | Rubber sleeve | 1 |
1 |
1 |
1 |
1 |
1 |
111 | 348 | Clamp | 1 |
1 |
1 |
1 |
1 |
1 |
112 | 683 | Clamp | 5 |
5 |
5 |
5 |
5 |
5 |
113 | 5204 | Foam seal | X |
X |
X |
- |
- |
- |
114 | 2261 | Strengthening plate for filter box | 2 |
2 |
2 |
- |
- |
- |
115 | 1569 | Hexagon screw M 6x20 Din 9021 | 1 |
1 |
1 |
1 |
1 |
1 |
116 | 1750 | Washer 6,4 Din 9021 | 1 |
1 |
1 |
1 |
1 |
1 |
117 | 2708 | Rubber washer | 1 |
1 |
1 |
1 |
1 |
1 |
118 | 1732 | Washer B 6,4 Din 125 | 1 |
1 |
1 |
1 |
1 |
1 |
119 | 1690 | Self locking nut NM 6 Din 980 | 1 |
1 |
1 |
1 |
1 |
1 |
120 | 6241 | Splash guard | 1 |
1 |
1 |
- |
- |
- |
6286 | Splash guard | - |
- |
- |
1 |
1 |
1 |
|
121 | 1567 | Hexagon screw M 6x16 Din 933 | 4 |
4 |
4 |
4 |
4 |
4 |
122 | 1750 | Washer 6,4 Din 9021 | 6 |
6 |
6 |
6 |
6 |
6 |
123 | 1732 | Washer B 6,4 Din 125 | 2 |
2 |
2 |
2 |
2 |
2 |
124 | 1690 | Self locking nut NM 6 Din 980 | 4 |
4 |
4 |
4 |
4 |
4 |
125 | 5204 | Foam seal | X |
X |
X |
X |
X |
X |
126 | 2264 | Side panel left side | 1 |
1 |
1 |
1 |
1 |
1 |
127 | 6244 | Number plate transfers green | 2 |
- |
- |
- |
- |
- |
6264 | Number plate transfers yellow | - |
2 |
2 |
2 |
2 |
2 |
|
128 | 6246 | Side panel right side | 1 |
1 |
1 |
1 |
1 |
1 |
129 | 5029 | Spacer washer for side panel | 6 |
6 |
6 |
6 |
6 |
6 |
130 | 2708 | Rubber washer | 6 |
6 |
6 |
6 |
6 |
6 |
131 | 3711 | Plastic screw | 6 |
6 |
6 |
6 |
6 |
6 |
132 | 6247 | Cable guide | 1 |
1 |
1 |
- |
- |
- |
133 | 6251 | Front number plate | 1 |
1 |
1 |
- |
- |
- |
134 | 6252 | Front number plate transfers green | 1 |
- |
- |
- |
- |
- |
6261 | Front number plate transfers Yellow | - |
1 |
1 |
- |
- |
- |
|
135 | 6265 | Spring nut | 2 |
2 |
2 |
- |
- |
- |
136 | 3094 | Sliding rollers | 2 |
2 |
2 |
- |
- |
- |
137 | 6253 | Plastic screw | 2 |
2 |
2 |
- |
- |
- |
138 | 2277 | Cylinder head stay right hand | 1 |
- |
- |
- |
- |
- |
2282 | Cylinder head stay right hand | - |
1 |
1 |
- |
1 |
1 |
|
139 | 2278 | Cylinder head stay left hand | 1 |
- |
- |
1 |
- |
- |
2283 | Cylinder head stay left hand | - |
1 |
1 |
- |
1 |
1 |
|
140 | 1591 | Hexagon screw M 8x25 Din 933 | 1 |
1 |
1 |
1 |
1 |
1 |
141 | 1692 | Self locking nut NM 8 Din 980 | 3 |
3 |
3 |
3 |
3 |
3 |
142 | 1734 | Washer B 8,4 Din 125 | 4 |
4 |
4 |
4 |
4 |
4 |
143 | 1592 | Hexagon screw M 8x30 Din 933 | 2 |
2 |
2 |
2 |
2 |
2 |
144 | 1714 | Spring washer B 8 Din 137 | 2 |
2 |
2 |
2 |
2 |
2 |
145 | 6254 | Set of engine bolts pos 146,147,148 | 1 |
1 |
1 |
1 |
1 |
1 |
146 | 1610 | Hexagon screw M 8x120 Din 931 | 2 |
2 |
2 |
2 |
2 |
2 |
147 | 1734 | Washer B 8,4 Din 125 | 4 |
4 |
4 |
4 |
4 |
4 |
148 | 1700 | Self locking nut NM 8 Din 980 | 2 |
2 |
2 |
2 |
2 |
2 |
149 | 6267 | Plastic clip | 2 |
2 |
2 |
2 |
2 |
2 |
150 | 6274 | Exhaust system cpl | 1 |
- |
- |
- |
- |
- |
6278 | Exhaust system cpl | - |
1 |
1 |
- |
- |
- |
|
6394 | Exhaust system cpl D, GB, I, F, B | - |
- |
- |
1 |
- |
- |
|
6395 | Exhaust system cpl USA | - |
- |
- |
1 |
- |
- |
|
6399 | Exhaust system cpl D, GB, I, F, B | - |
- |
- |
- |
1 |
1 |
|
6400 | Exhaust system cpl USA | - |
- |
- |
- |
1 |
1 |
|
151 | 6272 | Exhaust system, welded | 1 |
- |
- |
- |
- |
- |
6277 | Exhaust system, welded | - |
1 |
1 |
- |
1 |
1 |
|
6390 | Exhaust system, welded D, GB, I, F, B | - |
- |
- |
1 |
- |
- |
|
151.1 | 5651 | Connecting tube for silencer | - |
- |
- |
1 |
- |
- |
5665 | Connecting tube for silencer | - |
- |
- |
- |
1 |
1 |
|
152 | 5466 | Silencer cpl | 1 |
- |
- |
- |
- |
- |
5485 | Silencer cpl | - |
1 |
1 |
- |
- |
- |
|
5656 | Silencer cpl | - |
- |
- |
1 |
1 |
1 |
|
153 | 5465 | Silencer, welded | 1 |
- |
- |
- |
- |
- |
5484 | Silencer, welded | - |
1 |
1 |
- |
- |
- |
|
154 | 5155 | Exhaust padding | - |
1 |
1 |
- |
- |
- |
3557 | Exhaust padding | 1 |
1 |
1 |
- |
- |
- |
|
155 | 5311 | End cap | 1 |
1 |
1 |
- |
- |
- |
156 | 1859 | Retaining ring 60x2 Din 472 | X |
X |
X |
X |
X |
X |
157 | 896 | Asbestos cord | 1 |
1 |
1 |
1 |
1 |
1 |
158 | 6275 | Pressure spring | 1 |
1 |
1 |
1 |
1 |
1 |
159 | 6276 | Spacer tube | 1 |
1 |
1 |
1 |
1 |
1 |
160 | 1750 | Washer 6,4 Din 9021 | 1 |
1 |
1 |
1 |
1 |
1 |
161 | 1523 | Hexagon screw M 8x70 Din 912 | 1 |
1 |
1 |
1 |
1 |
1 |
162 | 1750 | Washer 6,4 Din 9021 | 2 |
2 |
2 |
2 |
2 |
2 |
163 | 1166 | Silent bloc for exhaust | 2 |
2 |
2 |
2 |
2 |
2 |
164 | 1732 | Washer B 6,4 Din 125 | 2 |
2 |
2 |
2 |
2 |
2 |
165 | 1690 | Self locking nut NM 6 Din 980 | 4 |
4 |
4 |
4 |
4 |
4 |
166 | 5430 | Washer | 2 |
2 |
2 |
2 |
2 |
2 |
167 | 1750 | Washer 6,4 Din 9021 | 2 |
2 |
2 |
2 |
2 |
2 |
168 | 1704 | Spring ring B 6 Din 127 | 2 |
2 |
2 |
2 |
2 |
2 |
169 | 1525 | Hexagon screw M 6x14 Din 932 | 1 |
- |
- |
1 |
1 |
1 |
170 | 5429 | Clamp SP 28/15 | - |
1 |
1 |
- |
- |
- |
5474 | Clamp SP 35/15 | - |
1 |
1 |
- |
- |
- |
|
171 | 5453 | Bush for silencer securing bolt | 1 |
1 |
1 |
1 |
1 |
1 |
172 | 5345 | Rubber washer | 2 |
2 |
2 |
2 |
2 |
2 |
173 | 325 | Plastic cable clip | 8 |
8 |
8 |
8 |
8 |
8 |
Copyright © 2008 www.maicoland.com. All rights reserved.
