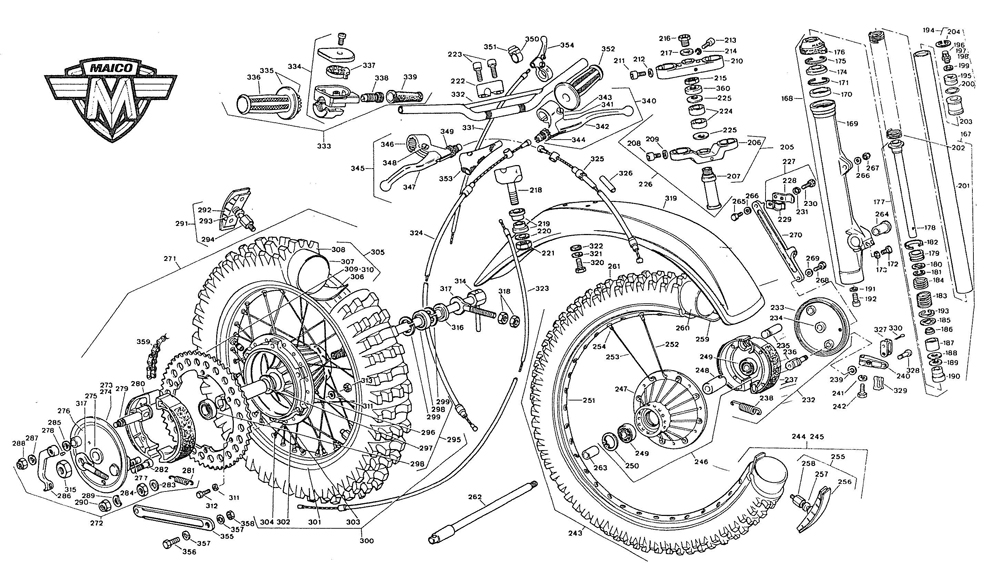

Picture | Part | Description | MC |
MC |
MC |
No. | No. | 250 |
400 |
440 |
|
Quantity |
|||||
167 | 6465 | Fork leg cpl | 2 |
2 |
2 |
168 | 6438 | Fork slider cpl | 2 |
2 |
2 |
169 | 6435 | Fork slider | 2 |
2 |
2 |
170 | 6436 | Guide bush | 2 |
2 |
2 |
171 | 6437 | Circlip SB 46 | 2 |
2 |
2 |
172 | 1571 | Hexagon nut M 6x30 Din 931 | 4 |
4 |
4 |
173 | 1510 | Spring ring B 6 Din 128 | 4 |
4 |
4 |
174 | 6439 | Seal | 2 |
2 |
2 |
175 | 6440 | Circlip SB 55x1.5 | 2 |
2 |
2 |
176 | 6441 | Wiper | 2 |
2 |
2 |
177 | 6451 | Damper cpl | 2 |
2 |
2 |
178 | 6442 | Damper tube | 2 |
2 |
2 |
179 | 6447 | Damper piston | 2 |
2 |
2 |
180 | 6448 | Washer 23.9x28.2x0.9 | 2 |
2 |
2 |
181 | 6449 | Retaining ring SW 24 | 2 |
2 |
2 |
182 | 6450 | Piston ring | 2 |
2 |
2 |
183 | 6452 | Stop spring soft | 2 |
2 |
2 |
184 | 6460 | Stop spring hard | 2 |
2 |
2 |
185 | 6453 | Valve seat | 2 |
2 |
2 |
186 | 6454 | Valve | 2 |
2 |
2 |
187 | 6455 | Damper insert | 2 |
2 |
2 |
188 | 6456 | Washer 29.9x36.7x0.2 | 2 |
2 |
2 |
189 | 6457 | Securing ring 37x1.5 Din 472 | 2 |
2 |
2 |
190 | 6458 | Bush for damper | 2 |
2 |
2 |
191 | 6459 | Seal A 10x15 Din 7603 | 2 |
2 |
2 |
192 | 1655 | Socket screw M 10x25 Din 6912 | 2 |
2 |
2 |
193 | 6461 | Circlip SB 37 | 2 |
2 |
2 |
194 | 6462 | Fork cap cpl | 2 |
2 |
2 |
195 | 6462 | Fork cap | 2 |
2 |
2 |
196 | 2184 | Valve cpl | 2 |
2 |
2 |
197 | 2186 | Valve insert | 2 |
2 |
2 |
198 | 2187 | Valve cap | 2 |
2 |
2 |
199 | 277 | Seal A 8x11.5 Din 7603 | 2 |
2 |
2 |
200 | 6464 | O-ring 29.74x3.53 | 2 |
2 |
2 |
201 | 6466 | Fork tube | 2 |
2 |
2 |
202 | 6467 | Fork spring | 2 |
2 |
2 |
203 | 6468 | Spacer tube | 2 |
2 |
2 |
204 | 6457 | Circlip 37x1.5 Din 472 | 2 |
2 |
2 |
205 | 6489 | Lower cross head cpl | 1 |
1 |
1 |
206 | 6470 | Lower cross head | 1 |
1 |
1 |
207 | 6471 | Steering tube | 1 |
1 |
1 |
208 | 3270 | Socket screw M 10x40 Din 6912 | 2 |
2 |
2 |
209 | 1512 | Spring ring | 2 |
2 |
2 |
210 | 6473 | Upper cross head | 1 |
1 |
1 |
211 | 3270 | Socket screw M 10x40 Din 6912 | 2 |
2 |
2 |
212 | 1512 | Spring ring B 8 Din 128 | 2 |
2 |
2 |
213 | 1648 | Socket screw M 8x40 Din 912 | 1 |
1 |
1 |
214 | 1511 | Spring ring B 8 Din 128 | 1 |
1 |
1 |
215 | 6474 | Steering head nut | 1 |
1 |
1 |
216 | 6475 | Screw plug | 1 |
1 |
1 |
217 | 6476 | Washer B 23 Din 125 | 1 |
1 |
1 |
218 | 6477 | Handlebar clamp low cpl | 2 |
2 |
2 |
219 | 15 | Rubber buffer | 4 |
4 |
4 |
220 | 1735 | Washer B 10.5 Din 125 | 2 |
2 |
2 |
221 | 1693 | Nut M 10 Din 980 | 2 |
2 |
2 |
222 | 6478 | Handle bar clamp lower | 2 |
2 |
2 |
223 | 1628 | Spcket screw M 8x25 Din 6912 | 4 |
4 |
4 |
224 | 3297 | Tapered roller bearing | 2 |
2 |
2 |
225 | 3296 | Nilos ring | 2 |
2 |
2 |
226 | 6472 | Fork cpl | 1 |
1 |
1 |
227 | 6257 | Cable holder cpl | 1 |
1 |
1 |
228 | 6258 | Cable clamp | 1 |
1 |
1 |
229 | 6255 | Cable clamp | 1 |
1 |
1 |
230 | 1565 | Hexagon screw B 6x12 Din 933 | 1 |
1 |
1 |
231 | 1510 | Spring ring B 6 Din 128 | 1 |
1 |
1 |
232 | 6144 | Front brake plate cpl | 1 |
1 |
1 |
233 | 2236 | Front brake plate with bush | 1 |
1 |
1 |
234 | 2238 | Bushing | 1 |
1 |
1 |
235 | 2418 | Pivot bolt | 1 |
1 |
1 |
236 | 2419 | Brake toggle | 1 |
1 |
1 |
237 | 1322 | Brake shoe | 2 |
2 |
2 |
238 | 6148 | Spring for brake shoe | 2 |
2 |
2 |
239 | 187 | Rubber washer | 1 |
1 |
1 |
240 | 6145 | Brake arm front | 1 |
1 |
1 |
241 | 1510 | Spring washer B 6 Din 128 | 1 |
1 |
1 |
242 | 1570 | Hexagon screw M 6x25 Din 933 | 1 |
1 |
1 |
243 | 3146 | Front wheel cpl | 1 |
1 |
1 |
244 | 2240 | Front wheel with tire | 1 |
1 |
1 |
245 | 2235 | Front wheel | 1 |
1 |
1 |
246 | 2234 | Front hub cpl | 1 |
1 |
1 |
247 | 2333 | Front hub | 1 |
1 |
1 |
248 | 2428 | Spacer tube | 1 |
1 |
1 |
249 | 2427 | Ball bearing 6202 | 2 |
2 |
2 |
250 | 1853 | Lock ring 35x1.5 Din 472 | 1 |
1 |
1 |
251 | 3497 | Akront rim | 1 |
1 |
1 |
252 | 3432 | Front spoke right | 18 |
18 |
18 |
253 | 2433 | Front spoke left | 18 |
18 |
18 |
254 | 2242 | Nipple | 36 |
36 |
36 |
255 | 168 | Tire holder front | 1 |
1 |
1 |
256 | 2568 | Tire holder plate cpl | 1 |
1 |
1 |
257 | 1734 | Washer B 8,4 Din 125 | 1 |
1 |
1 |
258 | 289 | Nut for tire holder | 1 |
1 |
1 |
259 | 2001 | Tire flap 21" | 1 |
1 |
1 |
260 | 2002 | Tube 3.00x21" | 1 |
1 |
1 |
261 | 2003 | Tire 3.00x21" | 1 |
1 |
1 |
262 | 2247 | Front axle cpl | 1 |
1 |
1 |
263 | 2250 | Spacer bush | 1 |
1 |
1 |
264 | 2430 | Threaded bush | 1 |
1 |
1 |
265 | 1594 | Hexagon screw M 8x40 Din 931 | 1 |
1 |
1 |
266 | 1734 | Washer B 8,4 Din 125 | 2 |
2 |
2 |
267 | 1692 | Nut NM 8 Din 980 | 1 |
1 |
1 |
268 | 1589 | Hexagon screw M 8x20 Din 933 | 1 |
1 |
1 |
269 | 1714 | Spring washer B 8 Din 137 | 1 |
1 |
1 |
270 | 6147 | Brake stay | 1 |
1 |
1 |
271 | 6290 | Rear wheel cpl | 1 |
1 |
1 |
272 | 3186 | Brake plate cpl | 1 |
1 |
1 |
273 | 3045 | Brake plate with pressed parts | 1 |
1 |
1 |
274 | 3187 | Brake plate only | 2 |
2 |
2 |
275 | 183 | Spacer bush | 1 |
1 |
1 |
276 | 3188 | Cover plate | 1 |
1 |
1 |
277 | 3189 | Pivot bolt | 1 |
1 |
1 |
278 | 1901 | Oval head nail 3x8 Din 1476 | 1 |
1 |
1 |
279 | 151 | Brake toggle cpl | 2 |
2 |
2 |
280 | 188 | Brake shoe | 2 |
2 |
2 |
281 | 1323 | Tension spring | 1 |
1 |
1 |
282 | 3270 | Socket screw M 10x40 Din 6912 | 1 |
1 |
1 |
283 | 1715 | Spring washer B 10 Din 137 | 1 |
1 |
1 |
284 | 1674 | Nut M 10 Din 934 | 1 |
1 |
1 |
285 | 187 | Rubber washer | 1 |
1 |
1 |
286 | 3190 | Rear brake lever | 1 |
1 |
1 |
287 | 1734 | Washer B 8,4 Din 125 | 1 |
1 |
1 |
288 | 1692 | Securing nut NM 8 Din 980 | 1 |
1 |
1 |
289 | 1735 | Washer 10.5 Din 125 | 1 |
1 |
1 |
290 | 1693 | Hexagon nut NM 10 Din 980 | 1 |
1 |
1 |
291 | 2434 | Tire holder rear cpl | 1 |
1 |
1 |
292 | 2567 | Tire holder plate | 1 |
1 |
1 |
293 | 1734 | Washer B 8,4 Din 125 | 1 |
1 |
1 |
294 | 289 | Nut for tire holder | 1 |
1 |
1 |
295 | 3875 | Rear hub cpl | 1 |
1 |
1 |
296 | 3275 | Rear hub | 1 |
1 |
1 |
297 | 3276 | Spacer tube cpl | 1 |
1 |
1 |
298 | 205 | Ball bearing 6303 2 RS C3 | 2 |
2 |
2 |
299 | 1852 | Spring ring 47x1.75 | 2 |
2 |
2 |
300 | 3876 | Reah wheel | 1 |
1 |
1 |
301 | 2405 | Rim strap 18" | 1 |
1 |
1 |
302 | 2406 | Spoke rear right | 18 |
18 |
18 |
303 | 2407 | Spoke rear left | 18 |
18 |
18 |
304 | 2408 | Nipple | 36 |
36 |
36 |
305 | 3343 | Rear wheel + 56 T + tire | 1 |
1 |
1 |
306 | 2005 | Rim strap 18" | 1 |
1 |
1 |
307 | 2015 | Tube 4.50x18 | 1 |
1 |
1 |
308 | 2008 | Tire 4.50x18" | 1 |
1 |
1 |
309 | 3227 | Sprocket 56T | 1 |
1 |
1 |
310 | 2200 | Sprocket 54T | - |
- |
- |
311 | 1713 | Spring washer B 7 Din 137 | 16 |
16 |
16 |
312 | 3270 | Hexagon screw M 7x40 Din 933 | 6 |
6 |
6 |
313 | 1691 | Hexagon nut NM 7 Din 980 | 6 |
6 |
6 |
314 | 3277 | Rear axle cpl | 1 |
1 |
1 |
315 | 1709 | Hexagon nut NM 16x1.5 Din 980 | 1 |
1 |
1 |
316 | 3196 | Spacer ring | 1 |
1 |
1 |
317 | 6287 | Chain adjuster | 2 |
2 |
2 |
318 | 1670 | Nut M 8 Din 934 | 4 |
4 |
4 |
319 | 6493 | Front fender | 1 |
1 |
1 |
320 | 1569 | Hexagonscrew M 6x20 Din 933 | 4 |
4 |
4 |
321 | 1750 | Washer 6,4 Din 9021 | 4 |
4 |
4 |
322 | 2708 | Rubber washer | 4 |
4 |
4 |
323 | 2456 | Throttle cable | 1 |
1 |
1 |
324 | 6150 | Clutch cable | 1 |
1 |
1 |
325 | 6530 | Brake cable | 1 |
1 |
1 |
326 | 2275 | Hose B 8x0.7 Din 40 621 | X |
X |
X |
327 | 6151 | Cable holder | 1 |
1 |
1 |
328 | 6152 | Bolt | 1 |
1 |
1 |
329 | 6153 | Clip for bolt | 1 |
1 |
1 |
330 | 1857 | Split pin 3.2x25 Din 94 | 1 |
1 |
1 |
331 | 315 | Decompressor cable | - |
1 |
1 |
332 | 6498 | Handle bar low | 1 |
1 |
1 |
333 | 6280 | Throttle grip cpl | 1 |
1 |
1 |
334 | 6283 | Throttle housing cpl | 1 |
1 |
1 |
335 | 6282 | Tube with grip | 1 |
1 |
1 |
336 | 2148 | Rubber grip | 1 |
1 |
1 |
337 | 6284 | Cam | 1 |
1 |
1 |
338 | 2211 | Adjusting screw | 1 |
1 |
1 |
339 | 2212 | Rubber cap | 1 |
1 |
1 |
340 | 2215 | Hand clutch lever cpl | 1 |
1 |
1 |
341 | 2213 | Hinge for clutch lever | 1 |
1 |
1 |
342 | 2216 | Clutch lever blade | 1 |
1 |
1 |
343 | 133 | Lever screw | 1 |
1 |
1 |
344 | 212 | Adj. nut | 1 |
1 |
1 |
345 | 2218 | Hand brake lever cpl | 1 |
1 |
1 |
346 | 2217 | Hinge for brake lever | 1 |
1 |
1 |
347 | 2219 | Hand brake lever | 1 |
1 |
1 |
348 | 133 | Lever screw with nut | 1 |
1 |
1 |
349 | 212 | Adj. nut | 1 |
1 |
1 |
350 | 2220 | Kill button | 1 |
1 |
1 |
351 | 2221 | Rubber cap | 1 |
1 |
1 |
352 | 2512 | Rubber grip | 1 |
1 |
1 |
353 | 3166 | Lever cover | 2 |
2 |
2 |
354 | 148 | Lever for decompressor cpl | - |
1 |
1 |
355 | 1978 | Rear brake plate | 1 |
1 |
1 |
356 | 1591 | Hexagon screw M 8x25 Din 933 | 1 |
1 |
1 |
357 | 1734 | Washer B 8,4 Din 125 | 2 |
2 |
2 |
358 | 1692 | Nut NM 8 Din 980 | 1 |
1 |
1 |
359 | 2281 | Chain | 1 |
1 |
1 |
360 | 6480 | Cover tray | 1 |
1 |
1 |
361 | 6532 | Sticker MC 250 | 1 |
- |
- |
3301 | Sticker MC 400 | - |
- |
- |
|
66233 | Sticker MC 440 | - |
- |
1 |
|
The following Part Numbers have been changed as of frame No. | |||||
250 M1 | |||||
346 | 1360 | ||||
400-450 M1 | |||||
347 | 2082 | ||||
Picture | Part # | Description | |||
185 | 6426 | Valve insert | |||
187 | 6427 | Damper insert | |||
193 | 6428 | Circlip | |||
194 | 6429 | Fork cpl | |||
201 | 2433 | Fork tube |
