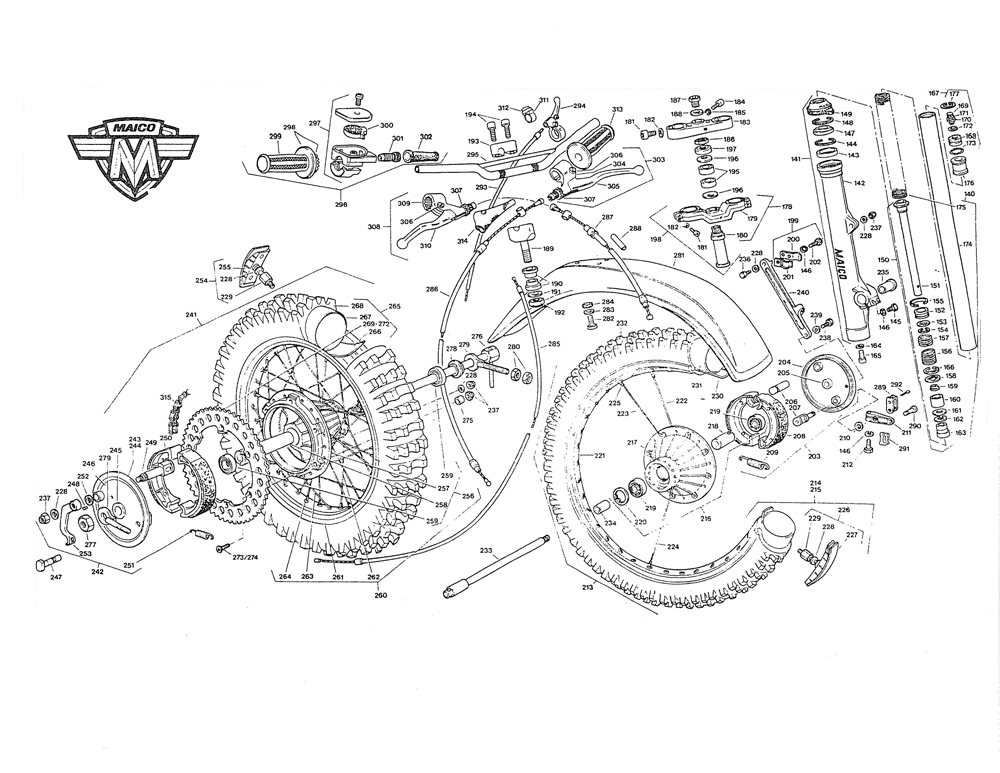

Picture | Part | Description | MC |
MC |
MC |
No. | No. | 250 |
400 |
440 |
|
Quantity |
|||||
140 | 6636 | Fork leg | 2 |
2 |
2 |
141 | 6631 | Fork slider cpl | 2 |
2 |
2 |
142 | 6630 | Fork slider | 2 |
2 |
2 |
143 | 6436 | Guide bush | 2 |
2 |
2 |
144 | 6437 | Circlip SB 46 | 2 |
2 |
2 |
145 | 1571 | Hexagon screw M 6x30 Din 931 | 4 |
4 |
4 |
146 | 1510 | Spring ring B 6 Din 128 | 6 |
6 |
6 |
147 | 6439 | Seal | 2 |
2 |
2 |
148 | 6440 | Circlip SB 55x1.5 | 2 |
2 |
2 |
149 | 6441 | Wiper | 2 |
2 |
2 |
150 | 6635 | Damper cpl | 2 |
2 |
2 |
151 | 6632 | Damper tube | 2 |
2 |
2 |
152 | 6447 | Damper piston | 2 |
2 |
2 |
153 | 6448 | Washer 23.9x28.2x0.9 | 2 |
2 |
2 |
154 | 6449 | Circlip SW 24 | 2 |
2 |
2 |
155 | 6450 | Piston ring | 2 |
2 |
2 |
156 | 6452 | Stop spring soft | 2 |
2 |
2 |
157 | 6460 | Stop spring hard | 2 |
2 |
2 |
158 | 6426 | Valve seat | 2 |
2 |
2 |
159 | 6454 | Valve | 2 |
2 |
2 |
160 | 6427 | Damper insert | 2 |
2 |
2 |
161 | 6456 | Washer 29.9x36.7x0.2 | 2 |
2 |
2 |
162 | 6457 | Securing ring 37x1.5 Din 472 | 2 |
2 |
2 |
163 | 6458 | Bush for damper | 2 |
2 |
2 |
164 | 6459 | Seal ring A 10x15 Din 7603 | 2 |
2 |
2 |
165 | 1655 | Socket screw M 10x25 Din 6912 | 2 |
2 |
2 |
166 | 6428 | Circlip SB 38 | 2 |
2 |
2 |
167 | 6429 | Fork cap cpl | 2 |
2 |
2 |
168 | 6431 | Fork cap | 2 |
2 |
2 |
169 | 2184 | Valve cpl | 2 |
2 |
2 |
170 | 2186 | Valve insert | 2 |
2 |
2 |
171 | 2187 | Valve cap | 2 |
2 |
2 |
172 | 277 | Seal ring A 8x11.5 Din 7603 | 2 |
2 |
2 |
173 | 6464 | O-ring 29.74x3.53 | 2 |
2 |
2 |
174 | 6637 | Fork tube | 2 |
2 |
2 |
175 | 6629 | Fork spring | 2 |
2 |
2 |
176 | 6628 | Spacer tube | 2 |
2 |
2 |
177 | 6457 | Securing ring 37x1.5 Din 472 | 2 |
2 |
2 |
178 | 6639 | Lower cross head cpl | 1 |
1 |
1 |
179 | 6640 | Lower cross head | 1 |
1 |
1 |
180 | 6471 | Steering tube | 1 |
1 |
1 |
181 | 3270 | Socket screw M 10x40 Din 6912 | 4 |
4 |
4 |
182 | 1512 | Spring ring B 10 Din 128 | 4 |
4 |
4 |
183 | 6473 | Upper cross head | 1 |
1 |
1 |
184 | 1648 | Socket screw M 8x40 Din 912 | 1 |
1 |
1 |
185 | 1511 | Spring ring B 8 Din 128 | 1 |
1 |
1 |
186 | 6474 | Steering head nut | 1 |
1 |
1 |
187 | 6475 | Screw plug | 1 |
1 |
1 |
188 | 6476 | Washer B 23 Din 125 | 1 |
1 |
1 |
189 | 6477 | Handle bar clamp lower | 2 |
2 |
2 |
190 | 15 | Rubber buffer | 4 |
4 |
4 |
191 | 6642 | Washer | 2 |
2 |
2 |
192 | 1693 | Nut NM 10 Din 980 | 2 |
2 |
2 |
193 | 6478 | Upper handle bar clamp | 2 |
2 |
2 |
194 | 1628 | Socket screw M 8x25 Din 6912 | 4 |
4 |
4 |
195 | 3297 | Tapered roller bearing | 2 |
2 |
2 |
196 | 3296 | Nilos ring | 2 |
2 |
2 |
197 | 6480 | Cover tray | 1 |
1 |
1 |
198 | 6641 | Fork cpl | 1 |
1 |
1 |
199 | 6257 | Cable holder cpl | 1 |
1 |
1 |
200 | 6258 | Cable clamp | 1 |
1 |
1 |
201 | 6255 | Cable clamp | 1 |
1 |
1 |
202 | 1565 | Hexagon screw M 6x12 Din 933 | 1 |
1 |
1 |
203 | 6144 | Front brake plate cpl | 1 |
1 |
1 |
204 | 2236 | Front brake plate with bush | 1 |
1 |
1 |
205 | 2238 | Bushing | 1 |
1 |
1 |
206 | 2418 | Pivot bolt | 1 |
1 |
1 |
207 | 2419 | Brake toggle | 1 |
1 |
1 |
208 | 1322 | Brake shoe | 2 |
2 |
2 |
209 | 6148 | Spring for brake shoe | 2 |
2 |
2 |
210 | 187 | Rubber washer | 1 |
1 |
1 |
211 | 6145 | Brake arm front | 1 |
1 |
1 |
212 | 1570 | Hexagon screw M 6x25 Din 933 | 1 |
1 |
1 |
213 | 6678 | Front wheel cpl | 1 |
1 |
1 |
214 | 6677 | Front wheel with tire | 1 |
1 |
1 |
215 | 6672 | Front wheel | 1 |
1 |
1 |
216 | 6671 | Front hub cpl | 1 |
1 |
1 |
217 | 6670 | Front hub | 1 |
1 |
1 |
218 | 2428 | Spacer tube | 1 |
1 |
1 |
219 | 2427 | Ball bearing 6202 RS Din 625 | 2 |
2 |
2 |
220 | 1853 | Securing ring 37x1.5 Din 472 | 1 |
1 |
1 |
221 | 6673 | Akront rim 21" | 1 |
1 |
1 |
222 | 6674 | Front spoke M 4x227 - 80 | 9 |
9 |
9 |
223 | 6675 | Front spoke M 4x227 - 100 | 9 |
9 |
9 |
224 | 6676 | Front spoke M 4x227 - 115 | 18 |
18 |
18 |
225 | 2242 | Nipple 4.5 M 4 | 36 |
36 |
36 |
226 | 168 | Tire holder front cpl | 1 |
1 |
1 |
227 | 2568 | Tire holder plate | 1 |
1 |
1 |
228 | 1734 | Washer B 8,4 Din 125 | 8 |
8 |
8 |
229 | 289 | Nut for tire holder | 2 |
2 |
2 |
230 | 2002 | Rim strap 21" | 1 |
1 |
1 |
231 | 2001 | Tube 3.00x21" | 1 |
1 |
1 |
232 | 2003 | Tire 3.00x21" | 1 |
1 |
1 |
233 | 2247 | Front axle | 1 |
1 |
1 |
234 | 2250 | Spacer bush | 1 |
1 |
1 |
235 | 2430 | Threaded bush | 1 |
1 |
1 |
236 | 1594 | Hexagon screw M 8x40 Din 931 | 1 |
1 |
1 |
237 | 1692 | Nut NM 8 Din 980 | 8 |
8 |
8 |
238 | 1589 | Hexagon screw M 8x20 Din 933 | 2 |
2 |
2 |
239 | 1714 | Spring washer B 8 Din 137 | 1 |
1 |
1 |
240 | 6147 | Brake stay | 1 |
1 |
1 |
241 | 6691 | Rear wheel cpl | 1 |
1 |
1 |
242 | 6711 | Brake plate cpl | 1 |
1 |
1 |
243 | 6707 | Brake plate with pressed parts | 1 |
1 |
1 |
244 | 6708 | Brake plate | 1 |
1 |
1 |
245 | 183 | Spacer bush | 2 |
2 |
2 |
246 | 6709 | Cover plate | 1 |
1 |
1 |
247 | 6710 | Pivot bolt | 1 |
1 |
1 |
248 | 1901 | Oval head nail 3x8 Din 1476 | 1 |
1 |
1 |
249 | 151 | Brake toggle | 1 |
1 |
1 |
250 | 188 | Brake shoe | 2 |
2 |
2 |
251 | 6148 | Tension spring | 2 |
2 |
2 |
252 | 187 | Rubber washer | 1 |
1 |
1 |
253 | 3190 | Rear brake lever | 1 |
1 |
1 |
254 | 2434 | Tire holder rear cpl | 1 |
1 |
1 |
255 | 2567 | Tire holder plate | 1 |
1 |
1 |
256 | 6684 | Rear hub cpl | 1 |
1 |
1 |
257 | 6689 | Rear hub | 1 |
1 |
1 |
258 | 3276 | Spacer tube | 1 |
1 |
1 |
259 | 205 | Ball bearing 6303 2 RS C 3 | 2 |
2 |
2 |
260 | 6685 | Rear wheel | 1 |
1 |
1 |
261 | 6686 | Akront rim 18" | 1 |
1 |
1 |
262 | 6687 | Spoke rear M 4.5x209 | 18 |
18 |
18 |
263 | 6688 | Spoke rear M 4.5x163 | 18 |
18 |
18 |
264 | 2408 | Nipple M 4.5 | 36 |
36 |
36 |
265 | 6690 | Rear wheel with tire | 1 |
1 |
1 |
266 | 2005 | Rim strap 18" | 1 |
1 |
1 |
267 | 2015 | Tire 4.50x18" | 1 |
1 |
1 |
268 | 2008 | Tube 4.50x18 | 1 |
1 |
1 |
269 | 6692 | Sprocket 50t | nB |
nB |
nB |
270 | 6693 | Sprocket 52T | nB |
nB |
nB |
271 | 6694 | Sprocket 54T | nB |
nB |
nB |
272 | 6695 | Sprocket 56T | nB |
nB |
nB |
273 | 1880 | Rear sprocket bolt M 8x50 Din 7991 | 3 |
3 |
3 |
274 | 1803 | Rear sprocket bolt M 8x40 Din 7991 | 3 |
3 |
3 |
275 | 6696 | Bush for sprocket bolt | 3 |
3 |
3 |
276 | 3277 | Rear axle | 1 |
1 |
1 |
277 | 1709 | Securing ring NM 16x1.5 Din 933 | 1 |
1 |
1 |
278 | 3196 | Spacer ring | 1 |
1 |
1 |
279 | 6705 | Chain adjuster | 2 |
2 |
2 |
280 | 1670 | Nut M 8 Din 934 | 4 |
4 |
4 |
281 | 6493 | Front fender | 1 |
1 |
1 |
282 | 1569 | Hecagon screw M 6x20 Din 933 | 4 |
4 |
4 |
283 | 1750 | Washer 6.4 Din 9021 | 4 |
4 |
4 |
284 | 2708 | Rubber washer | 4 |
4 |
4 |
285 | 2456 | Throttle cable | 1 |
1 |
1 |
286 | 6150 | Clutch cable cpl | 1 |
1 |
1 |
287 | 6650 | Brake cable | 1 |
1 |
1 |
288 | 2275 | Hose B 8x0.7 Din 40621 | X |
X |
X |
289 | 6151 | Cable holder | 1 |
1 |
1 |
290 | 6152 | Bolt | 1 |
1 |
1 |
291 | 6153 | Clip for bolt | 1 |
1 |
1 |
292 | 1857 | Splint pin 3,2x25 Din 94 | 1 |
1 |
1 |
293 | 315 | Decompressor cable | - |
1 |
1 |
294 | 148 | Lever for decompressor | - |
1 |
1 |
295 | 6668 | Handle bar | 1 |
1 |
1 |
296 | 6280 | Throttle grip cpl | 1 |
1 |
1 |
299 | 2148 | Rubber grip | 1 |
1 |
1 |
301 | 2211 | Adjusting screw | 1 |
1 |
1 |
302 | 2212 | Rubber cap | 1 |
1 |
1 |
303 | 2215 | Hand clutch lever cpl | 1 |
1 |
1 |
304 | 2213 | Hinge for clutch lever | 1 |
1 |
1 |
305 | 2216 | clutch lever blade | 1 |
1 |
1 |
306 | 133 | Lever screw with nut | 2 |
2 |
2 |
307 | 212 | Adjusting screw with nut | 2 |
2 |
2 |
308 | 2218 | Hand brake lever cpl | 1 |
1 |
1 |
309 | 2217 | Hinge for brake lever | 1 |
1 |
1 |
310 | 2219 | hand brake lever | 1 |
1 |
1 |
311 | 2220 | Kill button | 1 |
1 |
1 |
313 | 2512 | Rubber grip | 1 |
1 |
1 |
314 | 2204 | Lever cover red | 2 |
2 |
2 |
315 | 6744 | Chain adjuster | 1 |
1 |
1 |
X = | Yard goods | ||||
nB = | as needed |
