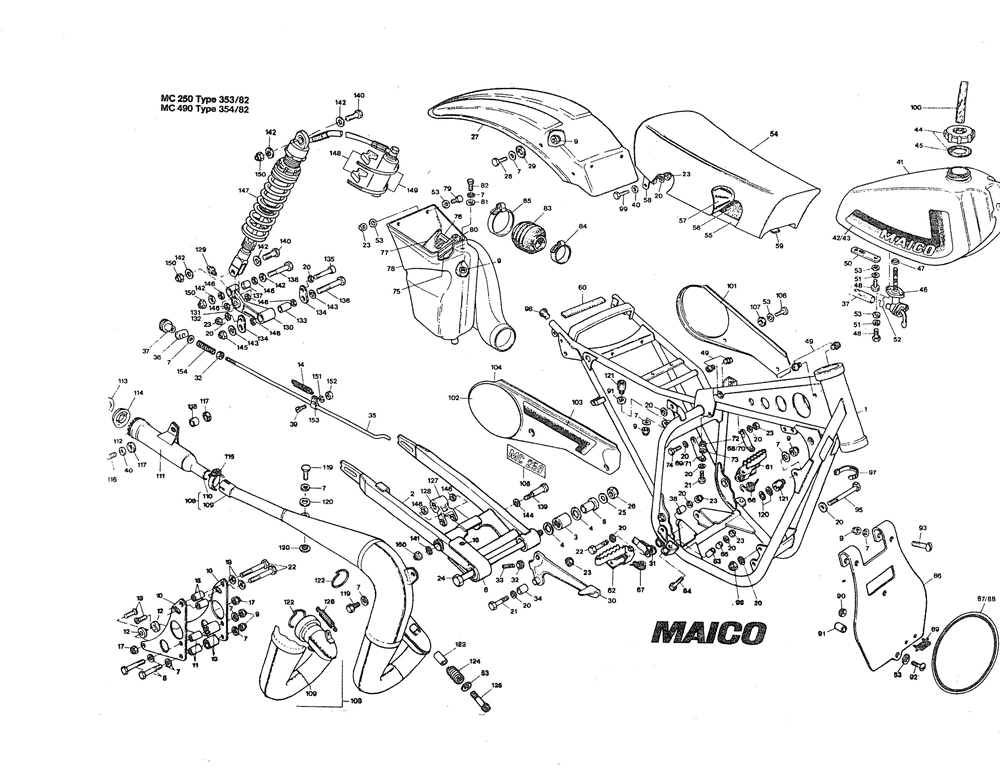

Picture | Part | Description | MC |
MC |
No. | No. | 250 |
400 |
|
1 | 7400 | Frame cpl | 1 |
1 |
2 | 7413 | Rear swing arm | 1 |
1 |
3 | 3932 | Needle cage HK 2030 | 2 |
2 |
4 | 1930 | O ring | 2 |
2 |
5 | 1931 | Bush for swing arm | 2 |
2 |
6 | 7560 | Guide plate for swing arm | 1 |
1 |
7 | 1732 | Washer B 6.4 Din 125 | 31 |
31 |
8 | 1500 | Hexagon screw M 6x60 Din 931 | 2 |
2 |
9 | 1690 | Hexagfon nut NM 6 Din 980 | 12 |
12 |
10 | 7555 | Chain guide plate right hand | 2 |
2 |
11 | 7557 | Spacer tube for chain guide | 2 |
2 |
12 | 7559 | Shim | 2 |
2 |
13 | 7556 | Bush for roller | 2 |
2 |
14 | 236 | Tension spring | 1 |
1 |
15 | 7558 | Spacer for chain quide | 2 |
2 |
16 | 1514 | Screw M 6x10 Din 963 | 2 |
2 |
17 | 1689 | Securing nut NM 5 Din 980 | 2 |
2 |
18 | 1513 | Screw M 5x16 Din 963 | 2 |
2 |
19 | 1705 | Spring ring B 4 Din 127 | 2 |
2 |
20 | 1734 | Washer B 8,4 Din 125 | 2 |
2 |
21 | 1594 | Hexagon screw M 8x40 Din 931 | 19 |
19 |
22 | 1595 | Hexagon screw M 8x45 Din 931 | 5 |
5 |
23 | 1692 | Securing nut NM 8 Din 980 | 2 |
2 |
24 | 3937 | Axle for rear swing arm | 6 |
6 |
25 | 1718 | Spring washer B 14 Din 137 | 1 |
1 |
26 | 5011 | Securing nut NM 14 Din 137 | 1 |
1 |
27 | 6669 | Rear fender | 1 |
1 |
28 | 1568 | Hexagon screw M 6x18 Din 933 | 4 |
4 |
29 | 2706 | Rubber washer | 4 |
4 |
30 | 7531 | Foot brake lever cpl | 1 |
1 |
31 | 7527 | Brake stay cpl | 1 |
1 |
32 | 1667 | Hexagon nut M 6 Din 934 | 1 |
1 |
33 | 1508 | Screw M 6x20 Din 934 | 1 |
1 |
34 | 7535 | Bush | 1 |
1 |
35 | 7536 | Rear brake rod | 1 |
1 |
36 | 7537 | Rear arm spindle | 1 |
1 |
37 | 7538 | Adjusting nut | 1 |
1 |
38 | 7539 | Bush long | 1 |
1 |
39 | 1527 | Zylinderschraube M 4x10 Din 84 | 1 |
1 |
40 | 1759 | Washer B 8,4 Din 125 | 4 |
4 |
41 | 7590 | Tank with decal | 1 |
1 |
42 | 7591 | Tank decal left | 1 |
1 |
43 | 7592 | Tank decal right | 1 |
1 |
44 | 6515 | Tank cap cpl | 1 |
1 |
45 | 6516 | Sealing ring | 1 |
1 |
46 | 6509 | Pet cock | 1 |
1 |
47 | 6510 | O-ring | 1 |
1 |
48 | 1525 | Hexagon screw M 6x14 Din 933 | 4 |
4 |
49 | 6531 | Rubber stop | 4 |
4 |
50 | 6511 | Holding plate for tank | 1 |
1 |
51 | 1704 | Spring ring B 4 Din 127 | 4 |
4 |
52 | 2832 | Clamp | 2 |
2 |
53 | 1750 | Washer B 6,4 Din 9021 | 12 |
13 |
54 | 6723 | Seat cpl (low) | 1 |
1 |
6726 | Seat cpl (high) | - |
- |
|
55 | - | Seat base | 1 |
1 |
56 | 6724 | Seat cover (low) | 1 |
1 |
6727 | Seat cover (high) | - |
- |
|
57 | 6725 | Seat cover (low) | 1 |
1 |
6728 | Seat cover (high) | - |
- |
|
58 | 6721 | Seat brackets | 1 |
1 |
59 | 6722 | Clamp | 1 |
1 |
60 | 6759 | Rubber band | X |
X |
61 | 6731 | Foot rest left cpl | 1 |
1 |
62 | 6735 | Foot rest cpl right | 1 |
1 |
63 | 6738 | Bush | 2 |
2 |
64 | 1597 | Hexagon screw M 8x55 Din 931 | 2 |
2 |
65 | 6750 | Spacer bush | 2 |
2 |
66 | 6730 | Foot rest spring, left | 1 |
1 |
67 | 6740 | Foot rest spring, right | 1 |
1 |
68 | 6741 | Cylinder head stay left | 1 |
- |
69 | 6742 | Cylinder head stay right | 1 |
- |
70 | 6660 | Cylinder head stay left | - |
1 |
71 | 6661 | Cylinder head stay right | - |
1 |
72 | 78 | Hexagon nut M 8, 14mm | 2 |
2 |
73 | 1511 | Spring ring B 4 Din 128 | 2 |
2 |
74 | 1589 | Hexagon screw M 8x20 Din 933 | 2 |
2 |
75 | 7437 | Holding wire | 1 |
1 |
76 | 7435 | Filter cage | 1 |
1 |
77 | 7436 | Filter foam | 1 |
1 |
78 | 7438 | Air box | 1 |
1 |
79 | 1569 | Hexagon screw M 6x29 Din 933 | 2 |
2 |
80 | 7442 | Hook | 2 |
2 |
81 | 3529 | Washer | 2 |
2 |
82 | 1570 | Hexagon screw M 6x20 Din 933 | 2 |
2 |
83 | 343 | Intake manifold | 1 |
1 |
84 | 683 | Clamp | 1 |
1 |
85 | 348 | Clamp | 1 |
1 |
86 | 7444 | Front number plate | 1 |
1 |
87 | 6252 | Front decal, green | 1 |
- |
88 | 6261 | Front decal, yellow | - |
1 |
89 | 6247 | Cable guide cpl | 1 |
1 |
90 | 6265 | Spring nut | 2 |
2 |
91 | 3094 | Sliding roller | 2 |
2 |
92 | 6253 | Plastic screw M 6x30 | 2 |
2 |
93 | 3711 | Plastic screw M 6x22 | 2 |
2 |
94 | 6254 | Set motormount bolts, consisting of | 2 |
2 |
Position 2x95, 2x96, 4x20 | ||||
95 | 1610 | Hexagon screw M 8x120 Din 931 | 2 |
2 |
96 | 1700 | Securing nut NM 8-10 Din 980 | 8 |
8 |
97 | 325 | Rubber cable clip | 2 |
2 |
98 | 6565 | Rubber plug | 8 |
8 |
99 | 1587 | Hexagon screw M 8x16 Din 933 | 2 |
2 |
100 | 406 | Hose | 2 |
2 |
101 | 7446 | Side panel, left | X |
X |
102 | 4153 | Green decal | 2 |
- |
4152 | Yellow decal | - |
2 |
|
7447 | Decal, left | 1 |
1 |
|
103 | 7448 | Decal right | 1 |
1 |
104 | 7450 | Side panel right | 1 |
1 |
105 | 6747 | Sticker 250 | 1 |
- |
6755 | Sticker 490 | - |
1 |
|
106 | 5050 | Oval head screw M 6x16 Din 7985 | 4 |
4 |
107 | 2708 | Rubber washer | 4 |
4 |
108 | 7603 | Exhaust system cpl | 1 |
- |
7638 | Exhaust system cpl | - |
1 |
|
109 | 7600 | Exhaust system | 1 |
- |
7635 | Exhaust system | - |
1 |
|
110 | 6862 | Silencer, cpl | 1 |
- |
7637 | Silencer, cpl | - |
1 |
|
111 | 6863 | Silencer | 1 |
- |
7636 | Silencer | - |
1 |
|
112 | 6864 | Exhaust packing | 1 |
- |
6851 | Exhaust packing | - |
1 |
|
113 | 1884 | Securing ring 70x2.5 Din 472 | 1 |
1 |
114 | 6852 | Silencer end cap | 1 |
1 |
115 | 5474 | Clamp 35/15 | 1 |
1 |
116 | 1591 | Hexagon screw M 8x25 Din 933 | 1 |
1 |
117 | 5345 | Rubber washer | 2 |
2 |
118 | 5453 | Bush for silencer mount | 1 |
1 |
119 | 1567 | Hexagon screw M 6x16 Din 933 | 2 |
2 |
120 | 5430 | Washer | 4 |
4 |
121 | 1166 | Silentbloc | 2 |
2 |
122 | 896 | Asbestos cord | X |
X |
123 | 6276 | Guide bush | - |
1 |
124 | 6275 | Spring | - |
1 |
125 | 1523 | Inner hexagon screw M 6x70 Din 912 | - |
1 |
126 | 6866 | Tension spring | 2 |
- |
127 | 7422 | Hinge fork, cpl | 1 |
1 |
128 | 7424 | Bush | 2 |
2 |
129 | 1915 | Grease nipple M 6x3.5 Din 972 | 3 |
3 |
130 | 7425 | Hinge lever, cpl | 1 |
1 |
131 | 7424 | Bush | 4 |
4 |
132 | 7427 | Hinge bearing | 4 |
4 |
133 | 7248 | Spacer bush | 4 |
4 |
134 | 7429 | Clip | 2 |
2 |
135 | 1517 | Inner hexagon screw M 8x75 Din 912 | 1 |
1 |
136 | 7430 | Screw | 1 |
1 |
137 | 7432 | Bush | 1 |
1 |
138 | 7431 | Hinge bolt | 1 |
1 |
139 | 7545 | Bolt | 1 |
1 |
140 | 7546 | Damper bolt | 2 |
2 |
141 | 7547 | Washer | 1 |
1 |
142 | 1737 | Washer B 13 Din 125 | 6 |
6 |
143 | 7548 | Washer | 2 |
2 |
144 | 7549 | Washer | 1 |
1 |
145 | 1694 | Securing nut NM 10x1 Din 980 | 5 |
5 |
146 | 7550 | Securing ring | 6 |
6 |
147 | 7561 | Damper, cpl | 1 |
1 |
148 | 7562 | Rubber support | 2 |
2 |
149 | 85 | Clamp | 2 |
2 |
150 | 1727 | Securing nut NM 12x1.5 Din 980 | 4 |
4 |
151 | 1702 | Spring ring B 4 Din 127 | 1 |
1 |
152 | 1665 | Hexagon nut M 4 Din 934 | 1 |
1 |
153 | 237 | Clamp | 1 |
1 |
154 | 242 | Spring | 1 |
1 |
