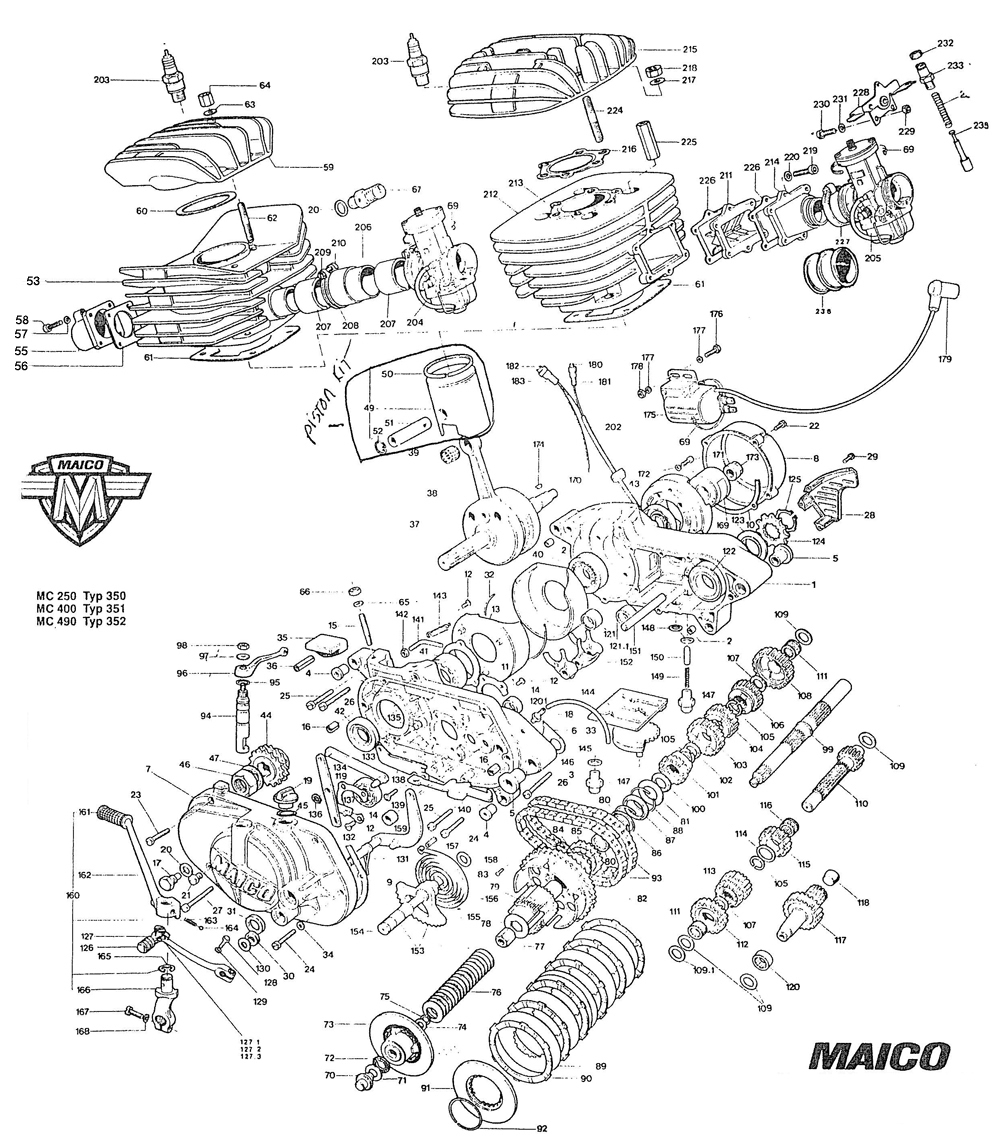

Picture | Part | Description | MC |
MC |
MC |
No. | No. | 250 |
400 |
490 |
|
1 | 6782 | Crankcase right hand | 1 |
1 |
1 |
2 | 1997 | Internal ring | 2 |
2 |
2 |
3 | 6784 | Crankcase left hand | 1 |
1 |
1 |
4 | 1995 | Emgine mounting bushes | 4 |
4 |
4 |
5 | 1994 | Spacer bush for swing arm | 2 |
2 |
2 |
6 | 1993 | Crankcase gasket | 1 |
1 |
1 |
7 | 2140 | Crankcase cover | 1 |
1 |
1 |
8 | 1991 | Ignition cover | 1 |
1 |
1 |
9 | 1990 | Crankcase cover gasket left hand | 1 |
1 |
1 |
10 | 1989 | Crankcase cover gasker right hand | 1 |
1 |
1 |
11 | 1988 | Main bearing cover plate | 1 |
1 |
1 |
12 | 1795 | Counter sunk screw M 5x8 Din 965 | 11 |
11 |
11 |
13 | 1987 | Crankshaft housing | 2 |
- |
- |
14 | 1986 | MS bearing cover plate | 2 |
2 |
2 |
15 | 1787 | Stud screw M 8x28 Din 940 | 4 |
4 |
4 |
16 | 1831 | Tension pin 8x10 Din 7346 | 2 |
2 |
2 |
17 | 895 | Oil drain plug | 1 |
1 |
1 |
18 | 1985 | Breather | 1 |
1 |
1 |
19 | 1984 | Oil filling plug | 1 |
1 |
1 |
20 | 410 | Spacer ring A14x18 Din 84 | 1 |
2 |
2 |
21 | 1526 | Cylinder head screw M 8x10 Din 84 | 1 |
1 |
1 |
22 | 1536 | Cylinder head screw M 6x25 Din 84 | 4 |
4 |
4 |
23 | 1550 | Cylinder head screw M 6x30 Din 84 | 3 |
3 |
3 |
24 | 1538 | Cylinder head screw M 6x35 Din 84 | 5 |
5 |
5 |
25 | 1539 | Cylinder head screw M 6x40 Din 84 | 6 |
6 |
6 |
26 | 1541 | Cylinder head screw M 6x50 Din 84 | 1 |
1 |
1 |
27 | 1542 | Cylinder head screw M 6x55 Din 84 | 3 |
3 |
3 |
28 | 1983 | Counter sprocket cover | 1 |
1 |
1 |
29 | 1533 | Cylinder head screw M 6x18 Din 84 | 3 |
3 |
3 |
30 | 1865 | Sealing ring AS 12x22x7 Din 3760 | 1 |
1 |
1 |
31 | 1866 | Sealing ring A 18x28x7 | 1 |
1 |
1 |
32 | 1313 | Spring rubber 4-280 long | X |
- |
- |
33 | 263 | Breather tube 4x1.5 | X |
X |
X |
34 | 407 | Flat washer A 6x10 Din 7603 | 2 |
2 |
2 |
35 | 2133 | Sliding piece | 1 |
1 |
1 |
36 | 1815 | Tension pin 8x36 Din 7346 | 1 |
1 |
1 |
37 | 3225 | Crankcase cpl | 1 |
- |
- |
3258 | Crankcase cpl | - |
1 |
1 |
|
4131 | Crankshaft part exchange | 1 |
- |
- |
|
4132 | Crankshaft part exchange | - |
1 |
1 |
|
38 | 4162 | Connecting rod cpl | - |
1 |
1 |
4163 | Connecting rod cpl | 1 |
- |
- |
|
39 | 424 | Needle bearing Red 0-2 | - |
1 |
1 |
Needle bearing Blue 2-4 | 1 |
- |
- |
||
Needle bearing White 4-6 | 1 |
1 |
1 |
||
40 | 426 | Roller bearing NU 305 C3 Din 5412 | 1 |
1 |
1 |
41 | 693 | Ball bearing 3305 C3 Din 628 | 1 |
1 |
1 |
42 | 547 | Sealing ring | 1 |
1 |
1 |
43 | 3469 | Sealing ring | 1 |
1 |
1 |
44 | 6826 | Sprocket for crankshaft | 1 |
- |
- |
6827 | Sprocket for crankshaft | - |
1 |
1 |
|
45 | 1891 | Sealing ring for oil filling plug | - |
1 |
1 |
46 | 3240 | Guide nut on crankshaft | 1 |
1 |
1 |
47 | 3254 | Securing plate | 1 |
1 |
1 |
49 | 6918 | Piston std. 66.95 | 1 |
- |
- |
6920 | Piston 1st oversize 67.15 | 1 |
- |
- |
|
6921 | Piston 2nd oversize 67.35 | 1 |
- |
- |
|
6922 | Piston 3rd oversize 67.55 | 1 |
- |
- |
|
6923 | Piston 4th oversize 67.75 | 1 |
- |
- |
|
6929 | Piston 5th oversize 67.90 | 1 |
- |
- |
|
532 | Piston std. 76.93 | - |
1 |
- |
|
2467 | Piston 1st oversize 77.14 | - |
1 |
- |
|
2468 | Piston 2nd oversize 77.34 | - |
1 |
- |
|
2072 | Piston 3rd oversize 77.74 | - |
1 |
- |
|
2470 | Piston 4th oversize 77.94 | - |
1 |
- |
|
2471 | Piston 5th oversize 78.14 | - |
1 |
- |
|
6813 | Piston std. 86.44 | - |
- |
1 |
|
3815 | Piston 1st oversize 86.64 | - |
- |
1 |
|
3816 | Piston 2nd oversize 86.84 | - |
- |
1 |
|
3817 | Piston 3rd oversize 87.04 | - |
- |
1 |
|
6818 | Piston 4th oversize 87.24 | - |
- |
1 |
|
6819 | Piston 5th oversize 87.44 | - |
- |
1 |
|
50 | 6819 | Piston ring std. 67.00 | 1 |
- |
- |
6924 | Piston ring 1st oversize 67.20 | 1 |
- |
- |
|
6925 | Piston ring 2nd oversize 67.40 | 1 |
- |
- |
|
2067 | Piston ring 3rd oversize 67.60 | 1 |
- |
- |
|
6927 | Piston ring 4th oversize 67.80 | 1 |
- |
- |
|
6929 | Piston ring 5th oversize 68.00 | 1 |
- |
- |
|
534 | Piston ring 77.00 | - |
1 |
- |
|
2436 | Piston ring 1st oversize 77.20 | - |
1 |
- |
|
2437 | Piston ring 2nd oversize 77.40 | - |
1 |
- |
|
2079 | Piston ring 3rd oversize 77.60 | - |
1 |
- |
|
2439 | Piston ring 4th oversize 77.80 | - |
1 |
- |
|
2440 | Piston ring 5th oversize 78.00 | - |
1 |
- |
|
6814 | Piston ring LD Std. 86.5 | - |
- |
1 |
|
6820 | Piston ring 1st oversize 86.7 | - |
- |
1 |
|
6621 | Piston ring 2nd oversize 86.9 | - |
- |
1 |
|
6822 | Piston ring 3rd oversize 87.1 | - |
- |
1 |
|
6823 | Piston ring 4th oversize 87.3 | - |
- |
1 |
|
6824 | Piston ring 5th oversize 87.5 | - |
- |
1 |
|
51 | 535 | Piston pin | 1 |
- |
1 |
537 | Piston pin | - |
1 |
- |
|
52 | 536 | Circlip | 2 |
2 |
2 |
53 | 6891 | Radial cylinder cpl MC | - |
1 |
- |
6938 | Radial cylinder cpl MC | - |
- |
1 |
|
54 | 2159 | Cylinder liner | - |
1 |
- |
6940 | Cylinder liner | - |
- |
1 |
|
55 | 6983 | Exhaust flange MC | - |
1 |
1 |
56 | 298 | Gasket for exhaust flange | - |
1 |
1 |
57 | 1704 | Spring ring B 6 Din 127 | - |
4 |
4 |
58 | 1635 | Socket screw M 6x25 Din 912 | - |
4 |
4 |
59 | 6584 | Cylinder head | - |
1 |
- |
6941 | Cylinder head | - |
- |
1 |
|
60 | 720 | Cylinder head gasket | - |
1 |
- |
6942 | Cylinder head gasket | - |
- |
1 |
|
61 | 6793 | Cylinder base gasket 0.3 thick | As needed |
||
6794 | Cylinder base gasket 0.5 thick | As needed |
|||
6795 | Cylinder base gasket 0.7 thick | As needed |
|||
62 | 2968 | Cylinder head stud | - |
5 |
5 |
63 | 1745 | Washer B 8.2x20x1.8 | - |
5 |
5 |
64 | 78 | Hexagon nut | - |
5 |
5 |
65 | 1714 | Spring washer B 8 Din 137 | - |
4 |
4 |
66 | 1670 | Hexagon nut M 8 Din 934 | - |
4 |
4 |
67 | 517 | Decompression valve cpl | - |
1 |
1 |
68 | |||||
69 | 6760 | Rubber cable clip | 2 |
2 |
2 |
70 | 5720 | Push pin | 1 |
1 |
1 |
71 | 1096 | Bearing plate | 1 |
1 |
1 |
72 | 1084 | Needle cage | 1 |
1 |
1 |
73 | 5718 | Guide for clutch disc | 1 |
1 |
1 |
74 | 2890 | Washer 10.1x18.2x0.6 | 1 |
1 |
1 |
75 | 1842 | Securing ring | 1 |
1 |
1 |
76 | 449 | Cup spring | 18 |
18 |
18 |
77 | 448 | Guide nut | 1 |
1 |
1 |
78 | 447 | Lock plate for guide nut | 1 |
1 |
1 |
79 | 2580 | Clutch body | 1 |
1 |
1 |
80 | 736 | Needle cage | 2 |
2 |
2 |
81 | 444 | Thrust washer | 1 |
1 |
1 |
82 | 6800 | Clutch housing with kickstarter ratchet wheel | 1 |
- |
- |
6900 | Clutch housing with kickstarter ratchet wheel | - |
1 |
1 |
|
83 | 1905 | Oval head rivet 4x10 Din 662 | 8 |
8 |
8 |
84 | 729 | Kickstarter ratchet wheel | 1 |
1 |
1 |
85 | 730 | Kickstarter pinion | 1 |
1 |
1 |
86 | 731 | Ratchet spring | 1 |
1 |
1 |
87 | 5592 | Spring cup | 1 |
1 |
1 |
88 | 5593 | Circlip | 1 |
1 |
1 |
89 | 3390 | Inner disc | 6 |
6 |
6 |
90 | 3396 | Clutch disc | 6 |
6 |
6 |
91 | 5721 | Terminal disc | 1 |
1 |
1 |
92 | 461 | Circlip | 2 |
2 |
2 |
93 | 6803 | Primary chain | 1 |
1 |
1 |
94 | 462 | Clutch spindle | 1 |
1 |
1 |
95 | 464 | Sealing ring for clutch spindle | 1 |
1 |
1 |
96 | 2898 | Clutch lever | 1 |
1 |
1 |
97 | 1732 | Washer B 6.4 Din 125 | 1 |
1 |
1 |
98 | 1690 | Hexagon nut NM 6 Din 980 | 1 |
1 |
1 |
99 | 2025 | Main shaft | 1 |
1 |
1 |
100 | 2043 | M S shim | 1 |
1 |
1 |
101 | 3441 | 1st gear pinion on mainshaft 19 teeth | 1 |
- |
- |
3449 | 1st gear pinion on mainshaft 17 teeth | - |
1 |
1 |
|
102 | 3706 | Spacer ring | 1 |
1 |
1 |
103 | 3435 | 4th gear pinion on mainshaft 26 teeth | 1 |
1 |
1 |
104 | 3434 | 3th gear pinion on mainshaft 24 teeth | 1 |
- |
- |
3967 | 3th gear pinion on mainshaft 23 teeth | - |
1 |
1 |
|
105 | 492 | Circlip | 3 |
3 |
3 |
106 | 3440 | 2nd gear pinion on mainshaft 21 teeth | 1 |
- |
- |
3448 | 2nd gear pinion on mainshaft 20 teeth | - |
1 |
1 |
|
107 | 3723 | Shim for 1st gear | 2 |
2 |
2 |
108 | 2039 | 5th gear pinion on mainshaft 28 teeth | 1 |
1 |
1 |
109 | 3893 | Spacer washer | 5 |
5 |
5 |
109.1 | 3201 | Shim 0.8mm | 1 |
1 |
1 |
110 | 5597 | Layshaft (MT 1) | 1 |
1 |
1 |
111 | 913 | Needle cage K 16x21x10 | 2 |
2 |
2 |
112 | 3438 | 1st gear pinion on layshaft 26 teeth | 1 |
- |
- |
3446 | 1st gear pinion on layshaft 28 teeth | - |
1 |
1 |
|
113 | 3442 | Twin block pinion on layshaft 19/21 teeth | 1 |
1 |
1 |
114 | 3456 | Shim for 2nd gear | 1 |
1 |
1 |
115 | 3439 | 2nd gear pinion on layshaft 23 teeth | 1 |
- |
- |
3447 | 2nd gear pinion on layshaft 24 teeth | - |
1 |
1 |
|
116 | 3757 | Needle cagte K 20x24x12 | 1 |
1 |
1 |
117 | 2037 | Drive shaft 28 teeth | 1 |
1 |
1 |
118 | 2238 | Plug | 1 |
1 |
1 |
119 | 339 | Ball bearing 6303 CS Din 625 | 1 |
1 |
1 |
120 | 513 | Needle bearing HK 1612 | 2 |
2 |
2 |
120.1 | 5596 | Layshaft bearing left hand | 1 |
1 |
1 |
121 | 514 | Needle bearing BK 1616 | 2 |
2 |
2 |
121.1 | 5598 | Layshaft bearing right hand | 1 |
1 |
1 |
122 | 375 | Ball bearing 6206 2RS C3 Din 625 | 1 |
1 |
1 |
123 | 2044 | Spacer ring | 1 |
1 |
1 |
124 | 3465 | Sprocket 13 teeth | - |
1 |
1 |
3720 | Sprocket 14 teeth | 1 |
- |
- |
|
125 | 1848 | Lock ring 29x1.5 Din 471 | 1 |
1 |
1 |
126 | 6530 | Rubber pad | 1 |
1 |
1 |
127 | 6585 | Gear change lever | 1 |
1 |
1 |
127.1 | 6787 | Lever | 1 |
1 |
1 |
127.3 | 6588 | Spring | 1 |
1 |
1 |
128 | 1570 | Hexagon screw M 6x25 Din 933 | 1 |
1 |
1 |
129 | 1726 | Spring washer B 6 Din 137 | 1 |
1 |
1 |
130 | 2324 | Washer 12.1x26.2x1 | 1 |
1 |
1 |
131 | 573 | Return spring | 1 |
1 |
1 |
132 | 6591 | Gear change crank | 1 |
1 |
1 |
133 | 2336 | Pullrod | 1 |
1 |
1 |
134 | 2374 | Pullrod pivot arm | 1 |
1 |
1 |
135 | 1903 | Pivot arm A 8x20 Din 1469 | 1 |
1 |
1 |
136 | 1836 | Securing ring 8x0.8 Din 471 | 1 |
1 |
1 |
137 | 2376 | Hooked ratchet sliding arm | 1 |
1 |
1 |
138 | 2508 | Guide plate | 1 |
1 |
1 |
139 | 1795 | Countersunk screw 5x8 Din 965 | 2 |
2 |
2 |
140 | 2510 | Hooked ratchet "T" | 1 |
1 |
1 |
141 | 2388 | Hook | 1 |
1 |
1 |
142 | 1667 | Hexagon nut M 6 Din 934 | 1 |
1 |
1 |
143 | 576 | Tension spring for hooked ratchet | 1 |
1 |
1 |
144 | 3406 | Shifting plate cpl | 1 |
1 |
1 |
145 | 3402 | Shifting segment | 1 |
1 |
1 |
146 | 2397 | Shim 10.6x18.2x1 | 1 |
1 |
1 |
147 | 2393 | Guide screw | 2 |
2 |
2 |
148 | 410 | Sealing ring A 14x18 | 1 |
1 |
1 |
149 | 2695 | Tension spring | 2 |
2 |
2 |
150 | 2396 | Pawl pin | 1 |
1 |
1 |
151 | 2399 | Gear selection fork spindle | 1 |
1 |
1 |
152 | 3414 | Gear selection fork | 1 |
1 |
1 |
153 | 2566 | Kickstarter spindle cpl | 3 |
3 |
3 |
154 | 2559 | Kickstarter spindle | 1 |
1 |
1 |
155 | 761 | Kickstarter Quardrant | 1 |
1 |
1 |
156 | 666 | Return spring | 1 |
1 |
1 |
157 | 1828 | Tension bush 5x26 Din 1481 | 1 |
1 |
1 |
158 | 1753 | Shim 12.2x30.2x0.5 | 1 |
1 |
1 |
159 | 3353 | Internal ring | 1 |
1 |
1 |
160 | 5035 | Kickstarter lever cpl | 1 |
1 |
1 |
161 | 656 | Rubber pad | 1 |
1 |
1 |
162 | 5033 | Kickstarter lever | 1 |
1 |
1 |
163 | 1874 | Compress spring for kickstarter | 1 |
1 |
1 |
164 | 3867 | Ball 0 7 | 1 |
1 |
1 |
165 | 1840 | Lock washer RS | 1 |
1 |
1 |
166 | 5034 | Kickstarter joint | 1 |
1 |
1 |
167 | 1570 | Hexagon screw M 6x25 Din 933 | 1 |
1 |
1 |
168 | 1704 | Spring ring B 6 | 1 |
1 |
1 |
169 | 3598 | Motoplat Ignition cpl | 1 |
1 |
1 |
170 | 3530 | Rubber sleeve | 1 |
1 |
1 |
171 | 1630 | Socket screw M 5x16 Din 912 | 3 |
3 |
3 |
172 | 1731 | Shim B 5.3 Din 125 | 3 |
3 |
3 |
173 | 1123 | Nut for generator | 1 |
1 |
1 |
174 | 1881 | Woodruff key 3x3.7 Din 6888 | 1 |
1 |
1 |
175 | 3600 | Ignition coil Motoplat | 1 |
1 |
1 |
176 | 1567 | Hexagon screw M 6x16 Din 933 | 2 |
2 |
2 |
177 | 1732 | Shim B 6.4 Din 125 | 4 |
4 |
4 |
178 | 1690 | Hexagon nut NM 6 Din 980 | 2 |
2 |
2 |
179 | 3610 | Cable plug | 1 |
1 |
1 |
180 | 3576 | Connector 6,3-1 Din 46247 | 1 |
1 |
1 |
181 | 3596 | Connector housing 6,3 | 1 |
1 |
1 |
182 | 3595 | Connector 9,5-6 Din 46247 | 1 |
1 |
1 |
183 | 3597 | Connector housing 9,5 | 1 |
1 |
1 |
202 | 2607 | Wire housing B 0 3x0,4 Din 40621 | X |
X |
X |
203 | 603 | Spark plug Champion N 2 | 1 |
1 |
1 |
204 | 6355 | Carburetor cpl Bing V54/40/404/11 | - |
1 |
- |
6904 | Carburetor cpl Bing V54/40/106/11 | - |
- |
1 |
|
205 | 3905 | Carburetor cpl Bing V54/38/111/11 | 1 |
- |
- |
206 | 3753 | Intake flange | - |
1 |
1 |
207 | 5342 | Bush | - |
1 |
1 |
208 | 5334 | Clamp | - |
1 |
1 |
209 | 620 | Screw | - |
1 |
1 |
210 | 621 | Nut | - |
1 |
1 |
211 | 6796 | Reed valve cpl | 1 |
- |
- |
212 | 6788 | Cylinder 250 cpl | 1 |
- |
- |
213 | 6789 | Cylinder liner 0 67 | 1 |
- |
- |
214 | 6666 | Intake flange | 1 |
- |
- |
215 | 6791 | Cylinder head 250 | 1 |
- |
- |
216 | 6792 | Cylinder head gasket | 1 |
- |
- |
217 | 1734 | Wash B 8,4 Din 125 | 6 |
- |
- |
218 | 1670 | Hexagon nut M 8 Din 934 | 10 |
- |
- |
219 | 1635 | Socket screw M 6x25 Din 912 | 6 |
- |
- |
220 | 1510 | Washer B 6.4 Din 128 | 6 |
- |
- |
224 | 2967 | Culinder head stud | 6 |
- |
- |
225 | 6787 | Nut | 2 |
- |
- |
226 | 6810 | Intake gasket | 2 |
- |
- |
227 | 683 | Clamp | 1 |
- |
- |
228 | 6912 | choke lever | 1 |
- |
- |
229 | 6914 | Nut | 2 |
- |
- |
230 | 3913 | Screw | 2 |
- |
- |
231 | 1509 | Washer | 2 |
- |
- |
232 | 6911 | Rubber cap | 1 |
- |
- |
233 | 6910 | Choke housing | 1 |
||
234 | 6909 | Spring | 1 |
||
235 | 6908 | Choke piston | 1 |
||
236 | 3143 | Intake manifold | 1 |
1 |
1 |
Copyright © 2008 www.maicoland.com. All rights reserved.
