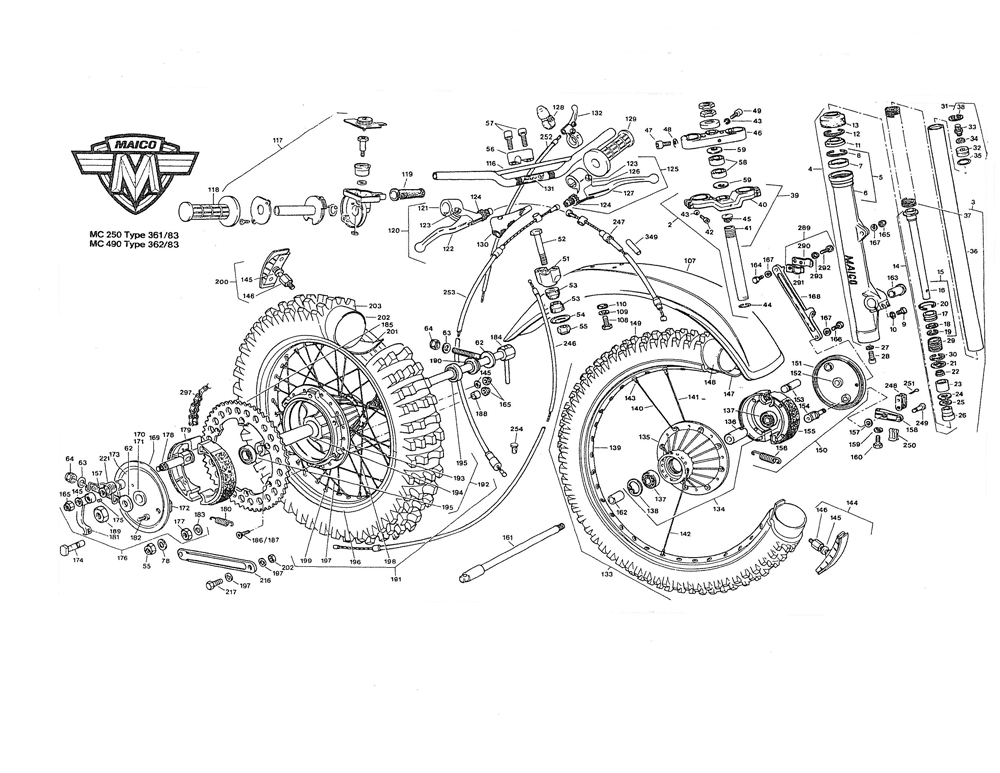

Picture Part Description
MC
MC
No. No.
250
490
1 7995 Frame
1
1
2 7472 Telescopic fork cpl
1
1
3 7480 Forg leg cpl
2
2
4 6631 Fork slider cpl
2
2
5 6626 Fork slider with bush
2
2
6 6630 Fork slider only
2
2
7 6436 Guide bush
2
2
8 6437 Circlip
2
2
9 1571 Hexagon screw M 6x30 Din 931
4
4
10 1510 Spring ring B 6 Din 128
4
4
11 6439 Sealing ring for fork
2
2
12 6440 Circlip SB 55x1.5
2
2
13 6828 Fork wiper
2
2
14 7478 Damper cpl
2
2
15 7477 Damper tube cpl
2
2
16 7475 Damper tube soldered
2
2
17 6447 Damper piston
2
2
18 6448 Washer 23.9x28.2x0.9
2
2
19 6449 Circlip SW 24
2
2
20 6450 Piston ring
2
2
21 6426 Valve seat
2
2
22 6454 Valve
2
2
23 6427 Damper insert
2
2
24 6456 Washer 29.9x36.7x.0.2
2
2
25 6457 Securing sing 37x1.5
2
2
26 6458 Bush for damper tube
2
2
27 6459 Sealing ring A 10x15 Din 7603
2
2
28 1655 Inner hexagon screw M 10x25
2
2
29 7479 Counter spring
2
2
30 6428 Circlip SB 38
2
2
31 6429 Plug
2
2
32 6431 Plug
2
2
33 2184 Calve cpl
2
2
34 277 Sealing ring A 8x11.5
2
2
35 6464 O-ring 29.74x3.53
2
2
36 6637 Main tube
2
2
37 7481 Fork spring
2
2
38 6457 Securing ring 37x15 Din 472
2
2
39 7473 Lower cross head cpl
1
1
40 6640 Lower cross head
1
1
41 7483 Steering tube
1
1
42 1649 Inner hexagon screw M 8x45 Din 912
4
4
43 1511 Spring ring B 6 Din 128
5
5
44 7484 Circlip SW 27
1
1
45 7490 Plastic
1
1
46 7474 Upper cross head
1
1
47 3270 Inner hexagon screw M 10x40
2
2
48 1512 Spring ring B 10 Din 128
2
2
49 1648 Inner hexagon screw M 8x40
1
1
50 6474 Steering head nut
2
2
7618 Steering head nut
nB
nB
51 74 Lower hander bar clamp
2
2
52 1619 Hexagon screw M 10x55
2
2
53 6806 Rubber buffer
4
4
54 6642 Washer
2
2
55 1693 Securing nut NM 10 Din 980
2
2
56 6478 Upper hander bar clamp
2
2
57 1629 Inner hexagon screw M 8x30
4
4
58 3297 Roller bearing
2
2
59 3296 Nilos bearing
2
2
60 6480 Cover plate
1
1
61 7840 Rear wheel swing arm
1
1
62 7841 Chain tensioner
2
2
63 1734 Washer B 8.4 Din 125
4
4
64 1692 Securing nut NM 8 Din 980
3
3
65 7844 Joint fork cpl
1
1
66 7845 Joint fork
1
1
67 7846 Bush
2
2
68 7847 Bush
2
2
69 7848 Toggle arm cpl
1
1
70 7849 Toggle arm
1
1
71 7424 Bush
4
4
72 7850 Nipple
2
2
73 7427 Hinge bearing
1
1
74 1465 Pin M 5x4
1
1
74a 6065 O-ring 12.37x2.62
2
2
75 7851 Bush
2
2
76 7852 Screw
2
2
77 7853 Sealing ring
4
4
78 1735 Washer B 10.5 Din 125
4
4
79 1694 Securing nut NM 10x1 Din 980
4
4
80 7854 Bolt
1
1
81 7432 Bush
1
1
82 1737 Washer B 13 Din 125
8
8
83 7550 Sealing ring
4
4
84 7546 Bolt
1
1
85 1727 Securing nut NM 12x1.5 Din 980
2
2
86 7855 Bolt
1
1
87 7856 Bolt
1
1
88 7857 Spacer Bush
1
1
89 7858 Supporting loop
2
2
90 1598 Hexagon screw M 8x60 Din 931
1
1
91 7864 Spacer tube
1
1
92 7859 Chain guide for 56/54 teeth
1
1
7860 Chain guide for 52/50 teeth
nB
nB
93 1573 Hexagon screw M 6x50 Din 931
1
1
94 1732 Washer B 6,4 Din 125
1
1
95 1690 Securing nut NM 6 Din 980
1
1
96 7861 Protection plate
1
1
97 1514 Countersunk screw M 6x10 Din 963
2
2
98 7862 Rear wheel swing arm with bearings
1
1
99 3932 Needle bush HK 2030
2
2
100 1930 O-ring
4
4
101 1931 Bush for rear swing arm
2
2
102 7863 Plug
2
2
103 3937 Spindle
1
1
104 1718 Spring washer B 14 Din 137
1
1
105 5011 Securing nut NM 14x1.5 Din 980
1
1
106 7865 Damper cpl
nB
nB
7866 Damper cpl
nB
nB
107 7895 Front fender
1
1
108 1569 M 6x20 Din 933
4
4
109 1750 Washer 6.4 Din 9021
4
4
110 2708 Rubber washer
4
4
111 7896 Rear fender
1
1
112 1568 Hexagon screw M 6x18
4
4
113 1732 Washer B 6.4 Din 125
8
8
114 2708 Rubber washer
4
4
115 1690 Securing nut NM 6 Din 980
4
4
116 6668 Handle bar
1
1
117 7898 Throtle grip cpl
1
1
118 7893 Grip cover
1
1
119 2212 Rubber cap
1
1
120 2215 Clutch lever cpl
1
1
121 2213 Hinge for clutch lever
1
1
122 2216 Clutch lever
1
1
123 133 Lever screw with nut
2
2
124 212 Adjusting screw with nut
1
1
125 2218 Brake lever cpl
1
1
126 2217 Hinge of brake lever
1
1
127 2219 Hand brake lever only
1
1
128 2220 Kill button
1
1
129 7892 Rubber grip
1
1
130 7891 Lever cover
2
2
131 6698 Sticker
1
1
132 7889 Lever for decompressor
-
1
7890 Nipple
-
1
133 7955 Front wheel only
1
1
134 6671 Front wheel hub with bearing
1
1
135 6670 Front wheel hub only
1
1
136 2428 Spacer tube for front wheelhub
1
1
137 2427 Ball bearing 6202 RS Din 625
2
2
138 1853 Securing ring 35x1.5 Din 472
2
2
139 7956 Rim 21"
1
1
140 7957 Spoke 4x3.5x4x230-80º
9
9
141 7958 Spoke 4x3.5x4x230-100º
9
9
142 6859 Spoke 4x3.5x4x244-155º
18
18
143 2408 Nipple M 4.5
36
36
144 7960 Tire holder cpl with nut and washer
1
1
145 1734 Washer B 8.4 Din 125
6
6
146 289 Nut for tire holder
2
2
147 2001 Tire flap 21"
1
1
148 2002 Hose 3.00-21"
1
1
149 2003 Tire 3.00x21" Gel. Deck
nB
nB
7962 Tire 3.00x21" Pirelli
nB
nB
7963 Tire 3.00x21" Sand cross
nB
nB
7964 Tire 3.00x21" Sand cross
nB
nB
150 6144 Brake plate cpl
1
1
151 2236 Brake plate only with bush
1
1
152 2238 Bushin
1
1
153 2418 Pivot bolt
1
1
154 2419 Brake toggle
1
1
155 1322 Brake shoe
2
2
156 6148 Spring for brake shoe
2
2
157 187 Rubber washer
1
1
158 6145 Brake lever front
1
1
159 1704 Spring ring B 6 Din 127
1
1
160 1570 Hexagon screw M 6x25 Din 933
1
1
161 2247 Front axle
1
1
162 2250 Spacer bush
1
1
163 2430 Bush
1
1
164 1594 Hexagon screw M 8x40 Din 931
1
1
165 1692 Securing nut NM 8 Din 980
8
8
166 1589 Hexagon screw M 8x20 Din 933
1
1
167 1714 Washer 8.2x20x1.0
3
3
168 6147 Brake stay front
1
1
169 7900 Brake plate
1
1
170 7901 Spacer bush for brake plate
1
1
171 183 Spacer bush for brake plate
1
1
172 3187 Brake plate rear only
1
1
173 3188 Cover plate
1
1
174 3189 Pivot bolt
1
1
175 1901 Oval head nail #x8 Din 1476
1
1
176 7902 Brake plate cpl
1
1
177 1674 Hexagon nut M 10 Din 934
1
1
178 151 Brake toggle
1
1
179 188 Brake shoe
2
2
180 1323 Tension spring
2
2
181 3190 Brake lever for rear hub
1
1
182 3270 Inner hexagon screw M 10x40x32
1
1
183 1715 Spring washer B 10 Din 137
1
1
184 7903 Rear axle
1
1
185 7522 Sprocket 52 Z
1
1
7521 Sprocket 54 Z
nB
nB
7523 Sprocket 50 Z
nB
nB
7514 Sprocket 56 Z
nB
nB
186 1880 Countersunk screw with inner hexagon M 8x50
3
3
187 1803 Countersunk screw with inner hexagon M 8x40
3
3
188 6696 Spacer bush
3
3
189 8486 Securing nut NM 16x1.5 Din 980
1
1
190 7907 Spacer part
1
1
191 7897 Rear wheel only
1
1
192 6684 Rear wheel hub cpl
1
1
193 6689 Rear wheel hub only
1
1
194 6684 Rear wheel hub cpl
1
1
195 205 Ball bearing 6202 2 RS 3
2
2
196 196 Rim 18"
1
1
197 7397 Spoke ED 4.5x4x163
18
18
198 7398 Spoke ED 4.5x4x209
18
18
199 2408 Nipple
36
36
200 7909 Tire holder cpl with nut and washer
1
1
201 2005 Tire flap 18"
1
1
202 2015 Hose 4.50x18"
1
1
203 2008 Tire 4.5x18"
1
1
7923 Tire 4.5x18" Pirelli
nB
nB
7965 Tire 4.5x18" Sand green
nB
nB
7966 Tire 4.5x18" Sand green
nB
nB
204 7910 Front brake lever
1
1
205 7915 Front brake lever cpl
1
1
206 1667 Hexagon nut M 6 Din 934
1
1
207 7916 Hexagon screw M 6x30 Din 933
1
1
208 6702 Bush for brake lever
1
1
209 7917 M 8x100 Din 931
1
1
210 1734 Washer B 8.4 Din 125
2
2
211 7991 Roller bearing
1
1
212 7996 Spacer washer
1
1
213 7993 Ball bearing 608 2 RS Din 625
2
2
214 7992 Spacer bush
1
1
215 1692 Securing nut NM 8 Din 980
2
2
216 1978 Brake axle rear
1
1
217 7921 Hexagon screw M 8x60 Din 933
1
1
218 7936 Rear brake rod for rear brake
1
1
219 243 Nut
1
1
220 244 Nipple holder
1
1
221 7922 Brake lever spring
1
1
222 406 Hose 7x2
X
X
223 7924 Tank with decal
1
1
224 6508 Tank
1
1
225 7927 Tank decal left
1
1
226 7928 Tank decal right
1
1
227 6515 Tank cap cpl
1
1
228 6516 Cover gasket
1
1
229 6517 Hose
1
1
230 6509 Gas tap
1
1
231 6510 O-ring
1
1
232 1525 Hexagon screw M 6x14 Din 933
4
4
233 6531 Rubber buffer
4
4
234 7994 Holding plate
1
1
235 1704 Spring ring B 6 Din 127
4
4
236 406 Hose 7x2
X
X
237 2832 Hose clamp
2
2
238 1750 Washer B 6,4 Din 9021
2
2
239 7941 Seatr base with clamp and bracket
1
1
240 6717 Seat base only
1
1
241 6718 Seat bracket
1
1
242 6751 Clamp holder
1
1
243 7942 Seat cpl low
1
1
7945 Seat cpl high
nB
nB
244 7943 Seat padding low
1
1
7946 Seat padding high
nB
nB
245 7944 Seat cover low
1
1
7947 Seat cover high
nB
nB
246 7954 Gas throttle
1
1
247 7598 Brake cable
1
1
248 6151 Brake cable intake
1
1
249 6152 Bolt for head
1
1
250 6153 Clip for bolt
1
1
251 1857 Split pin 3.2x25 Din 94
1
1
252 315 Decompressor cable
-
1
253 7938 Clutch cable
1
1
254 7951 Nipple holder
1
1
255 6731 Foot rest left
1
1
256 6735 Foot rest right
1
1
257 6738 Bearing bush
2
2
258 1598 Hexagon screw M 8x60 Din 931
3
3
259 1692 Securing nut NM 8 Din 980
8
8
260 1754 Washer B 8.4 Din 125
20
20
261 6750 Spacer bush
2
2
262 6739 Foot rest spring left
1
1
263 6740 Foot rest spring right
1
1
264 7949 Supporting plate for cylinder head
2
-
7935 Supporting plate for cylinder head
-
2
265 1598 Hexagon screw M 8x60 Din 931
3
3
266 7969 Air filter box
1
1
267 7968 Clamp
1
1
268 7434 Filter element cpl
1
1
269 7435 Filter cage
1
1
270 7436 Aif filter foam
1
1
271 7437 Holding wire cpl
1
1
273 7973 Intake flange
2
2
274 683 Clamp
1
1
275 7451 Clamp
1
1
276 7948 Splash guard
1
1
277 1569 Hexagon screw M 6x20 Din 933
2
2
278 1570 Hexagon screw M 6x25 Din 933
2
2
279 1732 Washer B 6.4 Din 125
4
4
280 1750 Washer B 6.4 Din 933
10
10
281 1690 Securing nut NM 6 Din 980
6
6
282 7444 Front number plate
1
1
283 7975 Front decal green
1
-
7983 Front decal yellow
-
1
284 6247 Guide plate
1
1
285 6265 Spring nut
2
2
286 3094 Sliding roller
2
2
287 6253 Plastic screw
2
2
288 3711 Plastic screw M 6x22
2
2
289 6257 Brake cable holder cpl.
1
1
290 6258 Brake cable holder
1
1
291 6255 Clamp Plate
1
1
292 1565 Hexagon screw M 6x12 Din 933
1
1
293 1704 Spring ring B 6 Din 127
1
1
294 6254 Set motormount bolts
1
1
295 1610 Hexagon screw M 8x120 Din 931
2
2
296 1700 Securing nut NM 8 Din 980
2
2
297 3708 Chain with lock 1/4" 118
1
1
298 325 Rubber cable clip
8
8
299 323 Identification plate
1
1
300 1900 Oval head nail 2x4 Din 1476
2
2
301 6565 Rubber cap
2
2
302 6760 Rubber cable clip 3.6x277
2
2
303 1587 Hexagon screw M 8x16 Din 933
2
2
304 7971 Side panel left
1
1
305 7977 Decal left green
1
-
7985 Decal left yellow
-
1
306 6747 Sticker
1
-
6755 Sticker
-
1
307 7978 Decal left
1
1
308 7972 Side panel right
1
1
309 7980 Decal right green
1
-
7987 Decal right yellow
-
1
310 6747 Sticker
1
-
6755 Sticker
-
1
311 7981 Decal right
1
1
312 5050 Oval head screw M 6x16 Din 7985
4
4
313 2708 Rubber washer
4
4
314 6759 Rubber 25x3
X
X
315 8353 Exhaust welded
1
-
8379 Exhaust welded
-
1
316 8357 Tail pipe soldered
1
-
8380 Tail pipe soldered
-
1
317 8361 Silencer welded
1
-
8381 Silencer welded
-
1
318 8366 Silencer cpl
1
-
8382 Silencer cpl
-
1
319 6864 Exhaust packing
1
-
6851 Exhaust packing
-
1
320 8368 Circlip
1
1
321 8367 Exhaust system cpl
1
-
8383 Exhaust system cpl
-
1
322 896 Asbestos cord
X
X
323 5474 Clamp
1
1
324 6866 Tension spring
2
-
325 6275 Spring
-
1
326 6276 Guide bush
-
1
327 1523 Inner hexagon screw M 6x70 Din 912
-
1
328 1750 Washer B 6.4 Din 9021
-
1
329 1166 Silent bloc for exhaust
2
2
330 1732 Washer B 6.4 Din 125
2
2
331 1690 Securing nut NM 6 Din 980
2
2
332 5430 Washer
4
4
333 1510 Spring ring B 6 Din 128
2
2
334 1525 Hexagon screw M 6x14 Din 933
2
2
335 1750 Washer B 6.4 Din 9021
2
2
336 8360 Bush for silencer
1
1
337 5345 Rubber washer
2
2
338 1759 Washer B 8.4 Din 9021
1
1
339 1591 Hexagon screw M 8x25 Din 933
1
1
340 1692 Securing nut NM 8 Din 980
1
1
341 1734 Washer B 8.4 Din 125
1
1
- 7355 Set of tools
1
1
347 7867 Clamp
2
2
348 7868 Rubber support
2
2
349 2275
X
X

Copyright © 2008 www.maicoland.com.  All rights reserved.
