1978 Frame Parts List — SOCAL Maico

 Back to 1978 Diagrams1978 FRAME PARTS LIST180 parts — Models: 250 / 400 / 440
Chassis →Engine →

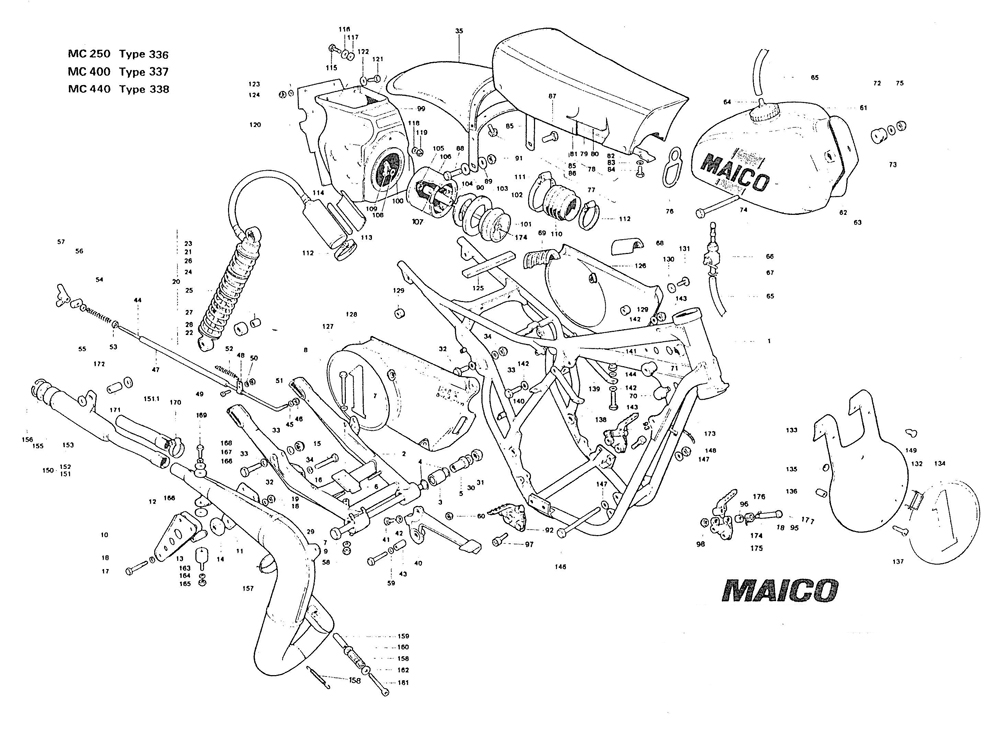

Click to enlarge
Item No.PART NO.DESCRIPTION250400440
15Frame cpl111
21929Swing arm111
33932Needle cage HK 2030222
41930O ring444
51931Bush for swing arm222
61932Guide plate for swing arm222
71732Washer B 6.4 Din 125222
81575Hexagon screw M 6x60 Din 931111
91690Hexagon nut NM 6x60 Din 980111
101933Chain guide plate right hand111
111934Chain guide plate left hand111
121935Plastic plate for chain guide222
131936Spacer bush for chain guide333
141937Roller for chain guide222
151580Hexagon screw M 6x45 Din 933222
161704Spring ring B 6 Din 127222
171500Hexagon screw M 6x40 Din 931111
181732Washer B 6,4 Din 125222
191690Hexagon nut M 6 Din 980111
206141Rear shock cpl222
211942Upper spring cup111
221943Lower spring cup111
231944Circlip SW 40111
241945Guide ring for spring111
251946Spring long111
261947Spring short111
271948Bush222
281940Silent bloc222
293937Swing arm spindle111
301718Spring washer B 14 Din 137111
315011Hexagon nut NM 14x1.5 Din 980-8111
321594Hexagon screw M 8x40 Din 931444
331734Washer B 8,4 Din 125888
341692Self locking nut M 8 Din 980444
355393Rear fender111
361571Hexagon screw M 6x30 Din 931444
371732Washer B 6,4 Din 125444
381750Washer 6,4 Din 9021888
391690Self locking nut NM 6 Din 980444
406156Front brake lever111
411570Hexagon screw M 6x25 Din 933111
421667Hexagon nut M 6 Din 934111
436158Bush for brake lever111
441977Rear brake rod111
451732Washer B 6,4 Din 125111
461690Self locking nut NM 6 Din 980111
47406Ventilation hose***
48237Clamp111
491527Cylinder head screw M 4x10 Din 84111
501702Spring ring B 4 Din 127111
511665Hexagon nut M 4 Din 934111
52236Extension spring111
531667Hexagon nut M 6 Din 934111
54242Pressure spring111
551732Washer B 6,4 Din 125111
56244Nipple holder111
57243Wing nut111
581500Hexagon screw M 6x40 Din 931111
591732Washer B 6,4 Din 125111
601690Hexagon nut NM 6 Din 980111
616160Tank111
623520Maico emblem, left hand111
633521Maico emblem, right hand111
642228Tank cap111
65406Gasoline hose***
662831Gasoline tap111
672832Hose clip111
683527Rubber pad for tank111
693522Rubber pad for tank rear111
703866Moulded rubber mount222
715348Bush for tank222
725344Rubber ring for tank222
731734Washer B 8,4 Din 125222
741604Hexagon screw M 8x90 Din 931111
751692Self locking nut NM 8 Din 980111
763397Tension ring111
775192Seat cpl (low)111
785391Seat low less pos 85 & 86111
795193Seat base111
805194Seat padding (low)111
815195Seat cover111
82286Clamp holder for seat111
831704Spring washer B 6 Din 127222
841567Hexagon screw M 6x16 Din 933222
855197Seat bracket111
861728Self locking screw444
871568Hexagon screw M 8x18 Din 933111
881592Hexagon screw M 8x30 Din 933111
891749Washer 8,4 Din 9021333
901734Washer B 8,4 Din 125111
911692Self locking nut NM 8 Din 980222
923779Foot rest right hand cpl111
933780Foot rest left hand cpl111
943566Foot rest spring right hand111
953568Foot rest spring left hand111
963565Bush for foot rest222
971655Socket screw M 10x25 Din 6912222
981692Self locking nut NM 8 Din 980222
992258Air filter box111
1002485Rubber ring for filter box111
1013182Flange for air box outside111
1025153Foam ring111
1033163Flange for air box111
1043184Spacer tube111
1051667Hexagon nut111
1063181Foam filter111
1073164Air filter body111
1081750Washer 6,4 Din 9021111
1092260Wing nut111
110343Rubber sleeve111
111348Clamp111
112683Clamp555
1135204Foam seal***
1142261Strengthening plate for filter box222
1151569Hexagon screw M 6x20 Din 9021222
1161750Washer 6,4 Din 9021111
1172708Rubber washer111
1181732Washer B 6,4 Din 125111
1191690Self locking nut NM 6 Din 980111
1206241Splash guard111
1211567Hexagon screw M 6x16 Din 933444
1221750Washer 6,4 Din 9021666
1231732Washer B 6,4 Din 125222
1241690Self locking nut NM 6 Din 980444
1255204Foam seal***
1262264Side panel left side111
1276252Number plate transfers green2--
1274152Number plate transfers yellow-22
1286246Side panel right side111
1295029Spacer washer for side panel666
1302708Rubber washer666
1313711Plastic screw666
1326247Cable guide111
1336251Front number plate111
1346252Front number plate transfers green1--
1344152Front number plate transfers yellow-11
1356265Spring nut222
1363094Sliding rollers222
1376253Plastic screw222
1382277Cylinder head stay right hand1--
1382282Cylinder head stay right hand-11
1392278Cylinder head stay left hand1--
1392283Cylinder head stay left hand-11
1401591Hexagon screw M 8x25 Din 933111
1411692Self locking nut NM 8 Din 980333
1421734Washer B 8,4 Din 125444
1431592Hexagon screw M 8x30 Din 933222
1441714Spring washer B 8 Din 137222
1456254Set of engine bolts pos 146,147,148111
1461610Hexagon screw M 8x120 Din 931222
1471734Washer B 8,4 Din 125444
1481700Self locking nut NM 8 Din 980222
1496267Plastic clip222
1516272Exhaust system, welded1--
151.16277Exhaust system, welded-11
1525466Silencer cpl1--
1525485Silencer cpl-11
1545155Exhaust padding1--
1543557Exhaust padding-11
1555311End cap111
1561859Retaining ring 50x2 Din 472111
157896Asbestos cord***
1586275Pressure spring111
1596276Spacer tube111
1601750Washer 6,4 Din 9021111
1611523Hexagon screw M 8x70 Din 912111
1621750Washer 6,4 Din 9021111
1631166Silent bloc for exhaust222
1641732Washer B 6,4 Din 125222
1651690Self locking nut NM 6 Din 980222
1665430Washer444
1671750Washer 6,4 Din 9021222
1681704Spring ring B 6 Din 127222
1691525Hexagon screw M 6x14 Din 932222
1705429Clamp SP1--
1705474Clamp SP-11
1715453Bush for silencer securing bolt111
1725345Rubber washer222
173325Plastic cable clip888
1743758Hexagon bolt M 6x130x35111

Item No.	PART NO.	DESCRIPTION	250	400	440
1	5	Frame cpl	1	1	1
2	1929	Swing arm	1	1	1
3	3932	Needle cage HK 2030	2	2	2
4	1930	O ring	4	4	4
5	1931	Bush for swing arm	2	2	2
6	1932	Guide plate for swing arm	2	2	2
7	1732	Washer B 6.4 Din 125	2	2	2
8	1575	Hexagon screw M 6x60 Din 931	1	1	1
9	1690	Hexagon nut NM 6x60 Din 980	1	1	1
10	1933	Chain guide plate right hand	1	1	1
11	1934	Chain guide plate left hand	1	1	1
12	1935	Plastic plate for chain guide	2	2	2
13	1936	Spacer bush for chain guide	3	3	3
14	1937	Roller for chain guide	2	2	2
15	1580	Hexagon screw M 6x45 Din 933	2	2	2
16	1704	Spring ring B 6 Din 127	2	2	2
17	1500	Hexagon screw M 6x40 Din 931	1	1	1
18	1732	Washer B 6,4 Din 125	2	2	2
19	1690	Hexagon nut M 6 Din 980	1	1	1
20	6141	Rear shock cpl	2	2	2
21	1942	Upper spring cup	1	1	1
22	1943	Lower spring cup	1	1	1
23	1944	Circlip SW 40	1	1	1
24	1945	Guide ring for spring	1	1	1
25	1946	Spring long	1	1	1
26	1947	Spring short	1	1	1
27	1948	Bush	2	2	2
28	1940	Silent bloc	2	2	2
29	3937	Swing arm spindle	1	1	1
30	1718	Spring washer B 14 Din 137	1	1	1
31	5011	Hexagon nut NM 14x1.5 Din 980-8	1	1	1
32	1594	Hexagon screw M 8x40 Din 931	4	4	4
33	1734	Washer B 8,4 Din 125	8	8	8
34	1692	Self locking nut M 8 Din 980	4	4	4
35	5393	Rear fender	1	1	1
36	1571	Hexagon screw M 6x30 Din 931	4	4	4
37	1732	Washer B 6,4 Din 125	4	4	4
38	1750	Washer 6,4 Din 9021	8	8	8
39	1690	Self locking nut NM 6 Din 980	4	4	4
40	6156	Front brake lever	1	1	1
41	1570	Hexagon screw M 6x25 Din 933	1	1	1
42	1667	Hexagon nut M 6 Din 934	1	1	1
43	6158	Bush for brake lever	1	1	1
44	1977	Rear brake rod	1	1	1
45	1732	Washer B 6,4 Din 125	1	1	1
46	1690	Self locking nut NM 6 Din 980	1	1	1
47	406	Ventilation hose	*	*	*
48	237	Clamp	1	1	1
49	1527	Cylinder head screw M 4x10 Din 84	1	1	1
50	1702	Spring ring B 4 Din 127	1	1	1
51	1665	Hexagon nut M 4 Din 934	1	1	1
52	236	Extension spring	1	1	1
53	1667	Hexagon nut M 6 Din 934	1	1	1
54	242	Pressure spring	1	1	1
55	1732	Washer B 6,4 Din 125	1	1	1
56	244	Nipple holder	1	1	1
57	243	Wing nut	1	1	1
58	1500	Hexagon screw M 6x40 Din 931	1	1	1
59	1732	Washer B 6,4 Din 125	1	1	1
60	1690	Hexagon nut NM 6 Din 980	1	1	1
61	6160	Tank	1	1	1
62	3520	Maico emblem, left hand	1	1	1
63	3521	Maico emblem, right hand	1	1	1
64	2228	Tank cap	1	1	1
65	406	Gasoline hose	*	*	*
66	2831	Gasoline tap	1	1	1
67	2832	Hose clip	1	1	1
68	3527	Rubber pad for tank	1	1	1
69	3522	Rubber pad for tank rear	1	1	1
70	3866	Moulded rubber mount	2	2	2
71	5348	Bush for tank	2	2	2
72	5344	Rubber ring for tank	2	2	2
73	1734	Washer B 8,4 Din 125	2	2	2
74	1604	Hexagon screw M 8x90 Din 931	1	1	1
75	1692	Self locking nut NM 8 Din 980	1	1	1
76	3397	Tension ring	1	1	1
77	5192	Seat cpl (low)	1	1	1
78	5391	Seat low less pos 85 & 86	1	1	1
79	5193	Seat base	1	1	1
80	5194	Seat padding (low)	1	1	1
81	5195	Seat cover	1	1	1
82	286	Clamp holder for seat	1	1	1
83	1704	Spring washer B 6 Din 127	2	2	2
84	1567	Hexagon screw M 6x16 Din 933	2	2	2
85	5197	Seat bracket	1	1	1
86	1728	Self locking screw	4	4	4
87	1568	Hexagon screw M 8x18 Din 933	1	1	1
88	1592	Hexagon screw M 8x30 Din 933	1	1	1
89	1749	Washer 8,4 Din 9021	3	3	3
90	1734	Washer B 8,4 Din 125	1	1	1
91	1692	Self locking nut NM 8 Din 980	2	2	2
92	3779	Foot rest right hand cpl	1	1	1
93	3780	Foot rest left hand cpl	1	1	1
94	3566	Foot rest spring right hand	1	1	1
95	3568	Foot rest spring left hand	1	1	1
96	3565	Bush for foot rest	2	2	2
97	1655	Socket screw M 10x25 Din 6912	2	2	2
98	1692	Self locking nut NM 8 Din 980	2	2	2
99	2258	Air filter box	1	1	1
100	2485	Rubber ring for filter box	1	1	1
101	3182	Flange for air box outside	1	1	1
102	5153	Foam ring	1	1	1
103	3163	Flange for air box	1	1	1
104	3184	Spacer tube	1	1	1
105	1667	Hexagon nut	1	1	1
106	3181	Foam filter	1	1	1
107	3164	Air filter body	1	1	1
108	1750	Washer 6,4 Din 9021	1	1	1
109	2260	Wing nut	1	1	1
110	343	Rubber sleeve	1	1	1
111	348	Clamp	1	1	1
112	683	Clamp	5	5	5
113	5204	Foam seal	*	*	*
114	2261	Strengthening plate for filter box	2	2	2
115	1569	Hexagon screw M 6x20 Din 9021	2	2	2
116	1750	Washer 6,4 Din 9021	1	1	1
117	2708	Rubber washer	1	1	1
118	1732	Washer B 6,4 Din 125	1	1	1
119	1690	Self locking nut NM 6 Din 980	1	1	1
120	6241	Splash guard	1	1	1
121	1567	Hexagon screw M 6x16 Din 933	4	4	4
122	1750	Washer 6,4 Din 9021	6	6	6
123	1732	Washer B 6,4 Din 125	2	2	2
124	1690	Self locking nut NM 6 Din 980	4	4	4
125	5204	Foam seal	*	*	*
126	2264	Side panel left side	1	1	1
127	6252	Number plate transfers green	2	-	-
127	4152	Number plate transfers yellow	-	2	2
128	6246	Side panel right side	1	1	1
129	5029	Spacer washer for side panel	6	6	6
130	2708	Rubber washer	6	6	6
131	3711	Plastic screw	6	6	6
132	6247	Cable guide	1	1	1
133	6251	Front number plate	1	1	1
134	6252	Front number plate transfers green	1	-	-
134	4152	Front number plate transfers yellow	-	1	1
135	6265	Spring nut	2	2	2
136	3094	Sliding rollers	2	2	2
137	6253	Plastic screw	2	2	2
138	2277	Cylinder head stay right hand	1	-	-
138	2282	Cylinder head stay right hand	-	1	1
139	2278	Cylinder head stay left hand	1	-	-
139	2283	Cylinder head stay left hand	-	1	1
140	1591	Hexagon screw M 8x25 Din 933	1	1	1
141	1692	Self locking nut NM 8 Din 980	3	3	3
142	1734	Washer B 8,4 Din 125	4	4	4
143	1592	Hexagon screw M 8x30 Din 933	2	2	2
144	1714	Spring washer B 8 Din 137	2	2	2
145	6254	Set of engine bolts pos 146,147,148	1	1	1
146	1610	Hexagon screw M 8x120 Din 931	2	2	2
147	1734	Washer B 8,4 Din 125	4	4	4
148	1700	Self locking nut NM 8 Din 980	2	2	2
149	6267	Plastic clip	2	2	2
151	6272	Exhaust system, welded	1	-	-
151.1	6277	Exhaust system, welded	-	1	1
152	5466	Silencer cpl	1	-	-
152	5485	Silencer cpl	-	1	1
154	5155	Exhaust padding	1	-	-
154	3557	Exhaust padding	-	1	1
155	5311	End cap	1	1	1
156	1859	Retaining ring 50x2 Din 472	1	1	1
157	896	Asbestos cord	*	*	*
158	6275	Pressure spring	1	1	1
159	6276	Spacer tube	1	1	1
160	1750	Washer 6,4 Din 9021	1	1	1
161	1523	Hexagon screw M 8x70 Din 912	1	1	1
162	1750	Washer 6,4 Din 9021	1	1	1
163	1166	Silent bloc for exhaust	2	2	2
164	1732	Washer B 6,4 Din 125	2	2	2
165	1690	Self locking nut NM 6 Din 980	2	2	2
166	5430	Washer	4	4	4
167	1750	Washer 6,4 Din 9021	2	2	2
168	1704	Spring ring B 6 Din 127	2	2	2
169	1525	Hexagon screw M 6x14 Din 932	2	2	2
170	5429	Clamp SP	1	-	-
170	5474	Clamp SP	-	1	1
171	5453	Bush for silencer securing bolt	1	1	1
172	5345	Rubber washer	2	2	2
173	325	Plastic cable clip	8	8	8
174	3758	Hexagon bolt M 6x130x35	1	1	1
