 Back to 1980 Diagrams1980 FRAME PARTS LIST177 parts — Models: 250 / 400 / 440
Chassis →Engine →

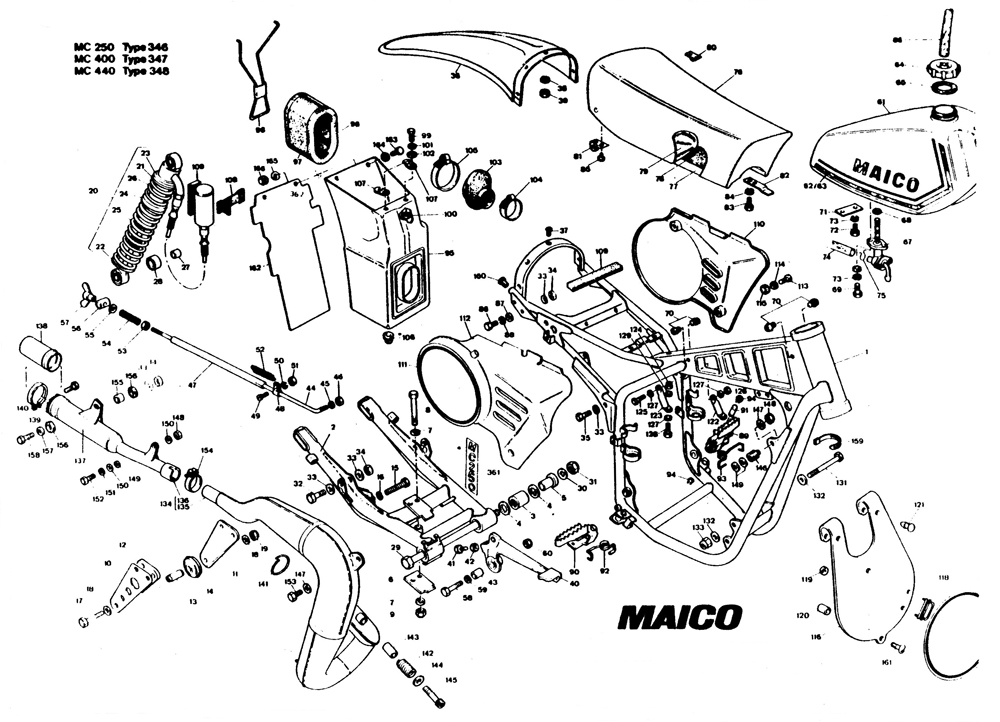

Click to enlarge
Item No.PART NO.DESCRIPTION250400440
16430Frame cpl111
26207Swing arm111
33932Needle cage HK 2030222
41930O ring444
51931Bush for swing arm222
61932Guide plate for swing arm111
71732Washer B 6.4 Din 125333
81575Hexagon screw M 6x60 Din 931333
91690Hexagon nut NM 6 Din 980111
101933Chain guide plate right hand111
111934Chain guide plate left hand111
121935Plastic plate for chain guide222
131936Spacer bush for chain guide333
141937Roller for chain guide222
151580Hexagon screw M 6x45 Din 931-22
161510Lock washer B6 Din 128222
171500Hexagon screw M6x40 Din 931111
181732Washer B 6.4 Din 125222
191690Hexagon nut NM 6 Din 980111
206486Damper cpl222
211942Upper spring cup111
226487Bottom spring cup111
231944Circlip SW40111
241945Guide ring111
256488Spring long111
266491Spring short111
271948Bush222
281940Silentbloc222
293937Swingarm spindle111
301718Spring washer B14 Din 137111
315011Nut NM 14x1.5 Din 980111
321594Hexagon screw M 8x40 Din 931222
331734Washer B 8.4 Din 125888
341692Securing nut NM 8x35 Din 931444
351593Hexagon screw M 8x35 Din 931222
366496Rear fender111
371791Countersunk Screw M 5x12555
381741Washer B 5.3 Din 9021555
391689Hexagon nut NM 5 Din 980555
406502Brake lever111
411570Hexagon screw M 6x25 Din 933111
421667Hexagon nut M 6 Din 934111
436505Bushing for Brake Lever111
441977Rear brake rod111
451732Washer B 6.4 Din 125111
461690Hexagon nut M 6 Din 980111
47406HoseXXX
48237Clamp111
491527Cyl. Head screw M 4x10 Din 84111
501702Spring ring B 4 Din 127111
511665Hexagon nut M 4 Din 934111
52236Extension spring111
531667Hexagon nut M 6 Din 934111
54242Compression spring111
551732Washer B 6.4 Din 125111
56244Nipple holder111
57243Wing nut111
581597Hexagon nut M 8x55 Din 931111
591743Washer B 8.4 Din 125111
601692Securing nut111
616507Tank with decal111
626512Tank decal left111
636513Tank decal right111
646515Gas tap cpl111
656516Sealing ring111
666517Vent hose111
676509Pet cock111
686510O-ring111
691525Hexagon screw M 6x14 Din 933222
703528Rubber stop444
716511Holding plate for tank111
721525Hexagon screw M 6x14 Din 933222
731510Lock washer444
74406Gas hose111
752832Hose clip222
766525Seat cpl111
775193Seat base111
786526Seat foam111
796527Seat cover111
806521Seat mounting hook left111
816522Seat mounting hook right111
82286Clamp holder for seat111
831567Hexagon screw M 6x16 Din 933222
841704Spring washer B 6 Din 127222
856524Countersunk metal screw444
861587Hexagon screw M 8x16 Din 933222
871759Washer B 8.4 Din 9021222
881511Spring washer222
896533Foot peg left cpl111
906535Foot peg right cpl111
916536Foot peg axle222
926537Foot peg spring right111
936538Foot peg spring left111
946539Circlip 10x1 Din 471444
956546Air box111
966544Air filter cage111
976545Air filter foam111
986540Holding wire111
991567Hexagon screw M 6x16 Din 933555
1001690Hexagon nut NM 6 Din 980555
1011732Washer B 6.4 Din 125555
1021750Washer B 6.4 Din 9021555
1036551Intake manifold111
104683Clamp 40-60111
105348Clamp 78111
1066552Plug for air box111
1076553Hook222
1086489Rubber band222
1095204Sealing rubberXXX
1106561Side panel left111
1114153Green No. plate decal2--
1114152Yellow No. plate decal-22
1126563Side panel right111
1135050Screw M 6x16 Din 7985444
1141750Washer B 6.4 Din 9021444
1152708Rubber washer444
1166555Front No. Panel111
1176252No. plate decal green front1--
1176261No. plate decal yellow front-11
1186247Cable guide cpl111
1196265Spring nut222
1203094Sliding roller222
1216267Clip222
1226557Cyl. head stay left1--
1226597Cyl. head stay left-11
1236558Cyl. head stay right1--
1236598Cyl. head stay right-11
12478Hexagon nut M 8 long222
1251591Hexagon nut M 8x25 Din 933111
1261692Securing nut NM 8 Din 980111
1271734Washer B 8.4 Din 125666
1281592Hexagon screw M 8x30 Din 933222
1291511Spring ring B 8 Din 128222
1306254Set motormount bolts (pos 131-133)111
1311610Hexagon screw M 8x120 Din 931222
1321734Washer B 8.4 Din 125444
1331700Nut NM 8 Din 980222
1346594Exhaust pipe cpl1--
1346618Exhaust pipe cpl-11
1356574Expansion chamber1--
1356609Expansion chamber-11
1366559Silencer cpl1--
1366616Silencer cpl-11
1376583Silencer housing1--
1376615Silencer housing-11
1386410Silencer end piece cpl111
1396420Exhaust packing111
1406421Clamp for silencer111
141896Asbestos cordXXX
1426275Spring for exhaust111
1436276Sleeve for exhaust spring111
1441750Washer 6.4 Din 9021111
1451523Cyl. Head screw M 6x70 Din 912111
1461166Silent bloc for exhaust111
1471732Washer B 6.4 Din 125222
1481690Nut NM 6 Din 980222
1495430Asbestos washer444
1501750Washer 6.4 Din 9021222
1511510Spring ring B 6 Din 128111
1521525Hexagon screw M 6x14 Din 933111
1531567Hexagon screw M 6x16 Din 933111
1545429Clamp111
1555453Bush for exhaust mount111
1565345Rubber washer222
1571759Washer 8.4 Din 9021111
1581591Hexagon screw M 8x25 Din 933111
159325Rubber cable clip888
1606565Rubber plug222
1616253Plastic screw222
1626564Splash guard111
1631567Hexagon screw M 6x16 Din 933222
1641750Washer 6.4 Din 9021222
1651732Washer B 6.4 Din 125222
1661690Nut NM Din 980222
3616532Sticker MC 2501--
3616601Sticker MC 400-1-
3616623Sticker MC 440--1

Item No.	PART NO.	DESCRIPTION	250	400	440
1	6430	Frame cpl	1	1	1
2	6207	Swing arm	1	1	1
3	3932	Needle cage HK 2030	2	2	2
4	1930	O ring	4	4	4
5	1931	Bush for swing arm	2	2	2
6	1932	Guide plate for swing arm	1	1	1
7	1732	Washer B 6.4 Din 125	3	3	3
8	1575	Hexagon screw M 6x60 Din 931	3	3	3
9	1690	Hexagon nut NM 6 Din 980	1	1	1
10	1933	Chain guide plate right hand	1	1	1
11	1934	Chain guide plate left hand	1	1	1
12	1935	Plastic plate for chain guide	2	2	2
13	1936	Spacer bush for chain guide	3	3	3
14	1937	Roller for chain guide	2	2	2
15	1580	Hexagon screw M 6x45 Din 931	-	2	2
16	1510	Lock washer B6 Din 128	2	2	2
17	1500	Hexagon screw M6x40 Din 931	1	1	1
18	1732	Washer B 6.4 Din 125	2	2	2
19	1690	Hexagon nut NM 6 Din 980	1	1	1
20	6486	Damper cpl	2	2	2
21	1942	Upper spring cup	1	1	1
22	6487	Bottom spring cup	1	1	1
23	1944	Circlip SW40	1	1	1
24	1945	Guide ring	1	1	1
25	6488	Spring long	1	1	1
26	6491	Spring short	1	1	1
27	1948	Bush	2	2	2
28	1940	Silentbloc	2	2	2
29	3937	Swingarm spindle	1	1	1
30	1718	Spring washer B14 Din 137	1	1	1
31	5011	Nut NM 14x1.5 Din 980	1	1	1
32	1594	Hexagon screw M 8x40 Din 931	2	2	2
33	1734	Washer B 8.4 Din 125	8	8	8
34	1692	Securing nut NM 8x35 Din 931	4	4	4
35	1593	Hexagon screw M 8x35 Din 931	2	2	2
36	6496	Rear fender	1	1	1
37	1791	Countersunk Screw M 5x12	5	5	5
38	1741	Washer B 5.3 Din 9021	5	5	5
39	1689	Hexagon nut NM 5 Din 980	5	5	5
40	6502	Brake lever	1	1	1
41	1570	Hexagon screw M 6x25 Din 933	1	1	1
42	1667	Hexagon nut M 6 Din 934	1	1	1
43	6505	Bushing for Brake Lever	1	1	1
44	1977	Rear brake rod	1	1	1
45	1732	Washer B 6.4 Din 125	1	1	1
46	1690	Hexagon nut M 6 Din 980	1	1	1
47	406	Hose	X	X	X
48	237	Clamp	1	1	1
49	1527	Cyl. Head screw M 4x10 Din 84	1	1	1
50	1702	Spring ring B 4 Din 127	1	1	1
51	1665	Hexagon nut M 4 Din 934	1	1	1
52	236	Extension spring	1	1	1
53	1667	Hexagon nut M 6 Din 934	1	1	1
54	242	Compression spring	1	1	1
55	1732	Washer B 6.4 Din 125	1	1	1
56	244	Nipple holder	1	1	1
57	243	Wing nut	1	1	1
58	1597	Hexagon nut M 8x55 Din 931	1	1	1
59	1743	Washer B 8.4 Din 125	1	1	1
60	1692	Securing nut	1	1	1
61	6507	Tank with decal	1	1	1
62	6512	Tank decal left	1	1	1
63	6513	Tank decal right	1	1	1
64	6515	Gas tap cpl	1	1	1
65	6516	Sealing ring	1	1	1
66	6517	Vent hose	1	1	1
67	6509	Pet cock	1	1	1
68	6510	O-ring	1	1	1
69	1525	Hexagon screw M 6x14 Din 933	2	2	2
70	3528	Rubber stop	4	4	4
71	6511	Holding plate for tank	1	1	1
72	1525	Hexagon screw M 6x14 Din 933	2	2	2
73	1510	Lock washer	4	4	4
74	406	Gas hose	1	1	1
75	2832	Hose clip	2	2	2
76	6525	Seat cpl	1	1	1
77	5193	Seat base	1	1	1
78	6526	Seat foam	1	1	1
79	6527	Seat cover	1	1	1
80	6521	Seat mounting hook left	1	1	1
81	6522	Seat mounting hook right	1	1	1
82	286	Clamp holder for seat	1	1	1
83	1567	Hexagon screw M 6x16 Din 933	2	2	2
84	1704	Spring washer B 6 Din 127	2	2	2
85	6524	Countersunk metal screw	4	4	4
86	1587	Hexagon screw M 8x16 Din 933	2	2	2
87	1759	Washer B 8.4 Din 9021	2	2	2
88	1511	Spring washer	2	2	2
89	6533	Foot peg left cpl	1	1	1
90	6535	Foot peg right cpl	1	1	1
91	6536	Foot peg axle	2	2	2
92	6537	Foot peg spring right	1	1	1
93	6538	Foot peg spring left	1	1	1
94	6539	Circlip 10x1 Din 471	4	4	4
95	6546	Air box	1	1	1
96	6544	Air filter cage	1	1	1
97	6545	Air filter foam	1	1	1
98	6540	Holding wire	1	1	1
99	1567	Hexagon screw M 6x16 Din 933	5	5	5
100	1690	Hexagon nut NM 6 Din 980	5	5	5
101	1732	Washer B 6.4 Din 125	5	5	5
102	1750	Washer B 6.4 Din 9021	5	5	5
103	6551	Intake manifold	1	1	1
104	683	Clamp 40-60	1	1	1
105	348	Clamp 78	1	1	1
106	6552	Plug for air box	1	1	1
107	6553	Hook	2	2	2
108	6489	Rubber band	2	2	2
109	5204	Sealing rubber	X	X	X
110	6561	Side panel left	1	1	1
111	4153	Green No. plate decal	2	-	-
111	4152	Yellow No. plate decal	-	2	2
112	6563	Side panel right	1	1	1
113	5050	Screw M 6x16 Din 7985	4	4	4
114	1750	Washer B 6.4 Din 9021	4	4	4
115	2708	Rubber washer	4	4	4
116	6555	Front No. Panel	1	1	1
117	6252	No. plate decal green front	1	-	-
117	6261	No. plate decal yellow front	-	1	1
118	6247	Cable guide cpl	1	1	1
119	6265	Spring nut	2	2	2
120	3094	Sliding roller	2	2	2
121	6267	Clip	2	2	2
122	6557	Cyl. head stay left	1	-	-
122	6597	Cyl. head stay left	-	1	1
123	6558	Cyl. head stay right	1	-	-
123	6598	Cyl. head stay right	-	1	1
124	78	Hexagon nut M 8 long	2	2	2
125	1591	Hexagon nut M 8x25 Din 933	1	1	1
126	1692	Securing nut NM 8 Din 980	1	1	1
127	1734	Washer B 8.4 Din 125	6	6	6
128	1592	Hexagon screw M 8x30 Din 933	2	2	2
129	1511	Spring ring B 8 Din 128	2	2	2
130	6254	Set motormount bolts (pos 131-133)	1	1	1
131	1610	Hexagon screw M 8x120 Din 931	2	2	2
132	1734	Washer B 8.4 Din 125	4	4	4
133	1700	Nut NM 8 Din 980	2	2	2
134	6594	Exhaust pipe cpl	1	-	-
134	6618	Exhaust pipe cpl	-	1	1
135	6574	Expansion chamber	1	-	-
135	6609	Expansion chamber	-	1	1
136	6559	Silencer cpl	1	-	-
136	6616	Silencer cpl	-	1	1
137	6583	Silencer housing	1	-	-
137	6615	Silencer housing	-	1	1
138	6410	Silencer end piece cpl	1	1	1
139	6420	Exhaust packing	1	1	1
140	6421	Clamp for silencer	1	1	1
141	896	Asbestos cord	X	X	X
142	6275	Spring for exhaust	1	1	1
143	6276	Sleeve for exhaust spring	1	1	1
144	1750	Washer 6.4 Din 9021	1	1	1
145	1523	Cyl. Head screw M 6x70 Din 912	1	1	1
146	1166	Silent bloc for exhaust	1	1	1
147	1732	Washer B 6.4 Din 125	2	2	2
148	1690	Nut NM 6 Din 980	2	2	2
149	5430	Asbestos washer	4	4	4
150	1750	Washer 6.4 Din 9021	2	2	2
151	1510	Spring ring B 6 Din 128	1	1	1
152	1525	Hexagon screw M 6x14 Din 933	1	1	1
153	1567	Hexagon screw M 6x16 Din 933	1	1	1
154	5429	Clamp	1	1	1
155	5453	Bush for exhaust mount	1	1	1
156	5345	Rubber washer	2	2	2
157	1759	Washer 8.4 Din 9021	1	1	1
158	1591	Hexagon screw M 8x25 Din 933	1	1	1
159	325	Rubber cable clip	8	8	8
160	6565	Rubber plug	2	2	2
161	6253	Plastic screw	2	2	2
162	6564	Splash guard	1	1	1
163	1567	Hexagon screw M 6x16 Din 933	2	2	2
164	1750	Washer 6.4 Din 9021	2	2	2
165	1732	Washer B 6.4 Din 125	2	2	2
166	1690	Nut NM Din 980	2	2	2
361	6532	Sticker MC 250	1	-	-
361	6601	Sticker MC 400	-	1	-
361	6623	Sticker MC 440	-	-	1
