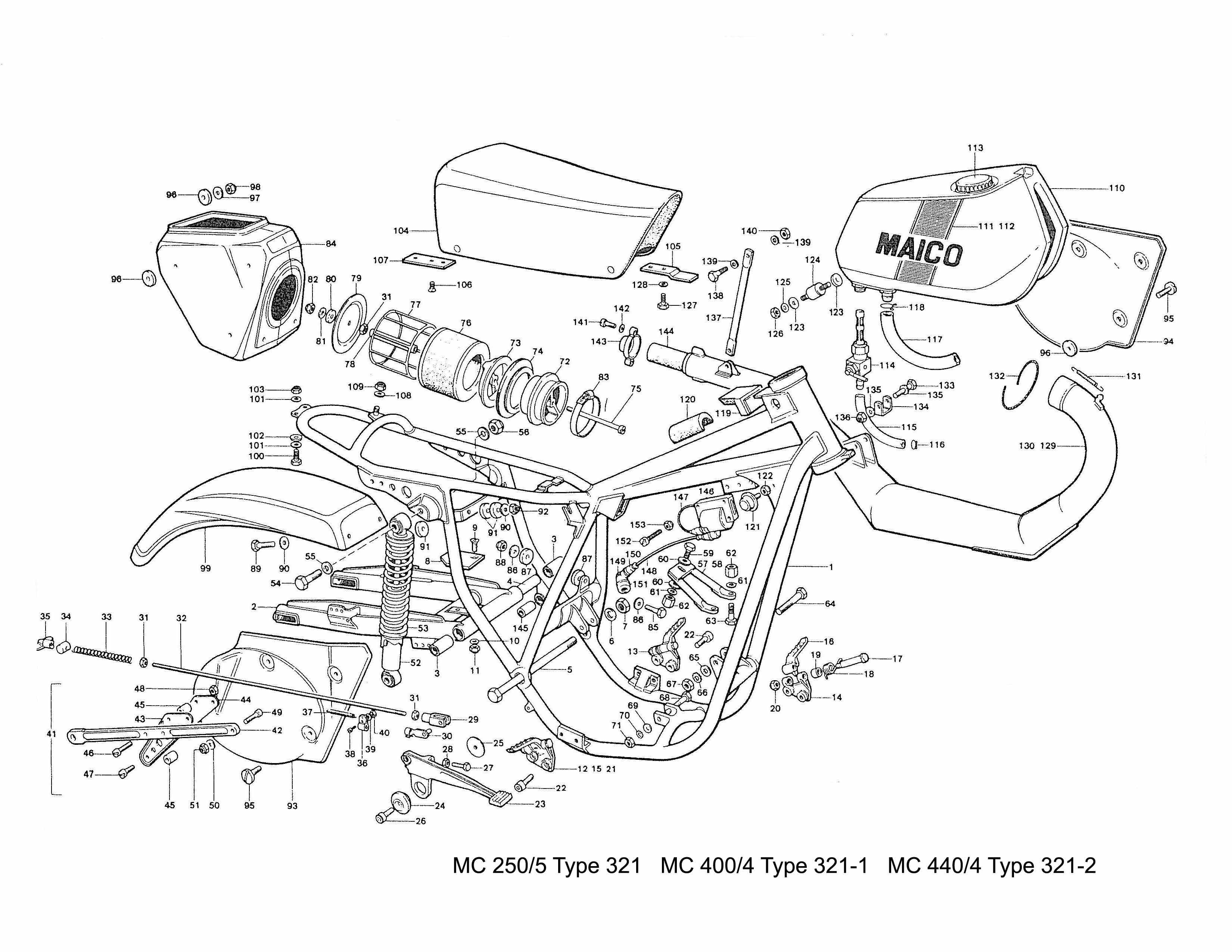

75frame

Part
 Description Quantity
No.
No.
250
400
440
1
3648
 Frame cpl
1
1
1
2
3490
 Swing arm cpl
1
1
1
3
108
 Silent bloc
2
2
2
4
3482
 Spacer tube for swing arm
1
1
1
5
3491
 Swing arm spindle
1
1
1
6
1754
 Washer
1
1
1
7
111
 Nut for swing arm spindle M 14x1.5
1
1
1
8
3488
 Swing arm plastic pad
1
1
1
9
1812
 Head screw M 6x16 Din 964
2
2
2
10
1732
 Washer B 6.5 Din 125
2
2
2
11
1690
 Hexagon nut M 6 Din 985
2
2
2
12
3779
 Foot rest right hand cpl
1
1
1
13
3780
 Foot rest left hand cpl
1
1
1
14
3564
 Foot rest base plate left hand
1
1
1
15
3567
 Foot rest base plate right hand
1
1
1
16
3563
 Foot rest
2
2
2
17
3569
 Bolt M 8x58x70
2
2
2
18
3568
 Foot rest return spring left hand
1
1
1
19
3565
 Bush
2
2
2
20
1682
 Self locking nut M 8 Din 985
2
2
2
21
3566
 Foot rest return spring right hand
1
1
1
22
1655
 Socket screw M 10x25
4
4
4
23
539
 Brake pedal alloy
1
1
1
24
540
 Outside collar for brake pedal
1
1
1
25
543
 Washer for brake pedal
1
1
1
26
1646
 Socket screw M 8x30 Din 912
1
1
1
27
1570
 Hexagon screw M 6x25 Din 933
1
1
1
28
1667
 Hexagon nut M 6 Din 934
1
1
1
29
241
 Fork joint
1
1
1
30
250
 Bolt
1
1
1
31
1667
 Hexagon nut M 6 Din 934
3
3
3
32
3223
 Brake rod
1
1
1
33
242
 Spring
1
1
1
34
244
 Nipple
1
1
1
35
243
 Wing nut
1
1
1
36
237
 Clamp
1
1
1
37
236
 Spring
1
1
1
38
1527
 Cylinder head screw
1
1
1
39
1702
 Spring washer B 8 Din 127
1
1
1
40
1667
 Hexagon nut M 6 Din 934
1
1
1
41
3505
 Chain guide cpl
1
1
1
42
3506
 Rear brake stopper arm
1
1
1
43
3092
 Chain guide plate right hand
1
1
1
44
3093
 Chain guide plate left hand
1
1
1
45
3094
 Rollers
3
3
3
46
1594
 Cylinder head screw M 6x40 Din 84
2
2
2
47
1550
 Cylinder head screw M 6x30 Din 84
1
1
1
48
1690
 Hexagon nut M 6 Din 985
3
3
3
49
1652
 Hexagon nut M 8x20 Din 6912
1
1
1
50
1734
 Washer B 8.4 Din 125
1
1
1
51
1692
 Hexagon nut M 8 Din 985
1
1
1
52
2600
 Koni shocks (without springs)
2
2
2
53
2409
 Spring
2
2
2
54
1594
 Hexagon nut M 8x40 Din 931
4
4
4
55
1734
 Washer B 8.4 Din 125
8
8
8
56
1692
 Hexagon nut M 8 Din 985
4
4
4
57
3697
 Support for cylinder
1
-
-
58
3781
 Support for cylinder
-
1
1
59
1589
 Hexagon screw M 8x20 Din 933
1
1
1
60
1749
 Washer
2
2
2
61
1714
 Spring washer B 8 Din 137
3
3
3
62
78
 Hexagon nut M 8 Din 6330
3
3
3
63
1592
 Hexagon nut M 8x30 Din 933
2
2
2
64
1626
 Hexagon screw M 10x1.25x60
2
2
2
65
1735
 Washer B 10 Din 125
2
2
2
66
1721
 Toothed washer A 10.5 Din 6797
2
2
2
67
1678
 Hexagon nut M 10x1.25 Din 6797
2
2
2
68
1599
 Hexagon screw M 8x60 Din 125
1
1
1
69
1734
 Washer B 8.4 Din 125
1
1
1
70
1720
 Toothed washer A 8.4 Din 6797
1
1
1
71
78
 Hexagon nut M 8 Din 6330
1
1
1
72
3182
 Flange for air box outside
1
1
1
73
3183
 Air box ring
1
1
1
74
2485
 Rubber ring for filter box
1
1
1
75
3758
 Cylinder screw M 6x130 Din 84
1
1
1
76
3181
 Foam filter
1
1
1
77
3164
 Air filter body
1
1
1
78
3184
 Spacer tube
1
1
1
79
342
 Cover for air filter
1
1
1
80
126
 Rubber washer
1
1
1
81
3730
 Washer
1
1
1
82
1690
 Hexagon nut M 6 Din 985
1
1
1
83
348
 Clamp
1
1
1
84
3180
 Air box
1
1
1
85
1569
 Hexagon screw M 6x20
2
2
2
86
3730
 Washer
4
4
4
87
126
 Rubber washer
4
4
4
88
1667
 Nut M 6 Din 934
2
2
2
89
1571
 Hexagon screw M 6x30
2
2
2
90
3730
 Washer
4
4
4
91
126
 Rubber washer
6
6
6
92
1667
 Nut M 6 Din 934
2
2
2
93
3709
 Number plate right hand
1
1
1
94
3710
 Number plate left hand
1
1
1
95
3711
 Flat head screw M 6x22
6
6
6
96
126
 Rubber washer
12
12
12
97
3730
 Washer
6
6
6
98
1667
 Hexagon nut M 6 Din 934
6
6
6
99
141
 Rear fender
1
1
1
100
1568
 Hexagon screw M 6x18 Din 933
2
2
2
101
1732
 Washer B 6.4 Din 125
4
4
4
102
126
 Rubber washer
2
2
2
103
1690
 Hexagon nut M 6 Din 985
2
2
2
104
3285
 Seat cpl
1
1
1
105
286
 Clamp holder for seat
1
1
1
106
1812
 Oval head screw
2
2
2
107
287
 Seat holding plate
1
1
1
108
1734
 Washer B 8.4 Din 125
1
1
1
109
1692
 Hexagon nut M 8 Din 985
1
1
1
110
3519
 Tank
1
1
1
111
3520
 Maico Emblem left hand
1
1
1
112
3521
 Maico emblem right hand
1
1
1
113
3429
 Tank cap
1
1
1
114
2831
 Fuel cock
1
1
1
115
3523
 Fuel line
1
1
1
116
2832
 Fuel line clip
2
2
2
117
3524
 Fuel line
1
1
1
118
3525
 Fuel line clip
1
1
1
119
3526
 Tank mount rubber
1
1
1
120
3527
 Rubber pad for tank
2
2
2
121
3528
 Moulded rubber mount
2
2
2
122
1690
 Hexagon nut M 6 Din 985
2
2
2
123
3529
 Washer
4
4
4
124
1062
 Moulded rubber mount
2
2
2
125
1732
 Washer B 6.4 Din 125
2
2
2
126
1690
 Hexagon nut M 6 Din 985
4
4
4
127
1567
 Hexagon screw M 6x16 Din 933
2
2
2
128
1704
 Spring washer B 6 Din 127
2
2
2
129
3612
 Exhaust system cpl
1
-
-
130
3517
 Exhaust system cpl
-
1
1
131
189
 Tension spring
1
1
1
132
896
 Asbestos cord
1
1
1
133
1595
 Hexagon screw M 8x45 Din 931
1
1
1
134
3514
 Exhaust strap
1
1
1
135
1734
 Washer B 8.4 Din 125
2
2
2
136
1692
 Hexagon nut M 8 Din 985
1
1
1
137
3611
 Exhaust brace
1
1
1
138
1567
 Hexagon screw M 6x16 Din 933
2
2
2
139
1732
 Washer B 6.4
4
4
4
140
1690
 Hexagon nut M 6 Din 985
2
2
2
141
1550
 Cylinder head screw M 6x30 Din 84
2
2
2
142
1704
 Spring washer B 6 Din 127
2
2
2
143
3516
 End piece
1
1
1
144
3557
 Exhaust packing
1
1
1
145
3214
 Silent bloc
1
1
1
146
1124
 Ignition coil
1
1
1
147
605
 Ground cable
1
1
1
148
589
 High tension lead
1
1
1
149
599
 Cable plug
1
1
1
150
600
 Rubber sleeve
2
2
2
151
601
 Rubber sleeve
1
1
1
152
1530
 Cylinder head screw M 5x25 Din 84
2
2
2
153
1689
 Hexagon nut M 5 Din 985
2
2
2
