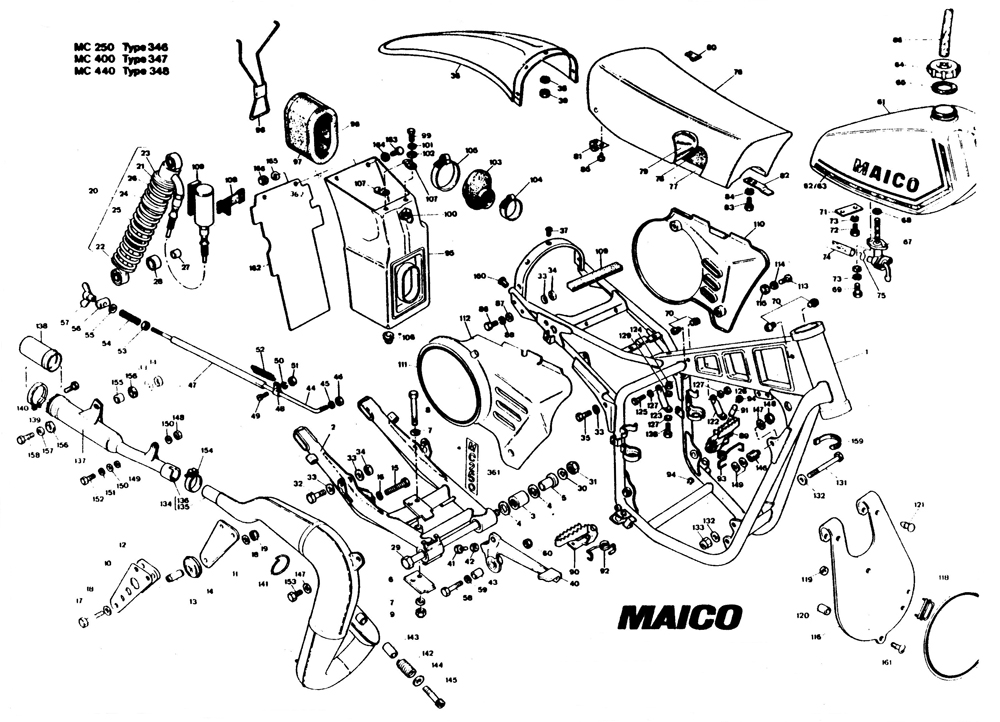

Picture | Part | Description | MC |
MC |
MC |
No. | No. | 250 |
400 |
440 |
|
Quantity | |||||
1 | 6430 | Frame cpl | 1 |
1 |
1 |
2 | 6207 | Swing arm | 1 |
1 |
1 |
3 | 3932 | Needle cage HK 2030 | 2 |
2 |
2 |
4 | 1930 | O ring | 4 |
4 |
4 |
5 | 1931 | Bush for swing arm | 2 |
2 |
2 |
6 | 1932 | Guide plate for swing arm | 6 |
6 |
6 |
7 | 1732 | Washer B 6.4 Din 125 | 2 |
2 |
2 |
8 | 1575 | Hexagon screw M 6x60 Din 931 | 1 |
1 |
1 |
9 | 1690 | Hexagfon nut NM 6 Din 980 | 1 |
1 |
1 |
10 | 1933 | Chain guide plate right hand | 1 |
1 |
1 |
11 | 1934 | Chain guide plate left hand | 1 |
1 |
1 |
12 | 1935 | Plastic plate for chain guide | 2 |
2 |
2 |
13 | 1936 | Spacer bush for chain guide | 3 |
3 |
3 |
14 | 1937 | Roller for chain guide | 2 |
2 |
2 |
15 | 1580 | Hexagon screw M 6x45 Din 931 | - |
2 |
2 |
16 | 1510 | Lock washer B6 Din 128 | 2 |
2 |
2 |
17 | 1500 | Hexagon screw M6x40 Din 931 | 1 |
1 |
1 |
18 | 1732 | Washer B 6.4 Din 125 | 2 |
2 |
2 |
19 | 1690 | Hexagon nut NM 6 Din 980 | 1 |
1 |
1 |
20 | 6486 | Damper cpl. | 2 |
2 |
2 |
21 | 1942 | Upper spring cup | 1 |
1 |
1 |
22 | 6487 | Bottom spring cup | 1 |
1 |
1 |
23 | 1944 | Circlip SW40 | 1 |
1 |
1 |
24 | 1945 | Guide ring | 1 |
1 |
1 |
25 | 6488 | Spring long | 1 |
1 |
1 |
26 | 6491 | Spring short | 1 |
1 |
1 |
27 | 1948 | Bush | 2 |
2 |
2 |
28 | 1940 | Silectbloc | 2 |
2 |
2 |
29 | 3937 | Swingarm spindle | 1 |
1 |
1 |
30 | 1718 | Spring washer B14 Din 137 | 1 |
1 |
1 |
31 | 5011 | Nut NM 14x1.5 Din 980 | 1 |
1 |
1 |
32 | 1594 | Hexagon screw M 8x40 Din 931 | 2 |
2 |
2 |
33 | 1734 | Washer B 8.4 Din 125 | 8 |
8 |
8 |
34 | 1692 | Securing nut NM 8x35 Din 931 | 4 |
4 |
4 |
35 | 1593 | Hexagon screw M 8x35 Din 931 | 2 |
2 |
2 |
36 | 6496 | Rear fender | 1 |
1 |
1 |
37 | 1791 | Countersunk Screw M 5x12 | 5 |
5 |
5 |
38 | 1741 | Washer B 5.3 Din 9021 | 5 |
5 |
5 |
39 | 1689 | Hexagon nut NM 5 Din 980 | 5 |
5 |
5 |
40 | 6502 | Brake lever | 1 |
1 |
1 |
41 | 1570 | Hexagon screw M 6x25 Din 933 | 1 |
1 |
1 |
42 | 1667 | Hexagon nut M 6 Din 934 | 1 |
1 |
1 |
43 | 6505 | Bushing f. Brake Lever | 1 |
1 |
1 |
44 | 1977 | Rear brake rod | 1 |
1 |
1 |
45 | 1732 | Washer B 6.4 Din 125 | 1 |
1 |
1 |
46 | 1690 | Hexagon nut M 6 Din 980 | 1 |
1 |
1 |
47 | 406 | Hose | X |
X |
X |
48 | 237 | Clamp | 1 |
1 |
1 |
49 | 1527 | Cyl. Head screw M 4x10 Din 84 | 1 |
1 |
1 |
50 | 1702 | Spring ring B 4 Din 127 | 1 |
1 |
1 |
51 | 1665 | Hexagon nut M 4 Din 934 | 1 |
1 |
1 |
52 | 236 | Extension spring | 1 |
1 |
1 |
53 | 1667 | Hexagon nut M 6 Din 934 | 1 |
1 |
1 |
54 | 242 | Compression spring | 1 |
1 |
1 |
55 | 1732 | Washer B 6.4 Din 125 | 1 |
1 |
1 |
56 | 244 | Nipple holder | 1 |
1 |
1 |
57 | 243 | Wing nut | 1 |
1 |
1 |
58 | 1597 | Hexagon nut M 8x55 Din 931 | 1 |
1 |
1 |
59 | 1743 | Washer B 8.4 Din 125 | 1 |
1 |
1 |
60 | 1692 | Securing nut | 1 |
1 |
1 |
61 | 6507 | Tank with decal | 1 |
1 |
1 |
62 | 6512 | Tank decal left | 1 |
1 |
1 |
63 | 6513 | Tank decal right | 1 |
1 |
1 |
64 | 6515 | Gas tap cpl. | 1 |
1 |
1 |
65 | 6516 | Sealing ring | 1 |
1 |
1 |
66 | 6517 | Vent hose | 1 |
1 |
1 |
67 | 6509 | Pet cock | 1 |
1 |
1 |
68 | 6510 | O-ring | 1 |
1 |
1 |
69 | 1525 | Hexagon screw M 6x14 Din 933 | 2 |
2 |
2 |
70 | 3528 | Rubber stop | 4 |
4 |
4 |
71 | 6511 | Holding plate f. tank | 1 |
1 |
1 |
72 | 1525 | Hexagon screw M 6x14 Din 933 | 2 |
2 |
2 |
73 | 1510 | Lock washer | 4 |
4 |
4 |
74 | 406 | Gas hose | 1 |
1 |
1 |
75 | 2832 | Hose clip | 2 |
2 |
2 |
76 | 6525 | Seat cpl. | 1 |
1 |
1 |
77 | 5193 | Seat base | 1 |
1 |
1 |
78 | 6526 | Seat foam | 1 |
1 |
1 |
79 | 6527 | Seat cover | 1 |
1 |
1 |
80 | 6521 | Seat mounting hook left | 1 |
1 |
1 |
81 | 6522 | Pet cock | 1 |
1 |
1 |
82 | 286 | Clamp holder f. seat | 1 |
1 |
1 |
83 | 1567 | Hexagon screw M 6x16 Din 933 | 2 |
2 |
2 |
84 | 1704 | Spring washer B 6 Din 127 | 2 |
2 |
2 |
85 | 6524 | Countersunk metal screw | 4 |
4 |
4 |
86 | 1587 | Hexagon screw M 8x16 Din 933 | 2 |
2 |
2 |
87 | 1759 | Washer B 8.4 Din 9021 | 2 |
2 |
2 |
88 | 1511 | Spring washer | 2 |
2 |
2 |
89 | 6533 | Foot peg left cpl. | 1 |
1 |
1 |
90 | 6535 | Foot peg right cpl. | 1 |
1 |
1 |
91 | 6536 | Foot peg axle | 2 |
2 |
2 |
92 | 6537 | Foot peg spring right | 1 |
1 |
1 |
93 | 6538 | Foot peg spring left | 1 |
1 |
1 |
94 | 6539 | Cipclip 10x1 Din 471 | 4 |
4 |
4 |
95 | 6546 | Air box | 1 |
1 |
1 |
96 | 6544 | Air filter cage | 1 |
1 |
1 |
97 | 6545 | Air filter foam | 1 |
1 |
1 |
98 | 6540 | Holding wire | 1 |
1 |
1 |
99 | 1567 | Hexagon screw M 6x16 Din 933 | 5 |
5 |
5 |
100 | 1690 | Hexagon nut NM 6 Din 980 | 5 |
5 |
5 |
101 | 1732 | Washer B 6.4 Din 125 | 5 |
5 |
5 |
102 | 1750 | Washer B 6.4 Din 9021 | 5 |
5 |
5 |
103 | 6551 | Intake manifold | 1 |
1 |
1 |
104 | 683 | Clamp 40-60 | 1 |
1 |
1 |
105 | 348 | Clamp 78 | 1 |
1 |
1 |
106 | 6552 | Plug f. air box | 1 |
1 |
1 |
107 | 6553 | Hook | 2 |
2 |
2 |
108 | 6489 | Rubber band | 2 |
2 |
2 |
109 | 5204 | Sealing rubber | X |
X |
X |
110 | 6561 | side panel left | 1 |
1 |
1 |
111 | 4153 | Green No. plate decal | 2 |
- |
- |
4152 | Yellow No. plate decal | - |
2 |
2 |
|
112 | 6563 | Side panel right | 1 |
1 |
1 |
113 | 5050 | Screw M 6x16 Din 7985 | 4 |
4 |
4 |
114 | 1750 | Washer B 6.4 Din 9021 | 4 |
4 |
4 |
115 | 2708 | Rubbber washer | 4 |
4 |
4 |
116 | 6555 | Front No. Panel | 1 |
1 |
1 |
117 | 6252 | No. plate decal green front | 1 |
- |
- |
6261 | No. plate decal yellow front | - |
1 |
1 |
|
118 | 6247 | Cable guide cpl. | 1 |
1 |
1 |
119 | 6265 | Spring nut | 2 |
2 |
2 |
120 | 3094 | Sliding roller | 2 |
2 |
2 |
121 | 6267 | Clip | 2 |
2 |
2 |
122 | 6557 | Cyl. head stay left | 1 |
- |
- |
6597 | Cyl. head stay left | - |
1 |
1 |
|
123 | 6558 | Cyl. head stay right | 1 |
- |
- |
6598 | Cyl. head stay right | - |
1 |
1 |
|
124 | 78 | Hexagon nut M 8 long | 2 |
2 |
2 |
125 | 1591 | Hexagon nut M 8x25 Din 933 | 1 |
1 |
1 |
126 | 1692 | Securing nut NM 8 Din 980 | 1 |
1 |
1 |
127 | 1734 | Washer B 8.4 Din 125 | 6 |
6 |
6 |
128 | 1592 | Hexagon screw M 8x30 Din 933 | 2 |
2 |
2 |
129 | 1511 | Spring ring B 8 Din 128 | 2 |
2 |
2 |
130 | 6254 | Set motormount bolts consisting of | |||
Pos. 131, 132, 133 | 1 |
1 |
1 |
||
131 | 1610 | Hexagon screw M 8x120 Din 931 | 2 |
2 |
2 |
132 | 1734 | Washer B 8.4 Din 125 | 4 |
4 |
4 |
133 | 1700 | Nut NM 8 Din 980 | 2 |
2 |
2 |
134 | 6594 | Exhaust pipe cpl. | 1 |
- |
- |
6618 | Exhaust pipe cpl. | - |
1 |
1 |
|
135 | 6574 | Expansion chamber | 1 |
- |
- |
6609 | Expansion chamber | - |
1 |
1 |
|
136 | 6559 | Silencer cpl. | 1 |
- |
- |
6616 | Silencer cpl. | - |
1 |
1 |
|
137 | 6583 | Silencer housing | 1 |
- |
- |
6615 | Silencer housing | - |
1 |
1 |
|
138 | 6410 | Silencer end piece cpl. | 1 |
1 |
1 |
139 | 6420 | Exhaust packing | 1 |
1 |
1 |
140 | 6421 | Clamp for silencer | 1 |
1 |
1 |
141 | 896 | Asbestos cord | X |
X |
X |
142 | 6275 | Spring for exhaust | 1 |
1 |
1 |
143 | 6276 | Sleeve for exhaust spring | 1 |
1 |
1 |
144 | 1750 | Washer 6.4 Din 9021 | 1 |
1 |
1 |
145 | 1523 | Cyl. Head screw M 6x70 Din 912 | 1 |
1 |
1 |
146 | 1166 | Silent bloc f. exhaust | 1 |
1 |
1 |
147 | 1732 | Washer B 6.4 Din 125 | 2 |
2 |
2 |
148 | 1690 | Nut NM 6 Din 980 | 2 |
2 |
2 |
149 | 5430 | Asbestos washer | 4 |
4 |
4 |
150 | 1750 | Washer 6.4 Din 9021 | 2 |
2 |
2 |
151 | 1510 | Spring ring B 6 Din 128 | 1 |
1 |
1 |
152 | 1525 | Hexagon screw M 6x14 Din 933 | 1 |
1 |
1 |
153 | 1567 | Hexagon screw M 6x16 Din 933 | 1 |
1 |
1 |
154 | 5429 | Clamp | 1 |
1 |
1 |
155 | 5453 | Bush f. exhaust mount | 1 |
1 |
1 |
156 | 5345 | Rubber washer | 2 |
2 |
2 |
157 | 1759 | Washer 8.4 Din 9021 | 1 |
1 |
1 |
158 | 1591 | Hexagon screw M 8x25 Din 933 | 1 |
1 |
1 |
159 | 325 | Rubber cable clip | 8 |
8 |
8 |
160 | 6565 | Rubber plug | 2 |
2 |
2 |
161 | 6253 | Plastic screw | 2 |
2 |
2 |
162 | 6564 | Splash guard | 1 |
1 |
1 |
163 | 1567 | Hexagon screw M 6x16 Din 933 | 2 |
2 |
2 |
164 | 1750 | Washer 6.4 Din 9021 | 2 |
2 |
2 |
165 | 1732 | Washer B 6.4 Din 125 | 2 |
2 |
2 |
166 | 1690 | Nut NM Din 980 | 2 |
2 |
2 |
167 | 6465 | Fork leg cpl. | 2 |
2 |
2 |
168 | 6438 | Fork slider cpl. | 2 |
2 |
2 |
169 | 6435 | Fork slider | 2 |
2 |
2 |
170 | 6436 | Guide bush | 2 |
2 |
2 |
171 | 6437 | Circlip SB 46 | 2 |
2 |
2 |
172 | 1571 | Hexagon nut M 6x30 Din 931 | 4 |
4 |
4 |
173 | 1510 | Spring ring B 6 Din 128 | 4 |
4 |
4 |
174 | 6439 | Seal | 2 |
2 |
2 |
175 | 6440 | Circlip SB 55x1.5 | 2 |
2 |
2 |
176 | 6441 | Wiper | 2 |
2 |
2 |
177 | 6451 | Damper cpl. | 2 |
2 |
2 |
178 | 6442 | Damper tube | 2 |
2 |
2 |
179 | 6447 | Damper piston | 2 |
2 |
2 |
180 | 6448 | Washer 23.9x28.2x0.9 | 2 |
2 |
2 |
181 | 6449 | Retaining ring SW 24 | 2 |
2 |
2 |
182 | 6450 | Piston ring | 2 |
2 |
2 |
183 | 6452 | Stop spring soft | 2 |
2 |
2 |
184 | 6460 | Stop spring hard | 2 |
2 |
2 |
185 | 6453 | Valve seat | 2 |
2 |
2 |
186 | 6454 | Valve | 2 |
2 |
2 |
187 | 6455 | Damper insert | 2 |
2 |
2 |
188 | 6456 | Washer 29.9x36.7x0.2 | 2 |
2 |
2 |
189 | 6457 | Securing ring 37x1.5 Din 472 | 2 |
2 |
2 |
190 | 6458 | Bush f. damper | 2 |
2 |
2 |
191 | 6459 | Seal A 10x15 Din 7603 | 2 |
2 |
2 |
192 | 1655 | Socket screw M 10x25 Din 6912 | 2 |
2 |
2 |
193 | 6461 | Circlip SB 37 | 2 |
2 |
2 |
194 | 6462 | Fork cap cpl. | 2 |
2 |
2 |
195 | 6463 | Fork cap | 2 |
2 |
2 |
196 | 2184 | Valve cpl. | 2 |
2 |
2 |
197 | 2186 | Valve insert | 2 |
2 |
2 |
198 | 2187 | Valve cap | 2 |
2 |
2 |
199 | 277 | Seal A 8x11.5 Din 7603 | 2 |
2 |
2 |
200 | 6464 | O-ring 29.74x3.53 | 2 |
2 |
2 |
201 | 6466 | Fork tube | 2 |
2 |
2 |
202 | 6467 | Fork spring | 2 |
2 |
2 |
203 | 6468 | Spacer tube | 2 |
2 |
2 |
204 | 6457 | Circlip 37x1.5 Din 472 | 2 |
2 |
2 |
205 | 6469 | Lower cross head cpl. | 1 |
1 |
1 |
206 | 6470 | Lower cross head | 1 |
1 |
1 |
207 | 6471 | Steering tube | 1 |
1 |
1 |
208 | 3270 | Socket screw M 10x40 Din 6912 | 2 |
2 |
2 |
209 | 1512 | Spring ring | 2 |
2 |
2 |
210 | 6473 | Upper cross head | 1 |
1 |
1 |
211 | 3270 | Socket screw M 10x40 Din 6912 | 2 |
2 |
2 |
212 | 1512 | Spring ring B 10 Din 128 | 2 |
2 |
2 |
213 | 1648 | Socket screw M 8x40 Din 912 | 1 |
1 |
1 |
214 | 1511 | Spring ring B 8 Din 128 | 1 |
1 |
1 |
215 | 6474 | Steering head nut | 1 |
1 |
1 |
216 | 6475 | Screw plug | 1 |
1 |
1 |
217 | 6476 | Washer B 23 Din 125 | 1 |
1 |
1 |
218 | 6477 | Handle bar clamp low cpl. | 2 |
2 |
2 |
219 | 15 | Rubber buffer | 4 |
4 |
4 |
220 | 1735 | Washer B 10.5 Din 125 | 2 |
2 |
2 |
221 | 1693 | Nut M 10 Din 980 | 2 |
2 |
2 |
222 | 6478 | Handle bar clamp upper | 2 |
2 |
2 |
223 | 1628 | Socket screw M 8x25 Din 6912 | 4 |
4 |
4 |
224 | 3297 | Tapered roller bearing | 2 |
2 |
2 |
225 | 3296 | Nilos-ring | 2 |
2 |
2 |
226 | 6472 | Fork cpl. | 2 |
2 |
2 |
227 | 6257 | Cable holder cpl. | 1 |
1 |
1 |
228 | 6258 | Cable clamp | 1 |
1 |
1 |
229 | 6255 | Cable clamp | 1 |
1 |
1 |
230 | 1565 | Hexagon screw M 6x12 Din 933 | 1 |
1 |
1 |
231 | 1510 | Spring ring B 6 Din 128 | 1 |
1 |
1 |
232 | 6144 | Front brake plate cpl. | 1 |
1 |
1 |
233 | 2236 | Front brake plate w. bush | 1 |
1 |
1 |
234 | 2238 | Bushing | 1 |
1 |
1 |
235 | 2418 | Pivot bolt | 1 |
1 |
1 |
236 | 2419 | Brake toggle | 1 |
1 |
1 |
237 | 1322 | Brake shoe | 2 |
2 |
2 |
238 | 6148 | Spring for brake shoe | 2 |
2 |
2 |
239 | 187 | Rubber washer | 1 |
1 |
1 |
240 | 6145 | Bake arm front | 1 |
1 |
1 |
241 | 1510 | Spring washer B 6 Din 128 | 1 |
1 |
1 |
242 | 1570 | Hexagon screw M 6x25 Din 933 | 1 |
1 |
1 |
243 | 6146 | Front wheel cpl. | 1 |
1 |
1 |
244 | 2240 | Front wheel w. tire | 1 |
1 |
1 |
245 | 2235 | Front wheel | 1 |
1 |
1 |
246 | 2234 | Front hub cpl. | 1 |
1 |
1 |
247 | 2233 | Front hub | 1 |
1 |
1 |
248 | 2428 | Spacer tube | 1 |
1 |
1 |
249 | 2427 | Ball bearing 6202 | 2 |
2 |
2 |
250 | 1853 | Lock ring 35x1.5 Din 472 | 1 |
1 |
1 |
251 | 3497 | Akront rim | 1 |
1 |
1 |
252 | 2432 | Front spoke right | 18 |
18 |
18 |
253 | 2433 | Front spoke left | 18 |
18 |
18 |
254 | 2242 | Nipple | 36 |
36 |
36 |
255 | 168 | Tire holder front | 1 |
1 |
1 |
256 | 2568 | Tire holder plate cpl. | 1 |
1 |
1 |
257 | 1734 | Washer B 8.4 Din 125 | 1 |
1 |
1 |
258 | 289 | Nut for tire holder | 1 |
1 |
1 |
259 | 2001 | Tire flap 21" | 1 |
1 |
1 |
260 | 2002 | Tube 3.00x21" | 1 |
1 |
1 |
261 | 2003 | Tire 3.00x21" | 1 |
1 |
1 |
262 | 2247 | Front axle cpl. | 1 |
1 |
1 |
263 | 2250 | Spacer bush | 1 |
1 |
1 |
264 | 2430 | Threaded bush | 1 |
1 |
1 |
265 | 1594 | Hexagon screw M 8x40 Din 931 | 1 |
1 |
1 |
266 | 1734 | Washer B 8,4 Din 125 | 2 |
2 |
2 |
267 | 1692 | Nut NM 8 Din 980 | 1 |
1 |
1 |
268 | 1589 | Hexagon screw M 8x20 Din 933 | 1 |
1 |
1 |
269 | 1714 | Spring washer B 8 Din 137 | 1 |
1 |
1 |
270 | 6147 | Brake stay | 1 |
1 |
1 |
271 | 6290 | Rear wheel cpl. | 1 |
1 |
1 |
272 | 3186 | Brake plate cpl. | 1 |
1 |
1 |
273 | 3045 | Brake plate w. pressed parts | 1 |
1 |
1 |
274 | 3187 | Brake place only | 1 |
1 |
1 |
275 | 183 | Spacer bush | 2 |
2 |
2 |
276 | 3188 | Cover plate | 1 |
1 |
1 |
277 | 3189 | Pivot bolt | 1 |
1 |
1 |
278 | 1901 | Oval head nail 3x8 Din 1476 | 1 |
1 |
1 |
279 | 151 | Brake toggle cpl. | 1 |
1 |
1 |
280 | 188 | Brake shoe | 2 |
2 |
2 |
281 | 1323 | Tension Spring | 2 |
2 |
2 |
282 | 3270 | Socket screw M 10x40 Din 6912 | 1 |
1 |
1 |
283 | 1715 | Spring washer B 10 Din 137 | 1 |
1 |
1 |
284 | 1674 | Nut M 10 Din 934 | 1 |
1 |
1 |
285 | 187 | Rubber washer | 1 |
1 |
1 |
286 | 3190 | Rear brake lever | 1 |
1 |
1 |
287 | 1734 | Washer B 8,4 Din 125 | 1 |
1 |
1 |
288 | 1692 | Securing nut NM 8 Din 980 | 1 |
1 |
1 |
289 | 1735 | Washer B 10.5 Din 125 | 1 |
1 |
1 |
290 | 1693 | Hexagon nut NM 10 Din 980 | 1 |
1 |
1 |
291 | 2434 | Tire holder rear cpl. | 1 |
1 |
1 |
292 | 2567 | Tire holder plate | 1 |
1 |
1 |
293 | 1734 | Washer B 8,4 Din 125 | 1 |
1 |
1 |
294 | 289 | Nut for tire holder | 1 |
1 |
1 |
295 | 3875 | Rear hub cpl. | 1 |
1 |
1 |
296 | 3868 | Rear hub | 1 |
1 |
1 |
297 | 3872 | Spacer tube cpl. | 1 |
1 |
1 |
298 | 205 | Ball bearing 6303 RS C 3 | 2 |
2 |
2 |
299 | 1852 | Spring ring 47x1.75 | 2 |
2 |
2 |
300 | 3876 | Rear wheel | 1 |
1 |
1 |
301 | 2405 | Rim | 1 |
1 |
1 |
302 | 2406 | Spoke rear, right | 18 |
18 |
18 |
303 | 2407 | Spoke rear, left | 18 |
18 |
18 |
304 | 2408 | Nipple | 36 |
36 |
36 |
305 | 3343 | Rear wheel + 56 + tire | 1 |
1 |
1 |
306 | 2005 | Rim strap 18" | 1 |
1 |
1 |
307 | 2015 | Tube 4.50x18" | 1 |
1 |
1 |
308 | 2008 | Tire 4.50x18" | 1 |
1 |
1 |
309 | 3227 | Sprocket 56T | 1 |
1 |
1 |
310 | 2200 | Sprocket 54T | 1 |
1 |
1 |
311 | 1713 | Spring washer B 7 Din 137 | 16 |
16 |
16 |
312 | 3280 | Hexagon screw M 7x40 Din 933 | 6 |
6 |
6 |
313 | 1691 | Hexagon nut NM 7 Din 980 | 6 |
6 |
6 |
314 | 3277 | Rear axle cpl. | 1 |
1 |
1 |
315 | 1709 | Hexagon nut NM 16x1.5 Din 980 | 1 |
1 |
1 |
316 | 3880 | Spacer ring | 1 |
1 |
1 |
317 | 6287 | Chain adjuster | 2 |
2 |
2 |
318 | 1670 | Nut M 8 Din 934 | 4 |
4 |
4 |
319 | 6493 | Front fender | 1 |
1 |
1 |
320 | 1569 | Hexagon screw M 6x20 Din 933 | 4 |
4 |
4 |
321 | 1750 | Washer 6.4 Din 9021 | 4 |
4 |
4 |
322 | 2708 | Rubber washer | 4 |
4 |
4 |
323 | 2456 | Throttle cable | 1 |
1 |
1 |
324 | 6150 | Clutch cable | 1 |
1 |
1 |
325 | 6530 | Brake cable | 1 |
1 |
1 |
326 | 2275 | Hose B 8x0.7 Din 40621 | X |
X |
X |
327 | 6151 | Cable holder | 1 |
1 |
1 |
328 | 6152 | Bol | 1 |
1 |
1 |
329 | 6153 | Clip for bolt | 1 |
1 |
1 |
330 | 1857 | Split pin 3.2x25 Din 94 | 1 |
1 |
1 |
331 | 315 | Decompression cable | - |
1 |
1 |
332 | 6498 | Handle bar, low | 1 |
1 |
1 |
333 | 6280 | Throttle grip cpl | 1 |
1 |
1 |
334 | 6283 | Throttle housing cpl. | 1 |
1 |
1 |
335 | 6282 | Tube with grip | 1 |
1 |
1 |
336 | 2148 | Rubber grip | 1 |
1 |
1 |
337 | 6284 | Cam | 1 |
1 |
1 |
338 | 2211 | Adjusting screw | 1 |
1 |
1 |
339 | 2212 | Rubber cap | 1 |
1 |
1 |
340 | 2215 | Hand clutch lever cpl. | 1 |
1 |
1 |
341 | 2213 | Hinge for clutch lever | 1 |
1 |
1 |
342 | 2216 | Clutch lever blade | 1 |
1 |
1 |
343 | 133 | Lever screw | 1 |
1 |
1 |
344 | 212 | Adjusting nut | 1 |
1 |
1 |
345 | 2218 | Hand brake lever cpl. | 1 |
1 |
1 |
346 | 2217 | Hinge for brake lever | 1 |
1 |
1 |
347 | 2219 | Hand brake lever | 1 |
1 |
1 |
348 | 133 | Lever screw w. nut | 1 |
1 |
1 |
349 | 212 | Adjusting nut | 1 |
1 |
1 |
350 | 2220 | Kill button | 1 |
1 |
1 |
351 | 2221 | Rubber cap | 1 |
1 |
1 |
352 | 2512 | Rubber cap | 1 |
1 |
1 |
353 | 3166 | Lever cover | 2 |
2 |
2 |
354 | 148 | Lever f. decompressor cpl. | - |
1 |
1 |
355 | 1978 | Rear brake plate | 1 |
1 |
1 |
356 | 1591 | Hexagon screw M 8x25 Din 933 | 1 |
1 |
1 |
357 | 1734 | Washer B 8,4 Din 125 | 2 |
2 |
2 |
358 | 1692 | Nut NM 8 Din 980 | 1 |
1 |
1 |
359 | 2281 | Chain | 1 |
1 |
1 |
360 | 6480 | Cover tray | 1 |
1 |
1 |
361 | 6532 | Sticker MC 250 | 1 |
- |
- |
6601 | Sticker MC 400 | - |
1 |
- |
|
6623 | Sticker MC 440 | - |
- |
1 |
