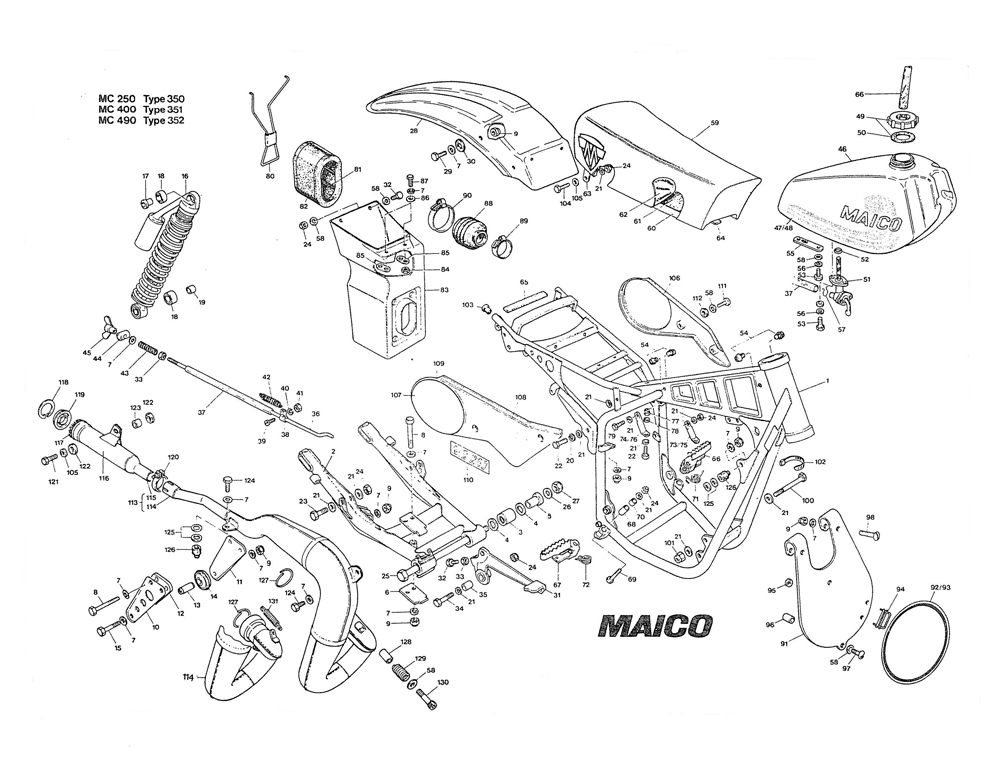

Picture | Part | Description | MC |
MC |
MC |
No. | No. | 250 |
400 |
490 |
|
Quantity |
|||||
1 | 6627 | Frame cpl | 1 |
1 |
1 |
2 | 6651 | Swing arm | 1 |
1 |
1 |
3 | 3932 | Needle cage HK 2030 | 2 |
2 |
2 |
4 | 1930 | O ring | 4 |
4 |
4 |
5 | 1931 | Bush for swing arm | 2 |
2 |
2 |
6 | 1932 | Guide plate for swing arm | 30 |
30 |
30 |
7 | 1732 | Washer B 6.4 Din 125 | 3 |
3 |
3 |
8 | 1575 | Hexagon screw M 6x60 Din 931 | 13 |
13 |
13 |
9 | 1690 | Hexagon nut NM 6 Din 980 | 1 |
1 |
1 |
10 | 1933 | Chain guide plate right hand | 1 |
1 |
1 |
11 | 1934 | Chain guide plate left hand | 2 |
2 |
2 |
12 | 1935 | Plastic plate for chain guide | 3 |
3 |
3 |
13 | 1936 | Spacer bush for chain guide | 2 |
2 |
2 |
14 | 1937 | Roller for chain guide | 1 |
1 |
1 |
15 | 1500 | Hexagon screw M 6x40 Din 931 | 2 |
2 |
2 |
16 | 6650 | Damper cpl | nB |
nB |
nB |
6775 | Spring set black - hard | nB |
nB |
nB |
|
6777 | Spring set gold - soft | nB |
nB |
nB |
|
6765 | Spring set red - medium | nB |
nB |
nB |
|
6773 | Set piston shaft 8E - sand | nB |
nB |
nB |
|
6767 | Set piston shaft 2H - GP | nB |
nB |
nB |
|
6772 | Set piston shaft 5G - Enduro | nB |
nB |
nB |
|
17 | 6658 | Bush | 2 |
2 |
2 |
18 | 6659 | Slent bloc | 4 |
4 |
4 |
19 | 6679 | Bush | 2 |
2 |
2 |
20 | 1705 | Spring ring B 8 Din 127 | 2 |
2 |
2 |
21 | 1734 | Washer B 8,4 Din 125 | 23 |
23 |
23 |
22 | 1594 | Hexagon screw M 8x40 Din 931 | 4 |
4 |
4 |
23 | 1595 | Hexagon screw M 8x45 Din 931 | 2 |
2 |
2 |
24 | 1692 | Securing nut NM 8 Din 980 | 6 |
6 |
6 |
25 | 3937 | Swing arm spindle | 1 |
1 |
1 |
26 | 1718 | Spring washer B 14 Din 137 | 1 |
1 |
1 |
27 | 5011 | Nut NM 14x1.5 Din 980 | 1 |
1 |
1 |
28 | 6669 | Rear fender | 1 |
1 |
1 |
29 | 1568 | Hexagon scrwe M 6x18 Din 933 | 4 |
4 |
4 |
30 | 2708 | Rubber washer | 4 |
4 |
4 |
31 | 6699 | Brake lever | 1 |
1 |
1 |
32 | 1569 | Hexagon screw M 6x20 Din 933 | 3 |
3 |
3 |
33 | 1667 | Hexagon nut M 6 Din 934 | 2 |
2 |
2 |
34 | 1599 | Hexagon screw M 8x60 Din 931 | 1 |
1 |
1 |
35 | 6702 | Bush for brake lever | 1 |
1 |
1 |
36 | 6703 | Rear brake rod | 1 |
1 |
1 |
37 | 406 | Hose | X |
X |
X |
38 | 237 | Clamp | 1 |
1 |
1 |
39 | 1527 | Cylinder head screw M 4x10 Din 84 | 1 |
1 |
1 |
40 | 1702 | Spring ring B 4 Din 127 | 1 |
1 |
1 |
41 | 1665 | Hexagon nut M 4 Din 934 | 1 |
1 |
1 |
42 | 236 | Extension spring | 1 |
1 |
1 |
43 | 242 | Compression Spring | 1 |
1 |
1 |
44 | 244 | Nipple holder | 1 |
1 |
1 |
45 | 243 | Wing nut | 1 |
1 |
1 |
46 | 6713 | Tank with decal | 1 |
1 |
1 |
47 | 6714 | Tank decal left | 1 |
1 |
1 |
48 | 6715 | Tank decal right | 1 |
1 |
1 |
49 | 6515 | Tank cap cpl | 1 |
1 |
1 |
50 | 6516 | Sealing ring | 1 |
1 |
1 |
51 | 6509 | Pet cock | 1 |
1 |
1 |
52 | 6510 | O-ring | 1 |
1 |
1 |
53 | 1525 | Hexagon nut M 6x14 Din 933 | 4 |
4 |
4 |
54 | 6531 | Rubber stop | 4 |
4 |
4 |
55 | 6511 | Holding plate for tank | 1 |
1 |
1 |
56 | 1704 | Spring ring B 6 Din 127 | 4 |
4 |
4 |
57 | 2832 | Hose clip | 2 |
2 |
2 |
58 | 1750 | Washer B 6,4 Din 9021 | 12 |
12 |
12 |
59 | 6723 | Seat cpl | 1 |
1 |
1 |
6726 | Seat cpl high | nB |
nB |
nB |
|
60 | 6720 | Seat base | 1 |
1 |
1 |
61 | 6724 | Seat foam | 1 |
1 |
1 |
6727 | Seat foam high | nB |
nB |
nB |
|
62 | 6725 | Seat cover low | 1 |
1 |
1 |
6728 | Seat cover high | nB |
nB |
nB |
|
63 | 6721 | Seat bracket | 1 |
1 |
1 |
64 | 6722 | Clamp holder for seat | 1 |
1 |
1 |
65 | 6759 | Rubber strap adhesive | X |
X |
X |
66 | 6731 | Foot peg left | 1 |
1 |
1 |
67 | 6725 | Foot peg right | 1 |
1 |
1 |
68 | 6738 | Bush for foot peg | 2 |
2 |
2 |
69 | 1597 | Hexagon screw M 8x55 Din 931 | 2 |
2 |
2 |
70 | 6750 | Spacer bush | 2 |
2 |
2 |
71 | 6739 | Foor peg spring left | 1 |
1 |
1 |
72 | 6740 | Foot peg spring right | 1 |
1 |
1 |
73 | 6741 | Cylinder head stay left | 1 |
- |
- |
74 | 6742 | Cylinder head stay right | 1 |
- |
- |
75 | 6660 | Cylinder head stay left | - |
1 |
1 |
76 | 6661 | Cylinder head stay right | - |
1 |
1 |
77 | 78 | Hexagon nut long M 8,14mm | 2 |
2 |
2 |
78 | 1511 | Spring ring B 8 Din 128 | 2 |
2 |
2 |
79 | 1589 | Hexagon screw M 8x20 Din 933 | 2 |
2 |
2 |
80 | 6540 | Holding wire | 1 |
1 |
1 |
81 | 6544 | Air filter cage | 1 |
1 |
1 |
82 | 6545 | Air filter foam | 1 |
1 |
1 |
83 | 6743 | Air box | 1 |
1 |
1 |
84 | 1690 | Hexagon nut NM 6 Din 980 | 4 |
4 |
4 |
85 | 6729 | Hook | 2 |
2 |
2 |
86 | 3529 | Washer | 2 |
2 |
2 |
87 | 1570 | Hexagon screw M 6x25 Din 933 | 2 |
2 |
2 |
88 | 343 | Intake manifold | 1 |
1 |
1 |
89 | 683 | Clamp | 1 |
1 |
1 |
90 | 348 | Clamp | 1 |
1 |
1 |
91 | 6555 | Front No. panel | 1 |
1 |
1 |
92 | 6252 | Number plate decal, Green front | 1 |
- |
- |
93 | 6261 | Number plate decal, Yellow front | - |
1 |
1 |
94 | 6247 | Cable guide | 1 |
1 |
1 |
95 | 6265 | Sprint nut | 2 |
2 |
2 |
96 | 3094 | Sliding roller | 2 |
2 |
2 |
97 | 6253 | Plastic screw M 6x30 | 2 |
2 |
2 |
98 | 3711 | Plastic screw M 6x22 | 2 |
2 |
2 |
99 | 6254 | Set motormount belts, parts of | 1 |
1 |
1 |
pic no. 100.4 x21,101 | |||||
100 | 1610 | Hexagon screw | 2 |
2 |
2 |
101 | 1700 | M 8x120 Din 980 | 2 |
2 |
2 |
102 | 325 | Rubber cable clip | 8 |
8 |
8 |
103 | 6565 | Rubber plug | 2 |
2 |
2 |
104 | 1587 | Hexagon screw M 8x16 Din 933 | 2 |
2 |
2 |
105 | 1759 | Washer B 8,4 Din 9021 | 3 |
3 |
3 |
106 | 6746 | Side panel left | 1 |
1 |
1 |
107 | 4153 | Green number plate decal | 2 |
- |
- |
4152 | Yellow number plate decal | - |
2 |
2 |
|
108 | 6752 | Decal right | 1 |
1 |
1 |
6730 | Decal left | 1 |
1 |
1 |
|
109 | 6749 | Side panel right | 1 |
1 |
1 |
110 | 6747 | Sticker 250 | 1 |
- |
- |
6663 | Sticker 400 | - |
1 |
- |
|
6755 | Sticker 490 | - |
- |
1 |
|
111 | 5050 | Screw M 6x16 Din 7985 | 4 |
4 |
4 |
112 | 2708 | Rubber washer | 4 |
4 |
4 |
113 | 6860 | Exhaust system cpl | 1 |
- |
- |
6856 | Exhaust system cpl | - |
1 |
1 |
|
114 | 6861 | Exhaust system | 1 |
- |
- |
6844 | Exhaust system | - |
1 |
1 |
|
115 | 6862 | Silencer cpl | 1 |
- |
- |
6850 | Silencer cpl | - |
1 |
1 |
|
116 | 6863 | Silencer | 1 |
- |
- |
6846 | Silencer | - |
1 |
1 |
|
117 | 6864 | Exhaust packing | 1 |
- |
- |
6851 | Exhaust packing | - |
1 |
1 |
|
118 | 1884 | Securing ring 70x2.5 Din 472 | 1 |
1 |
1 |
119 | 6852 | Silencer end cap | 1 |
1 |
1 |
120 | 5474 | Clamp S 35/15 | 1 |
1 |
1 |
121 | 1591 | Hexagon screw M 8x25 Din 933 | 1 |
1 |
1 |
122 | 5345 | Rubber washer | 2 |
2 |
2 |
123 | 5453 | Bush for exhaust mount | 1 |
1 |
1 |
124 | 1567 | Hexagon screw M 6x16 Din 933 | 2 |
2 |
2 |
125 | 5430 | Asbestos washer | 4 |
4 |
4 |
126 | 1166 | Silentbloc for exhaust | 2 |
2 |
2 |
127 | 896 | Asbestos cord | X |
X |
X |
128 | 6276 | Sleeve for exhaust spring | - |
1 |
1 |
129 | 6275 | Spring for exhaust | - |
1 |
1 |
130 | 1523 | Socket screw M 6x70 Din 912 | - |
1 |
1 |
131 | 6866 | Spring for exhaust | 2 |
- |
- |
X=Yard goods | |||||
nB=as needed |
