1975½ Chassis Parts List

 Back to 1975½ Diagrams1975½ CHASSIS PARTS LIST142 parts — Models: 250 / 400 / 440
Engine →Frame →

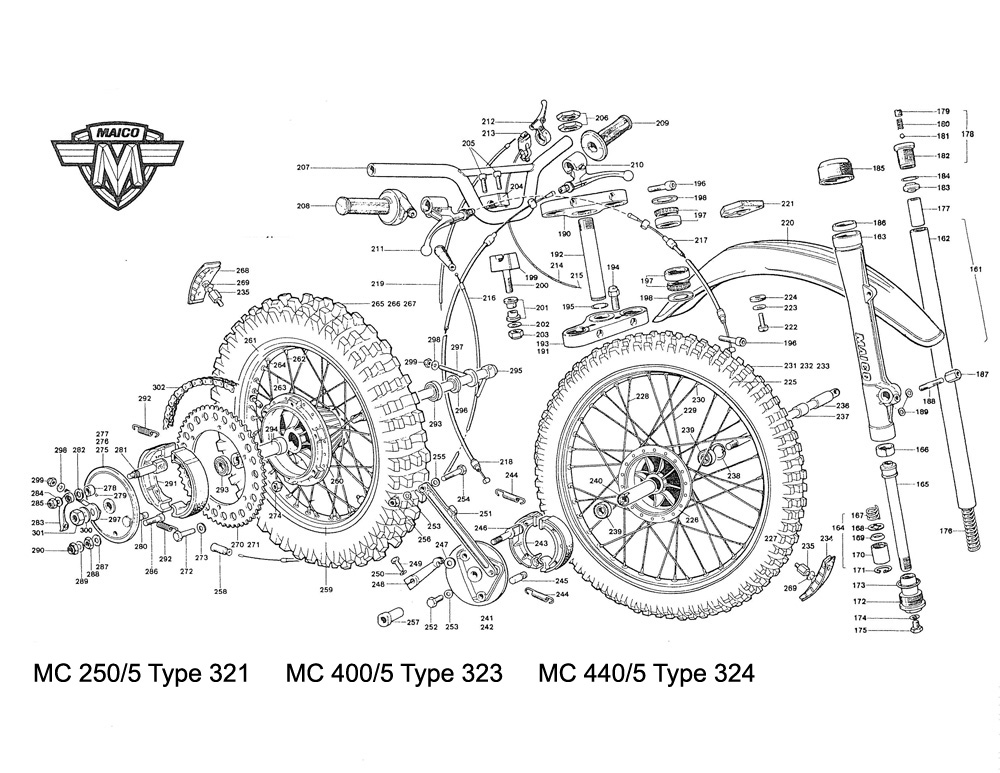

Click to enlarge
Item No.PART NO.DESCRIPTION250400440
1613379Telescopic fork cpl111
1623380Fork tube222
1633357Fork slider222
1643364Damper cpl222
1653362Damper tube222
1663370Damper piston ring222
16758Damper spring222
1683369Valve seat222
1693368Valve222
1703367Damper insert222
1713366Locking ring 34x1.5 Din 472222
1723365Damper cone222
17380O ring 29 x 2.5222
174430Sealing ring A 8x14 Din 7603222
1751585Hexagon screw M 8x10222
1763384Fork spring222
1773385Spacer tube222
1783376Breather screw cpl222
1791785Stud M 8x6 D 551 5 8222
18075Valve spring222
1811873Ball 6222
1823377Breather screw222
1833378Breather screw ring222
18480O ring 29 x 2.5222
1853360Wiper222
1863359Fork seal222
18778Hexagon nut M 8 Din 6330222
1881772Stud M 8x25 Din 835222
1891734Washer B 8 4 Din 125222
1903381Upper cross head111
1913371Lower cross head cpl111
1923373Steering tube111
1933372Lower cross head111
194226Locking bolt222
1953375Spring ring A 26 Din 7993111
1961657Socket screw M 10x40 Din 912444
1973297Roller bearing222
1983296Nilos ring222
19990Handlebar clamp lower222
2001661Socket screw M 10x60 Din 6912222
20115Rubber buffer444
2021758Washer 25x10x2222
2031693Hexagon nut M 10 Din 985222
20488Handlebar clamp upper222
2051646Socket screw M 8x30 Din 912444
2063533Hexagon nut222
2073784Handlebar111
2082511Throttle grip111
2092512Rubber grip111
210145Clutch lever111
211146Brake lever111
212148Decompression lever-11
213571Kill button111
2142608Isolation hose111
2152618Cable111
2162456Throttle cable111
217486Brake cable111
218311Clutch cable111
219305Cable for decompressor111
220131Front fender111
2213382Rubber pad111
2221536Cylinder head screw M 6x25 Din 84444
2231750Washer A 6.4 Din 9021444
224126Rubber washer444
2252426Front wheel cpl (with tire)111
2262420Conical front drum111
2273497Alum front rim 1.60x21111
2282432Front spokes short181818
2292433Front spokes long181818
230210Spoke nipple363636
2312003Tire 3.00x21111
2322002Air tube 3.00x21111
233167Rim strap111
234168Tire holder front cpl111
235289Nut for tire holder222
236169Front axle111
2372429Distance bush111
2381853Lock ring 35x1.5 Din 472111
2392427Ball bearing 6202 RS Din 625222
2402428Spacer tube111
2412416Front brake plate cpl111
2422417Front brake plate111
2431322Brake shoe222
2441323Tension spring222
2452418Pivot bolt111
2462419Brake toggle111
247187Rubber washer111
2481324Front brake lever111
2491569Hexagon screw M 6x20 Din 933111
2501704Spring washer B 6 Din 127111
2512424Front brake rod111
2521589Hexagon screw M 8x20 Din 933111
2531714Spring washer B 8 Din 931222
2541594Hexagon Screw M 8x40 Din 931111
2551734Washer B 8.4 Din 125111
2561692Hexagon nut M 8 Din 985111
2572430Threaded bush111
2581127Hermetical cover111
2593785Rear wheel cpl (with tire)111
2603278Rear brake drum111
2613228Alum rear rim 2.75x18111
2623198Rear spokes short181818
2633199Rear spokes long181818
264210Spoke nipple363636
2652008Tire 4.50x18111
2662015Air tube 4.50x18111
2672005Rim strap111
2682434Tire holder rear111
2691734Washer B 8.4 Din 125222
2703227Sprocket 56 T111
271288Sprocket 52 T (optional)111
2723280Hexagon screw M 7x40 Din 933666
2731713Spring Washer B 7 Din 137666
2741691Hexagon nut M 7 Din 985666
2753186Rear brake plate cpl111
2763187Rear brake plate111
2773188Cover plate111
278183Distance bush111
2791901Oval head nail 3x8 Din 1476111
2803189Pivot bolt111
281151Brake toggle111
282187Rubber washer111
2833190Brake lever111
2841734Washer B 8.4 Din 125111
2851692Hexagon nut M 8 Din 985111
2863270Socket screw M 10x40 Din 6912111
2871715Washer B 10 Din 137111
2881674Hexagon nut M 10 Din 933111
2891735Washer B 10.5 Din 125111
2901693Hexagon nut M 10 Din 985111
291188Brake shoe222
292189Tension spring222
293205Ball bearing 6303 2 RS C 3222
2943276Spacer tube111
2953277Rear axle111
2963196Spacer bush111
297223Chain adjuster222
2981734Washer nut 8.4 Din 125222
2991692Hexagon nut M 8 Din 985222
3001739Washer B 17 Din 1440111
3011683Hexagon nut111
3023708Chain with master link 5/8x1/4111
