1975½ Frame Parts List

 Back to 1975½ Diagrams1975½ FRAME PARTS LIST153 parts — Models: 250 / 400 / 440
Engine →Chassis →

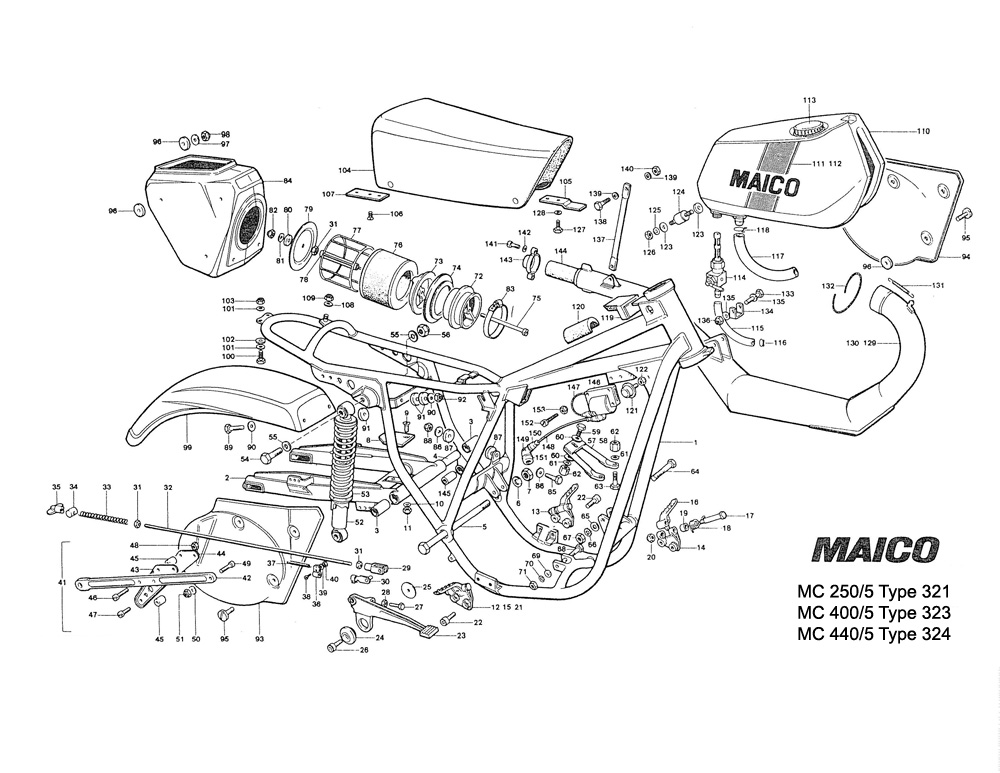

Click to enlarge
Item No.PART NO.DESCRIPTION250400440
13648Frame cpl111
23490Swing arm cpl111
3108Silent bloc222
43482Spacer tube for swing arm111
53491Swing arm spindle111
61754Washer111
7111Nut for swing arm spindle M 14x1.5111
83488Swing arm plastic pad111
91812Head screw M 6x16 Din 964222
101732Washer B 6.5 Din 125222
111690Hexagon nut M 6 Din 985222
123779Foot rest right hand cpl111
133780Foot rest left hand cpl111
143564Foot rest base plate left hand111
153567Foot rest base plate right hand111
163563Foot rest222
173569Bolt M 8x58x70222
183568Foot rest return spring left hand111
193565Bush222
201682Self locking nut M 8 Din 985222
213566Foot rest return spring right hand111
221655Socket screw M 10x25444
23539Brake pedal alloy111
24540Outside collar for brake pedal111
25543Washer for brake pedal111
261646Socket screw M 8x30 Din 912111
271570Hexagon screw M 6x25 Din 933111
281667Hexagon nut M 6 Din 934111
29241Fork joint111
30250Bolt111
311667Hexagon nut M 6 Din 934333
323223Brake rod111
33242Spring111
34244Nipple111
35243Wing nut111
36237Clamp111
37236Spring111
381527Cylinder head screw111
391702Spring washer B 8 Din 127111
401667Hexagon nut M 6 Din 934111
413505Chain guide cpl111
423506Rear brake stopper arm111
433092Chain guide plate right hand111
443093Chain guide plate left hand111
453094Rollers333
461594Cylinder head screw M 6x40 Din 84222
471550Cylinder head screw M 6x30 Din 84111
481690Hexagon nut M 6 Din 985333
491652Hexagon nut M 8x20 Din 6912111
501734Washer B 8.4 Din 125111
511692Hexagon nut M 8 Din 985111
522600Koni shocks (without springs)222
532409Spring222
541594Hexagon nut M 8x40 Din 931444
551734Washer B 8.4 Din 125888
561692Hexagon nut M 8 Din 985444
573697Support for cylinder1--
583781Support for cylinder-11
591589Hexagon screw M 8x20 Din 933111
601749Washer222
611714Spring washer B 8 Din 137333
6278Hexagon nut M 8 Din 6330333
631592Hexagon nut M 8x30 Din 933222
641626Hexagon screw M 10x1.25x60222
651735Washer B 10 Din 125222
661721Toothed washer A 10.5 Din 6797222
671678Hexagon nut M 10x1.25 Din 6797222
681599Hexagon screw M 8x60 Din 125111
691734Washer B 8.4 Din 125111
701720Toothed washer A 8.4 Din 6797111
7178Hexagon nut M 8 Din 6330111
723182Flange for air box outside111
733183Air box ring111
742485Rubber ring for filter box111
753758Cylinder screw M 6x130 Din 84111
763181Foam filter111
773164Air filter body111
783184Spacer tube111
79342Cover for air filter111
80126Rubber washer111
813730Washer111
821690Hexagon nut M 6 Din 985111
83348Clamp111
843180Air box111
851569Hexagon screw M 6x20222
863730Washer444
87126Rubber washer444
881667Nut M 6 Din 934222
891571Hexagon screw M 6x30222
903730Washer444
91126Rubber washer666
921667Nut M 6 Din 934222
933709Number plate right hand111
943710Number plate left hand111
953711Flat head screw M 6x22666
96126Rubber washer121212
973730Washer666
981667Hexagon nut M 6 Din 934666
99141Rear fender111
1001568Hexagon screw M 6x18 Din 933222
1011732Washer B 6.4 Din 125444
102126Rubber washer222
1031690Hexagon nut M 6 Din 985222
1043285Seat cpl111
105286Clamp holder for seat111
1061812Oval head screw222
107287Seat holding plate111
1081734Washer B 8.4 Din 125111
1091692Hexagon nut M 8 Din 985111
1103519Tank111
1113520Maico Emblem left hand111
1123521Maico emblem right hand111
1133429Tank cap111
1142831Fuel cock111
1153523Fuel line111
1162832Fuel line clip222
1173524Fuel line111
1183525Fuel line clip111
1193526Tank mount rubber111
1203527Rubber pad for tank222
1213528Moulded rubber mount222
1221690Hexagon nut M 6 Din 985222
1233529Washer444
1241062Moulded rubber mount222
1251732Washer B 6.4 Din 125222
1261690Hexagon nut M 6 Din 985444
1271567Hexagon screw M 6x16 Din 933222
1281704Spring washer B 6 Din 127222
1293612Exhaust system cpl1--
1303517Exhaust system cpl-11
131189Tension spring111
132896Asbestos cord111
1331595Hexagon screw M 8x45 Din 931111
1343514Exhaust strap111
1351734Washer B 8.4 Din 125222
1361692Hexagon nut M 8 Din 985111
1373611Exhaust brace111
1381567Hexagon screw M 6x16 Din 933222
1391732Washer B 6.4444
1401690Hexagon nut M 6 Din 985222
1411550Cylinder head screw M 6x30 Din 84222
1421704Spring washer B 6 Din 127222
1433516End piece111
1443557Exhaust packing111
1453214Silent bloc111
1461124Ignition coil111
147605Ground cable111
148589High tension lead111
149599Cable plug111
150600Rubber sleeve222
151601Rubber sleeve111
1521530Cylinder head screw M 5x25 Din 84222
1531689Hexagon nut M 5 Din 985222
