1977 Chassis Parts List

 Back to 1977 Diagrams1977 CHASSIS PARTS LIST154 parts — Models: 250 / 400 / 440
Frame →Engine →

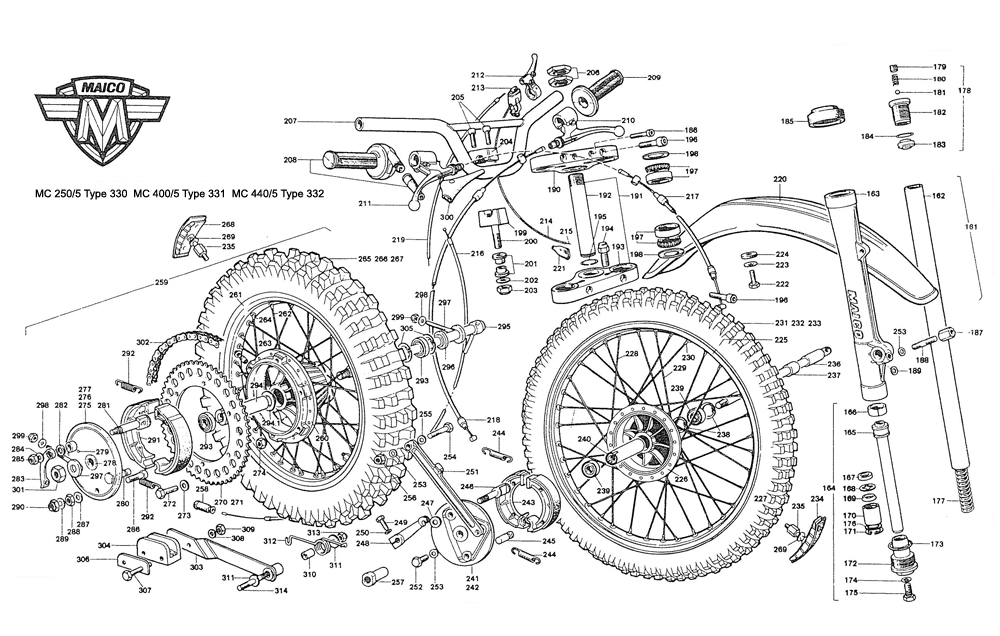

Click to enlarge
Item No.PART NO.DESCRIPTION250400440
1615188Telescopic fork cpl111
1623790Fork main tube222
1633906Fork slider tube222
1645353Damper cpl222
1655351Damper tube (235)222
1663789Damper piston ring222
1673913Damper ring for damper222
1683369Valve seat222
1693368Valve222
1703367Damper insert222
1713366Locking ring 34 c 1.5 Din 472222
1725354Damper cone222
17380O ring 29 x 2.5222
174430Sealing ring A 8x14 Din 7603222
1751591Hexagon screw M 8x10 Din 933222
1763777Spacer washer 0.3 mm (3778/0.5mm)222
1773916Fork spring 4.6 soft (marked white)222
1783376Breather screw cpl222
1791785Stud222
18075Valve spring222
1811873Ball 6222
1823377Breather screw222
1833378Breather screw plug222
18480O ring 29 x 2.5222
1853907Wiper222
1861650Socket screw M 8x60 Din 912222
18778Hexagon nut M 8 Din 6330222
1881772Stud M 8x25 Din 835222
1891734Washer B 8.4 Din 125222
1903381Upper cross head111
1913371Lower cross head cpl (with steering tube)111
1923373Steering tube111
1933372Lower cross head111
194226Locking bolt222
1953375Spring ring A 26 Din 7993111
1961657Socket screw M 10x40 Din 912444
1973297Roller bearing L 44649-610222
1983296Nilos ring222
19990Handlebar clamp lower222
2001661Socket screw M 10x60 Din 6912222
20115Rubber buffer444
2021758Washer222
2031693Hexagon nut M 8x30 Din 912222
20488Handlebar clamp upper222
2051646Socket screw M 8x30 Din 912444
2063533Hexagon nut222
2073784Handlebar, high111
2082511Twist grip cpl (with adjusting screw and rubber sleeve)111
2092512Rubber grip111
210145Clutch lever cpl111
211146Brake lever cpl111
212148Decompression lever cpl-11
213571Kill button111
2142608Isolation hose111
2152618Cable111
2162456Throttle cable111
217486Brake cable111
218311Clutch cable111
219305Cable for decompressor-11
22034Front fender (red)111
2221569Hexagon screw M 6x20 Din 933444
2231750Washer A 6.4 Din 9021444
2242708Rubber washer444
2253964Front wheel cpl (with tire)111
2263959Front drum (magnesium)111
2273497Alum. Front rim 1.60x21"111
2282432Spoke for front wheel right side (200mm)181818
2292433Spoke for front wheel left side (243 mm)181818
230210Spoke nipple M 4363636
2312003Tire 3.00x21"111
2322002Air tube 3.00x21"111
2332001Rim strap111
234168Tire holder front cpl111
235289Nut for tire holder222
236169Front axle111
2372429Spacer bush111
2381853Lock ring 35x1.5 Din 472222
2392427Ball bearing 6202 RS din 625222
2402428Spacer tube111
2412416Front brake plate cpl111
2422417Front brake plate only111
2431322Brake shoe222
2441323Tension spring222
2452418Pivot bolt111
2462419Brake toggle111
247187Rubber washer111
2481324Front brake lever111
2491569Hexagon screw M 6x20 Din 933111
2501704Lock washer B 6 Din 1277111
2512424Front brake rod111
2521589Hexagon screw M 8x20 Din 933111
2531714Lock washer B 8 Din 1377444
2541594Hexagon screw M 8x40 Din 931111
2551734Washer B 8.4 Din 125111
2561692Hexagon nut NM 8 Din 980111
2572430Threaded bush111
258651Rubber sheet111
2593883Rear wheel cpl (with tire, brake plate, axle and sprocket)111
2603868Rear brake drum (magnesium)111
2613228Rear rim aluminium 2.15x18"111
2623198Spokes for rear wheel right side (139 mm)181818
2633199Spokes for rear wheel left side (196 mm)181818
264210Spoke nipple363636
2652008Tire 4.50x18"111
2662015Air tube 4.50x18"111
2672005Rim strap111
2682434Tire holder rear cpl with nut111
2691734Washer B 8.4 Din 125222
2703227Sprocket 56T111
271288Sprocket 52T(1)(1)(1)
2723280Hexagon screw M 7x40 Din 933666
2731713Spring washer B 7 Din 137666
2741691Hexagon nut NM 7 Din 980666
2753186Rear brake plate cpl111
2763187Rear brake plate111
2773188Cover plate111
278183Spacer bush222
2791901Oval head nail 3x8 Din 1476111
2803189Pivot bolt111
281151Brake toggle111
282187Rubber washer111
2833190Brake lever111
2841734Washer B 8.4 Din 125111
2851692Hexagon nut NM 8 Din 980111
2863270Socket screw M 10x40 Din 6912111
2871715Washer B 10.5 Din 137111
2881674Hexagon nut M 10 Din 934111
2891735Washer B 10.5 Din 125111
2901693Hexagon nut NM 10 Din 980111
291188Brake shoe222
2921323Tension spring222
293205Ball bearing 6303 2 RS C3222
2943873Spacer tube (109 mm for magn. Drum)111
294.13874Washer222
2953277Rear axle111
2963880Spacer ring (19.5 mm)111
297223Chain tensioner222
2981734Washer B 8.4 Din 125222
2991692Hexagon nut NM 8 Din 980222
3003142Cover for hand levers (magura)222
3011683Hexagon nut M 16x1.5 Din 934111
3023708Chain with master link 5/8x1/4" 118 links111
3035010Chain tensioner arm111
3045015Chain tensioner pad111
3051852Spring ring 47x1.75 Din 472222
3065017Plate for chain tensioner111
3071580Hexagon screw M 6x45 Din 933222
3081732Washer B 6.4 Din 125222
3091690Lock nut NM 6 Din 980222
3105019Spacer bush for chain tensioner111
3111749Washer A 8.4 Din 9021222
3125020Spring for chain tensioner111
3131692Hexagon nut NM 8 Din 980111
3141774Stud M 8 Din 835111
