1977 Frame Parts List — SOCAL Maico

 Back to 1977 Diagrams1977 FRAME PARTS LIST184 parts — Models: 250 / 400 / 440
Chassis →Engine →

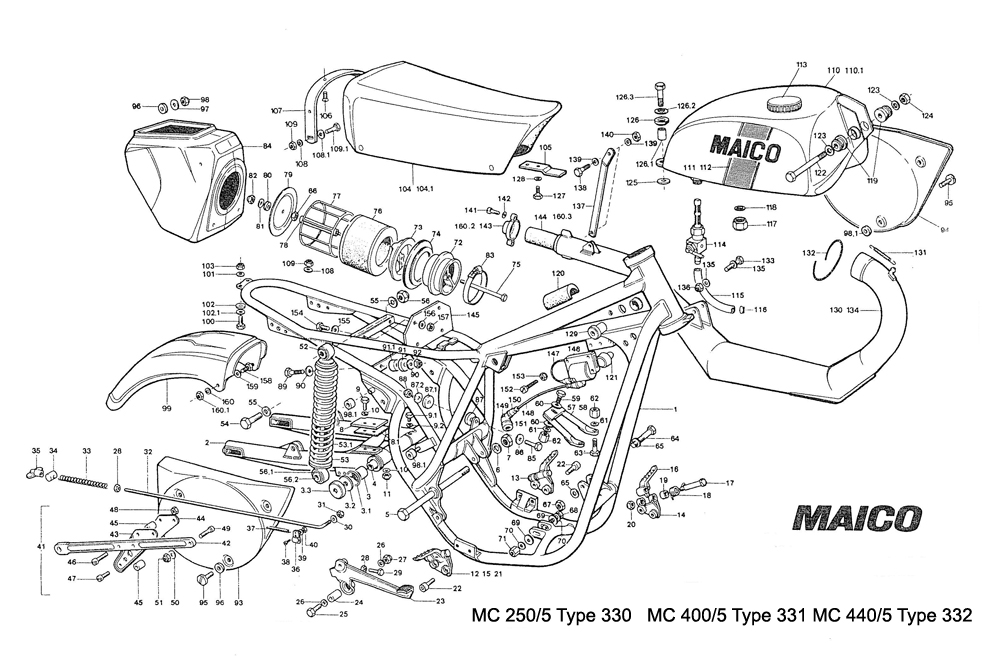

Click to enlarge
Item No.PART NO.DESCRIPTION250400440
15Frame cpl111
23917Swing arm cpl111
33932Needle cage 2030222
3.180O ring222
3.25008Washer222
3.33934Cover plate for swing arm222
43933Spacer bush for swing arm222
53937Swing arm spindle111
61718Washer111
75011Nut for swing arm spindle M 24 x 2.5 Din 980111
83936Swing arm plastic pad111
8.13927Cover plate111
91567Hexagon screw M 6x16 Din 933222
9.11554Hexagon screw M 6x6 Din 933111
9.2407Sealing ring A x 10 Din 7603111
101732Washer B 6.4 Din 125444
111690Hexagon nut NM 6 Din 980222
123779Foot rest right hand cpl111
133780Foot rest left hand cpl111
143564Foot rest base plate left hand111
153567Foot rest base plate right hand111
163563Foot rest222
173569Bolt M 8x58x70222
183568Foot rest return spring left hand111
193565Spacer Bush222
201692Self locking nut NM 8 Din 980222
213566Foot rest return spring right hand111
221655Socket screw M 10x25 Din 6912444
235090Brake pedal111
245093Bushing for brake pedal111
251500Hexagon screw M 6x40 Din 931111
261732Washer B 6.4 Din 125222
271690Lock nut NM 6 Din 980111
281667Hexagon nut M 6 din 934222
291570Hexagon screw M 6x25 Din 933111
301732Washer B 6.4 Din 125111
311690Lock nut NM 6 Din 980111
325089Rear brake rod111
33242Spring111
34244Nipple111
35243Wing nut111
36237Clamp111
37236Spring111
381527Cylinder head screw M 4x10 Din 84111
391702Spring washer B 6 Din 127111
401665Hexagon nut M 6 Din 934111
413505Chain guide cpl111
423506Rear brake stopper arm111
433092Chain guide plate right hand111
443093Chain guide plate left hand111
453094Sliding rollers333
461539Head screw M 6x40 Din 84222
471550Head screw M 6x30 Din 84111
481690Hexagon nut NM 6 Din 980333
491652Socket screw M 8x20 Din 6912111
501734Washer B 8.4 Din 125111
511692Hexagon nut NM 8 Din 980111
523944Shocks cpl (Girling gas shocks)222
533945Spring 7.5 (black)222
53.15075Spring 7.75 (red)222
541594Hexagon screw M 8x40 Din 931444
551734Washer B 8.4 Din 125888
561692Hexagon nut NM 8 Din 980444
56.15201Rubber bush 6454 1661444
56.25202Bush 7052 0708444
573697Support for cylinder (250)1--
583781Support for cylinder (400/440)-11
591589Hexagon screw M 8x20 Din 933111
601749Washer A 8.4 Din 9021222
611714Spring washer B 8 Din 137333
6278Hexagon nut N 8 Din 6330333
631592Hexagon screw M 8x30 Din 933222
641626Hexagon screw M 10x1.25x60 Din 960222
651715Spring washer B 10 Din 137444
661667Hexagon nut M 6 Din 934111
675031Lock nut VM 10x1.25 Din 980222
681599Hexagon screw M 8x60 Din 931111
691749Washer B 8.4 Din 9021222
701714Spring washer B 8 Din 137222
7178Hexagon nut M 8 Din 6330111
723182Flange for outside air box111
733183Air box ring111
742485Rubber ring for filter box111
753758Hexagon bolt M 6x130x35111
763181Foam filter111
773164Air filter body111
783184Spacer tube111
793805Cover for air filter111
802708Rubber washer111
811750Washer 6.4 Din 9021111
821690Hexagon nut NM 6 Din 980111
83348Clamp111
843958Air box111
851570Hexagon screw M 6x25 Din 933222
861732Washer B 6.4 Din 125222
873529Washer222
87.12708Rubber washer222
87.21750Washer 6.4 Din 9021222
881690Hexagon nut NM 6 Din 980222
891572Hexagon screw M 6x35 Din 931222
901750Washer 6.4 Din 9021444
912708Rubber washer222
91.15029Spacer washer222
921690Nut NM 6 Din 980222
935205Side panel right hand111
945206Side panel left hand111
953711Plastic screw M 6x22666
962708Rubber washer888
971750Washer 6.4 Din 921222
981690Hexagon nut NM 6x18 Din 933222
98.15029Spacer washer222
9933Rear fender (red)111
1001568Hexagon screw M 6x18 Din933222
1011732Washer B 6.4 Din 125222
1022708Rubber washer222
102.11750Washer 6.4 Din 125222
1031690Hexagon nut NM 6 Din 980222
1045192Seat cpl (low)111
104.15200Seat cpl (high)(1)(1)(1)
105286Clamp holder for seat111
1061812Counter sunk screw M 6x16 Din 964444
1075197Seat bracket111
1081734Washer B 8.4 Din 125222
108.11947Washer 8,4 Din 9021222
1091692Hexagon nut NM 8 Din 980222
109.11588Hexagon screw M 8x18 Din 933222
1105340Fuel tank aluminium MC111
110.15341Fuel tank aluminium GS(1)(1)(1)
1113520Maico emblem left hand111
1123521Maico emblem right hand111
1133429Fuel tank cap111
1142831Gasoline tap111
1153523Gasoline hose111
1162832Hose clip222
1175342Screw cap for fuel tank111
1185243Sealing ring111
1195344Tank mounting rubber222
1203527Rubber pad for tank222
1213866Moulded rubber mount222
1221604Hexagon screw M 8x90 Din 931111
1231734Washer B 8,4 Din 9021222
1241692Hexagon nut NM 8 Din 980111
1255345Rubber washer111
1265346Rubber pressure ring111
126.15347Tension bush111
126.21749Washer 8,4 Din 9021111
126.31591Hexagon screw M 8x25 Din 933111
1271567Hexagon screw M 6x16 Din 933222
1281704Lock washer B 6 Din 127222
1295348Spacer bush for tank222
1303517Exhaust system cpl (400/440)-11
1315160Tension Spring111
132896Asbestos cord111
1331595Hexagon screw M 8x45 Din 931111
1345216Exhaust system cpl (250)1--
1351735Washer A 8.4 Din 125222
1361692Hexagon nut NM 8 Din 980111
1375308Exhaust brace111
1381567Hexagon screw M 6x16 Din 933222
1391732Washer B 6.4 Din 125444
1401690Hexagon nut NM 6 Din 980222
1411571Hexagon screw M 6x30 Din 931222
1421704Spring washer B 6 Din 127222
1433516End cap (400/440)-11
1443557Sound proofing material (400/440)-11
1455203Splash guard111
1461124Ignition coil111
147605Ground cable111
148589High tension lead111
149599Cable plug111
150600Rubber sleeve111
151601Rubber sleeve222
1521530Head screw M 5x25 Din 84111
1531689Hexagon nut NM 5 Din 980222
1541567Hexagon screw M 6x16 Din 933222
1551750Washer B 6,4 Din 9021222
1561732Washer B 6,4 Din 125222
1571690Hexagon nut NM 6 Din 980222
1581567Hexagon screw M 6x16 Din 933222
1591750Washer 6,4 Din 9021222
1601732Washer B 6,4 Din 125222
160.11690Hexagon Nut NM 6 Din 980222
160.25156End cap (250)1--
160.35155Sound proofing material (250)1--

Item No.	PART NO.	DESCRIPTION	250	400	440
1	5	Frame cpl	1	1	1
2	3917	Swing arm cpl	1	1	1
3	3932	Needle cage 2030	2	2	2
3.1	80	O ring	2	2	2
3.2	5008	Washer	2	2	2
3.3	3934	Cover plate for swing arm	2	2	2
4	3933	Spacer bush for swing arm	2	2	2
5	3937	Swing arm spindle	1	1	1
6	1718	Washer	1	1	1
7	5011	Nut for swing arm spindle M 24 x 2.5 Din 980	1	1	1
8	3936	Swing arm plastic pad	1	1	1
8.1	3927	Cover plate	1	1	1
9	1567	Hexagon screw M 6x16 Din 933	2	2	2
9.1	1554	Hexagon screw M 6x6 Din 933	1	1	1
9.2	407	Sealing ring A x 10 Din 7603	1	1	1
10	1732	Washer B 6.4 Din 125	4	4	4
11	1690	Hexagon nut NM 6 Din 980	2	2	2
12	3779	Foot rest right hand cpl	1	1	1
13	3780	Foot rest left hand cpl	1	1	1
14	3564	Foot rest base plate left hand	1	1	1
15	3567	Foot rest base plate right hand	1	1	1
16	3563	Foot rest	2	2	2
17	3569	Bolt M 8x58x70	2	2	2
18	3568	Foot rest return spring left hand	1	1	1
19	3565	Spacer Bush	2	2	2
20	1692	Self locking nut NM 8 Din 980	2	2	2
21	3566	Foot rest return spring right hand	1	1	1
22	1655	Socket screw M 10x25 Din 6912	4	4	4
23	5090	Brake pedal	1	1	1
24	5093	Bushing for brake pedal	1	1	1
25	1500	Hexagon screw M 6x40 Din 931	1	1	1
26	1732	Washer B 6.4 Din 125	2	2	2
27	1690	Lock nut NM 6 Din 980	1	1	1
28	1667	Hexagon nut M 6 din 934	2	2	2
29	1570	Hexagon screw M 6x25 Din 933	1	1	1
30	1732	Washer B 6.4 Din 125	1	1	1
31	1690	Lock nut NM 6 Din 980	1	1	1
32	5089	Rear brake rod	1	1	1
33	242	Spring	1	1	1
34	244	Nipple	1	1	1
35	243	Wing nut	1	1	1
36	237	Clamp	1	1	1
37	236	Spring	1	1	1
38	1527	Cylinder head screw M 4x10 Din 84	1	1	1
39	1702	Spring washer B 6 Din 127	1	1	1
40	1665	Hexagon nut M 6 Din 934	1	1	1
41	3505	Chain guide cpl	1	1	1
42	3506	Rear brake stopper arm	1	1	1
43	3092	Chain guide plate right hand	1	1	1
44	3093	Chain guide plate left hand	1	1	1
45	3094	Sliding rollers	3	3	3
46	1539	Head screw M 6x40 Din 84	2	2	2
47	1550	Head screw M 6x30 Din 84	1	1	1
48	1690	Hexagon nut NM 6 Din 980	3	3	3
49	1652	Socket screw M 8x20 Din 6912	1	1	1
50	1734	Washer B 8.4 Din 125	1	1	1
51	1692	Hexagon nut NM 8 Din 980	1	1	1
52	3944	Shocks cpl (Girling gas shocks)	2	2	2
53	3945	Spring 7.5 (black)	2	2	2
53.1	5075	Spring 7.75 (red)	2	2	2
54	1594	Hexagon screw M 8x40 Din 931	4	4	4
55	1734	Washer B 8.4 Din 125	8	8	8
56	1692	Hexagon nut NM 8 Din 980	4	4	4
56.1	5201	Rubber bush 6454 1661	4	4	4
56.2	5202	Bush 7052 0708	4	4	4
57	3697	Support for cylinder (250)	1	-	-
58	3781	Support for cylinder (400/440)	-	1	1
59	1589	Hexagon screw M 8x20 Din 933	1	1	1
60	1749	Washer A 8.4 Din 9021	2	2	2
61	1714	Spring washer B 8 Din 137	3	3	3
62	78	Hexagon nut N 8 Din 6330	3	3	3
63	1592	Hexagon screw M 8x30 Din 933	2	2	2
64	1626	Hexagon screw M 10x1.25x60 Din 960	2	2	2
65	1715	Spring washer B 10 Din 137	4	4	4
66	1667	Hexagon nut M 6 Din 934	1	1	1
67	5031	Lock nut VM 10x1.25 Din 980	2	2	2
68	1599	Hexagon screw M 8x60 Din 931	1	1	1
69	1749	Washer B 8.4 Din 9021	2	2	2
70	1714	Spring washer B 8 Din 137	2	2	2
71	78	Hexagon nut M 8 Din 6330	1	1	1
72	3182	Flange for outside air box	1	1	1
73	3183	Air box ring	1	1	1
74	2485	Rubber ring for filter box	1	1	1
75	3758	Hexagon bolt M 6x130x35	1	1	1
76	3181	Foam filter	1	1	1
77	3164	Air filter body	1	1	1
78	3184	Spacer tube	1	1	1
79	3805	Cover for air filter	1	1	1
80	2708	Rubber washer	1	1	1
81	1750	Washer 6.4 Din 9021	1	1	1
82	1690	Hexagon nut NM 6 Din 980	1	1	1
83	348	Clamp	1	1	1
84	3958	Air box	1	1	1
85	1570	Hexagon screw M 6x25 Din 933	2	2	2
86	1732	Washer B 6.4 Din 125	2	2	2
87	3529	Washer	2	2	2
87.1	2708	Rubber washer	2	2	2
87.2	1750	Washer 6.4 Din 9021	2	2	2
88	1690	Hexagon nut NM 6 Din 980	2	2	2
89	1572	Hexagon screw M 6x35 Din 931	2	2	2
90	1750	Washer 6.4 Din 9021	4	4	4
91	2708	Rubber washer	2	2	2
91.1	5029	Spacer washer	2	2	2
92	1690	Nut NM 6 Din 980	2	2	2
93	5205	Side panel right hand	1	1	1
94	5206	Side panel left hand	1	1	1
95	3711	Plastic screw M 6x22	6	6	6
96	2708	Rubber washer	8	8	8
97	1750	Washer 6.4 Din 921	2	2	2
98	1690	Hexagon nut NM 6x18 Din 933	2	2	2
98.1	5029	Spacer washer	2	2	2
99	33	Rear fender (red)	1	1	1
100	1568	Hexagon screw M 6x18 Din933	2	2	2
101	1732	Washer B 6.4 Din 125	2	2	2
102	2708	Rubber washer	2	2	2
102.1	1750	Washer 6.4 Din 125	2	2	2
103	1690	Hexagon nut NM 6 Din 980	2	2	2
104	5192	Seat cpl (low)	1	1	1
104.1	5200	Seat cpl (high)	(1)	(1)	(1)
105	286	Clamp holder for seat	1	1	1
106	1812	Counter sunk screw M 6x16 Din 964	4	4	4
107	5197	Seat bracket	1	1	1
108	1734	Washer B 8.4 Din 125	2	2	2
108.1	1947	Washer 8,4 Din 9021	2	2	2
109	1692	Hexagon nut NM 8 Din 980	2	2	2
109.1	1588	Hexagon screw M 8x18 Din 933	2	2	2
110	5340	Fuel tank aluminium MC	1	1	1
110.1	5341	Fuel tank aluminium GS	(1)	(1)	(1)
111	3520	Maico emblem left hand	1	1	1
112	3521	Maico emblem right hand	1	1	1
113	3429	Fuel tank cap	1	1	1
114	2831	Gasoline tap	1	1	1
115	3523	Gasoline hose	1	1	1
116	2832	Hose clip	2	2	2
117	5342	Screw cap for fuel tank	1	1	1
118	5243	Sealing ring	1	1	1
119	5344	Tank mounting rubber	2	2	2
120	3527	Rubber pad for tank	2	2	2
121	3866	Moulded rubber mount	2	2	2
122	1604	Hexagon screw M 8x90 Din 931	1	1	1
123	1734	Washer B 8,4 Din 9021	2	2	2
124	1692	Hexagon nut NM 8 Din 980	1	1	1
125	5345	Rubber washer	1	1	1
126	5346	Rubber pressure ring	1	1	1
126.1	5347	Tension bush	1	1	1
126.2	1749	Washer 8,4 Din 9021	1	1	1
126.3	1591	Hexagon screw M 8x25 Din 933	1	1	1
127	1567	Hexagon screw M 6x16 Din 933	2	2	2
128	1704	Lock washer B 6 Din 127	2	2	2
129	5348	Spacer bush for tank	2	2	2
130	3517	Exhaust system cpl (400/440)	-	1	1
131	5160	Tension Spring	1	1	1
132	896	Asbestos cord	1	1	1
133	1595	Hexagon screw M 8x45 Din 931	1	1	1
134	5216	Exhaust system cpl (250)	1	-	-
135	1735	Washer A 8.4 Din 125	2	2	2
136	1692	Hexagon nut NM 8 Din 980	1	1	1
137	5308	Exhaust brace	1	1	1
138	1567	Hexagon screw M 6x16 Din 933	2	2	2
139	1732	Washer B 6.4 Din 125	4	4	4
140	1690	Hexagon nut NM 6 Din 980	2	2	2
141	1571	Hexagon screw M 6x30 Din 931	2	2	2
142	1704	Spring washer B 6 Din 127	2	2	2
143	3516	End cap (400/440)	-	1	1
144	3557	Sound proofing material (400/440)	-	1	1
145	5203	Splash guard	1	1	1
146	1124	Ignition coil	1	1	1
147	605	Ground cable	1	1	1
148	589	High tension lead	1	1	1
149	599	Cable plug	1	1	1
150	600	Rubber sleeve	1	1	1
151	601	Rubber sleeve	2	2	2
152	1530	Head screw M 5x25 Din 84	1	1	1
153	1689	Hexagon nut NM 5 Din 980	2	2	2
154	1567	Hexagon screw M 6x16 Din 933	2	2	2
155	1750	Washer B 6,4 Din 9021	2	2	2
156	1732	Washer B 6,4 Din 125	2	2	2
157	1690	Hexagon nut NM 6 Din 980	2	2	2
158	1567	Hexagon screw M 6x16 Din 933	2	2	2
159	1750	Washer 6,4 Din 9021	2	2	2
160	1732	Washer B 6,4 Din 125	2	2	2
160.1	1690	Hexagon Nut NM 6 Din 980	2	2	2
160.2	5156	End cap (250)	1	-	-
160.3	5155	Sound proofing material (250)	1	-	-
