1981 Chassis Parts List

 Back to 1981 Diagrams1981 CHASSIS PARTS LIST172 parts — Models: 250 / 400 / 490
Frame →Engine →

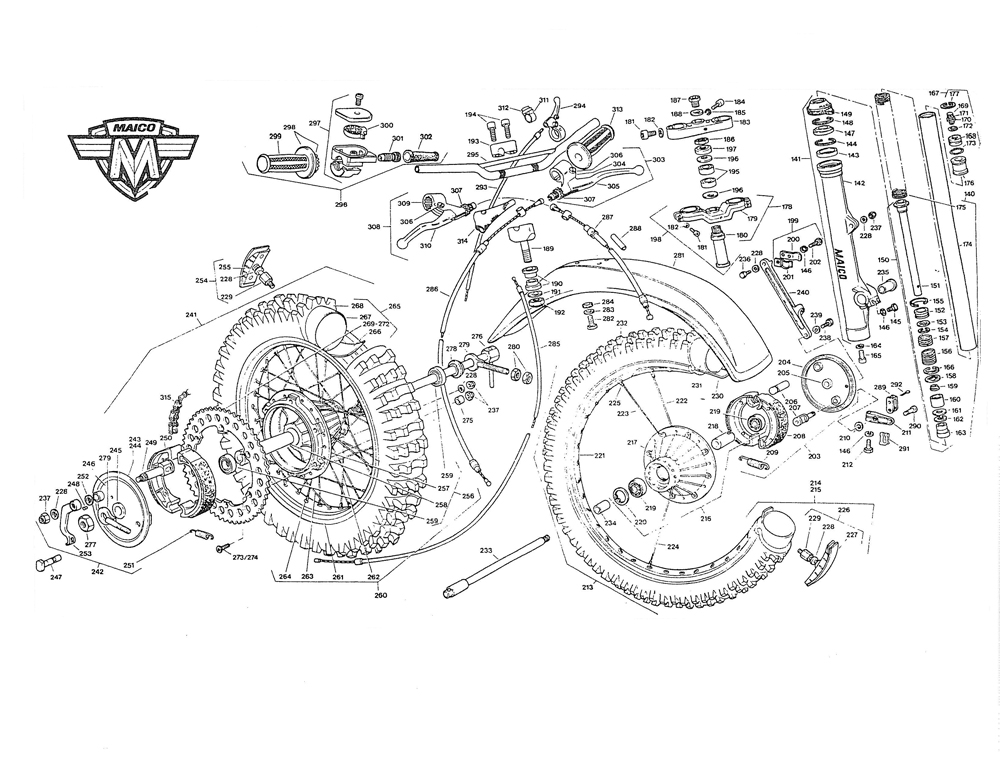

Click to enlarge
Item No.PART NO.DESCRIPTION250400490
1406636Fork leg222
1416631Fork slider cpl222
1426630Fork slider222
1436436Guide bush222
1446437Circlip SB 46222
1451571Hexagon screw M 6x30 Din 931444
1461510Spring ring B 6 Din 128666
1476439Seal222
1486440Circlip SB 55x1.5222
1496441Wiper222
1506635Damper cpl222
1516632Damper tube222
1526447Damper piston222
1536448Washer 23.9x28.2x0.9222
1546449Circlip SW 24222
1556450Piston ring222
1566452Stop spring soft222
1576460Stop spring hard222
1586426Valve seat222
1596454Valve222
1606427Damper insert222
1616456Washer 29.9x36.7x0.2222
1626457Securing ring 37x1.5 Din 472222
1636458Bush for damper222
1646459Seal ring A 10x15 Din 7603222
1651655Socket screw M 10x25 Din 6912222
1666428Circlip SB 38222
1676429Fork cap cpl222
1686431Fork cap222
1692184Valve cpl222
1702186Valve insert222
1712187Valve cap222
172277Seal ring A 8x11.5 Din 7603222
1736464O-ring 29.74x3.53222
1746637Fork tube222
1756629Fork spring222
1766628Spacer tube222
1776457Securing ring 37x1.5 Din 472222
1786639Lower cross head cpl111
1796640Lower cross head111
1806471Steering tube111
1813270Socket screw M 10x40 Din 6912444
1821512Spring ring B 10 Din 128444
1836473Upper cross head111
1841648Socket screw M 8x40 Din 912111
1851511Spring ring B 8 Din 128111
1866474Steering head nut111
1876475Screw plug111
1886476Washer B 23 Din 125111
1896477Handle bar clamp lower222
19015Rubber buffer444
1916642Washer222
1921693Nut NM 10 Din 980222
1936478Upper handle bar clamp222
1941628Socket screw M 8x25 Din 6912444
1953297Tapered roller bearing222
1963296Nilos ring222
1976480Cover tray111
1986641Fork cpl111
1996257Cable holder cpl111
2006258Cable clamp111
2016255Cable clamp111
2021565Hexagon screw M 6x12 Din 933111
2036144Front brake plate cpl111
2042236Front brake plate with bush111
2052238Bushing111
2062418Pivot bolt111
2072419Brake toggle111
2081322Brake shoe222
2096148Spring for brake shoe222
210187Rubber washer111
2116145Brake arm front111
2121570Hexagon screw M 6x25 Din 933111
2136678Front wheel cpl111
2146677Front wheel with tire111
2156672Front wheel111
2166671Front hub cpl111
2176670Front hub111
2182428Spacer tube111
2192427Ball bearing 6202 RS Din 625222
2201853Securing ring 35x1.5 Din 472111
2216673Akront rim 21"111
2226674Front spoke M 4x227 - 80999
2236675Front spoke M 4x227 - 100999
2246676Front spoke M 4x227 - 115181818
2252242Nipple 4.5 M 4363636
226168Tire holder front cpl111
2272568Tire holder plate111
2281734Washer B 8.4 Din 125888
229289Nut for tire holder222
2302001Rim strap 21"111
2312002Tube 3.00x21"111
2322003Tire 3.00x21"111
2332247Front axle111
2342250Spacer bush111
2352430Threaded bush111
2361594Hexagon screw M 8x40 Din 931111
2371692Nut NM 8 Din 980111
2381589Hexagon screw M 8x20 Din 933222
2391714Spring washer B 8 Din 137111
2406147Brake stay111
2416691Rear wheel cpl111
2426711Brake plate cpl111
2436707Brake plate with pressed parts111
2446708Brake plate111
245183Spacer bush222
2466709Cover plate111
2476710Pivot bolt111
2481901Oval head nail 3x8 Din 1476111
249151Brake toggle111
250188Brake shoe222
2511323Tension spring222
252187Rubber washer111
2533190Rear brake lever111
2542434Tire holder rear cpl111
2552567Tire holder plate111
2566684Rear hub cpl111
2576689Rear hub111
2583276Spacer tube111
259205Ball bearing 6303 2 RS C 3222
2606685Rear wheel111
2616686Akront rim 18"111
2626687Spoke rear M 4.5x209181818
2636688Spoke rear M 4.5x163181818
2642408Nipple M 4.5363636
2656690Rear wheel with tire111
2662005Rim strap 18"111
2672015Tire 4.50x18"111
2682008Tube 4.50x18"111
2696692Sprocket 50tnBnBnB
2706693Sprocket 52TnBnBnB
2716694Sprocket 54TnBnBnB
2726695Sprocket 56TnBnBnB
2731880Rear sprocket bolt M 8x50 Din 7991333
2741803Rear sprocket bolt M 8x40 Din 7991333
2756696Bush for sprocket bolt333
2763277Rear axle111
2771709Securing ring NM 16x1.5 Din 933111
2783196Spacer ring111
2796705Chain adjuster222
2801670Nut M 8 Din 934444
2816493Front fender111
2821569Hexagon screw M 6x20 Din 933444
2831750Washer 6.4 Din 9021444
2842708Rubber washer444
2852456Throttle cable111
2866150Clutch cable cpl111
2876530Brake cable111
2882275Hose B 8x0.7 Din 40621XXX
2896151Cable holder111
2906152Bolt111
2916153Clip for bolt111
2921857Splint pin 3,2x25 Din 94111
293315Decompressor cable-11
294148Lever for decompressor-11
2956668Handle bar111
2966280Throttle grip cpl111
2992148Rubber grip111
3012211Adjusting screw111
3022212Rubber cap111
3032215Hand clutch lever cpl111
3042213Hinge for clutch lever111
3052216Clutch lever blade111
306133Lever screw with nut222
307212Adjusting screw with nut222
3082218Hand brake lever cpl111
3092217Hinge for brake lever111
3102219Hand brake lever111
3112220Kill button111
3132512Rubber grip111
3142204Lever cover red222
3156744Chain adjuster111
