1981 Frame Parts List — SOCAL Maico

 Back to 1981 Diagrams1981 FRAME PARTS LIST134 parts — Models: 250 / 400 / 490
Chassis →Engine →

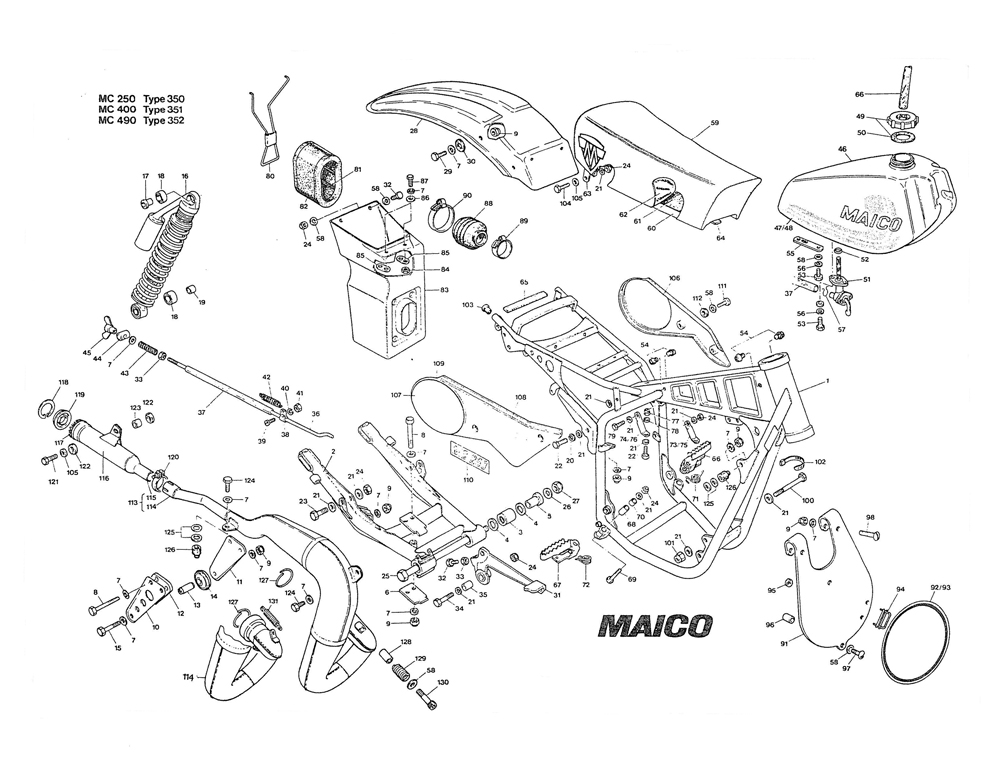

Click to enlarge
Item No.PART NO.DESCRIPTION250400490
16627Frame cpl111
26651Swing arm111
33932Needle cage HK 2030222
41930O ring444
51931Bush for swing arm222
61932Guide plate for swing arm111
71732Washer B 6.4 Din 125333
81575Hexagon screw M 6x60 Din 931333
91690Hexagon nut NM 6 Din 980111
101933Chain guide plate right hand111
111934Chain guide plate left hand111
121935Plastic plate for chain guide222
131936Spacer bush for chain guide333
141937Roller for chain guide222
151500Hexagon screw M 6x40 Din 931222
166650Damper cplnBnBnB
176658Bush222
186659Silent bloc444
196679Bush222
201705Spring ring B 8 Din 127222
211734Washer B 8,4 Din 125333
221594Hexagon screw M 8x40 Din 931444
231595Hexagon screw M 8x45 Din 931222
241692Securing nut NM 8 Din 980666
253937Swing arm spindle111
261718Spring washer B 14 Din 137111
275011Nut NM 14x1.5 Din 980111
286669Rear fender111
291568Hexagon screw M 6x18 Din 933444
302708Rubber washer444
316699Brake lever111
321569Hexagon screw M 6x20 Din 933333
331667Hexagon nut M 6 Din 934222
341599Hexagon screw M 8x60 Din 931111
356702Bush for brake lever111
366703Rear brake rod111
37406HoseXXX
38237Clamp111
391527Cylinder head screw M 4x10 Din 84111
401702Spring ring B 4 Din 127111
411665Hexagon nut M 4 Din 934111
42236Extension spring111
43242Compression Spring111
44244Nipple holder111
45243Wing nut111
466713Tank with decal111
476714Tank decal left111
486715Tank decal right111
496515Tank cap cpl111
506516Sealing ring111
516509Pet cock111
526510O-ring111
531525Hexagon nut M 6x14 Din 933444
546531Rubber stop444
556511Holding plate for tank111
561704Spring ring B 6 Din 127444
572832Hose clip222
581750Washer B 6,4 Din 9021121212
596723Seat cpl111
606720Seat base111
616724Seat foam111
626725Seat cover low111
636721Seat bracket111
646722Clamp holder for seat111
656759Rubber strap adhesiveXXX
666731Foot peg left111
676735Foot peg right111
686738Bush for foot peg222
691597Hexagon screw M 8x55 Din 931222
706750Spacer bush222
716739Foot peg spring left111
726740Foot peg spring right111
736741Cylinder head stay left (250)1--
746742Cylinder head stay right (250)1--
756660Cylinder head stay left (400/490)-11
766661Cylinder head stay right (400/490)-11
7778Hexagon nut long M 8,14mm222
781511Spring ring B 8 Din 128222
791589Hexagon screw M 8x20 Din 933222
806540Holding wire111
816544Air filter cage111
826545Air filter foam111
836743Air box111
841690Hexagon nut NM 6 Din 980444
856729Hook222
863529Washer222
871570Hexagon screw M 6x25 Din 933222
88343Intake manifold111
89683Clamp111
90348Clamp111
916555Front No. panel111
926252Number plate decal, Green front (250)1--
936261Number plate decal, Yellow front (400/490)-11
946247Cable guide111
956265Spring nut222
963094Sliding roller222
976253Plastic screw M 6x30222
983711Plastic screw M 6x22222
996254Set motormount bolts111
1001610Hexagon screw M 8x120222
1011700M 8x120 Din 980222
102325Rubber cable clip888
1036565Rubber plug222
1041587Hexagon screw M 8x16 Din 933222
1051759Washer B 8,4 Din 9021333
1066746Side panel left111
1074153Green number plate decal (250)2--
1074152Yellow number plate decal (400/490)-22
1086752Decal right111
1096749Side panel right111
1106747Sticker 2501--
1106748Sticker 400-1-
1106749Sticker 490--1
1115050Screw M 6x16 Din 7985444
1122708Rubber washer444
1136860Exhaust system cpl (250)1--
1146861Exhaust system (250)1--
1156862Silencer cpl (250)1--
1166863Silencer (250)1--
1176864Exhaust packing (250)1--
1181884Securing ring 70x2.5 Din 472111
1196852Silencer end cap111
1205474Clamp S 35/15111
1211591Hexagon screw M 8x25 Din 933111
1225345Rubber washer222
1235453Bush for exhaust mount111
1241567Hexagon screw M 6x16 Din 933222
1255430Asbestos washer444
1261166Silentbloc for exhaust222
127896Asbestos cordXXX
1286276Sleeve for exhaust spring (400/490)-11
1296275Spring for exhaust (400/490)-11
1301523Socket screw M 6x70 Din 912 (400/490)-11
1316866Spring for exhaust (250)2--

Item No.	PART NO.	DESCRIPTION	250	400	490
1	6627	Frame cpl	1	1	1
2	6651	Swing arm	1	1	1
3	3932	Needle cage HK 2030	2	2	2
4	1930	O ring	4	4	4
5	1931	Bush for swing arm	2	2	2
6	1932	Guide plate for swing arm	1	1	1
7	1732	Washer B 6.4 Din 125	3	3	3
8	1575	Hexagon screw M 6x60 Din 931	3	3	3
9	1690	Hexagon nut NM 6 Din 980	1	1	1
10	1933	Chain guide plate right hand	1	1	1
11	1934	Chain guide plate left hand	1	1	1
12	1935	Plastic plate for chain guide	2	2	2
13	1936	Spacer bush for chain guide	3	3	3
14	1937	Roller for chain guide	2	2	2
15	1500	Hexagon screw M 6x40 Din 931	2	2	2
16	6650	Damper cpl	nB	nB	nB
17	6658	Bush	2	2	2
18	6659	Silent bloc	4	4	4
19	6679	Bush	2	2	2
20	1705	Spring ring B 8 Din 127	2	2	2
21	1734	Washer B 8,4 Din 125	3	3	3
22	1594	Hexagon screw M 8x40 Din 931	4	4	4
23	1595	Hexagon screw M 8x45 Din 931	2	2	2
24	1692	Securing nut NM 8 Din 980	6	6	6
25	3937	Swing arm spindle	1	1	1
26	1718	Spring washer B 14 Din 137	1	1	1
27	5011	Nut NM 14x1.5 Din 980	1	1	1
28	6669	Rear fender	1	1	1
29	1568	Hexagon screw M 6x18 Din 933	4	4	4
30	2708	Rubber washer	4	4	4
31	6699	Brake lever	1	1	1
32	1569	Hexagon screw M 6x20 Din 933	3	3	3
33	1667	Hexagon nut M 6 Din 934	2	2	2
34	1599	Hexagon screw M 8x60 Din 931	1	1	1
35	6702	Bush for brake lever	1	1	1
36	6703	Rear brake rod	1	1	1
37	406	Hose	X	X	X
38	237	Clamp	1	1	1
39	1527	Cylinder head screw M 4x10 Din 84	1	1	1
40	1702	Spring ring B 4 Din 127	1	1	1
41	1665	Hexagon nut M 4 Din 934	1	1	1
42	236	Extension spring	1	1	1
43	242	Compression Spring	1	1	1
44	244	Nipple holder	1	1	1
45	243	Wing nut	1	1	1
46	6713	Tank with decal	1	1	1
47	6714	Tank decal left	1	1	1
48	6715	Tank decal right	1	1	1
49	6515	Tank cap cpl	1	1	1
50	6516	Sealing ring	1	1	1
51	6509	Pet cock	1	1	1
52	6510	O-ring	1	1	1
53	1525	Hexagon nut M 6x14 Din 933	4	4	4
54	6531	Rubber stop	4	4	4
55	6511	Holding plate for tank	1	1	1
56	1704	Spring ring B 6 Din 127	4	4	4
57	2832	Hose clip	2	2	2
58	1750	Washer B 6,4 Din 9021	12	12	12
59	6723	Seat cpl	1	1	1
60	6720	Seat base	1	1	1
61	6724	Seat foam	1	1	1
62	6725	Seat cover low	1	1	1
63	6721	Seat bracket	1	1	1
64	6722	Clamp holder for seat	1	1	1
65	6759	Rubber strap adhesive	X	X	X
66	6731	Foot peg left	1	1	1
67	6735	Foot peg right	1	1	1
68	6738	Bush for foot peg	2	2	2
69	1597	Hexagon screw M 8x55 Din 931	2	2	2
70	6750	Spacer bush	2	2	2
71	6739	Foot peg spring left	1	1	1
72	6740	Foot peg spring right	1	1	1
73	6741	Cylinder head stay left (250)	1	-	-
74	6742	Cylinder head stay right (250)	1	-	-
75	6660	Cylinder head stay left (400/490)	-	1	1
76	6661	Cylinder head stay right (400/490)	-	1	1
77	78	Hexagon nut long M 8,14mm	2	2	2
78	1511	Spring ring B 8 Din 128	2	2	2
79	1589	Hexagon screw M 8x20 Din 933	2	2	2
80	6540	Holding wire	1	1	1
81	6544	Air filter cage	1	1	1
82	6545	Air filter foam	1	1	1
83	6743	Air box	1	1	1
84	1690	Hexagon nut NM 6 Din 980	4	4	4
85	6729	Hook	2	2	2
86	3529	Washer	2	2	2
87	1570	Hexagon screw M 6x25 Din 933	2	2	2
88	343	Intake manifold	1	1	1
89	683	Clamp	1	1	1
90	348	Clamp	1	1	1
91	6555	Front No. panel	1	1	1
92	6252	Number plate decal, Green front (250)	1	-	-
93	6261	Number plate decal, Yellow front (400/490)	-	1	1
94	6247	Cable guide	1	1	1
95	6265	Spring nut	2	2	2
96	3094	Sliding roller	2	2	2
97	6253	Plastic screw M 6x30	2	2	2
98	3711	Plastic screw M 6x22	2	2	2
99	6254	Set motormount bolts	1	1	1
100	1610	Hexagon screw M 8x120	2	2	2
101	1700	M 8x120 Din 980	2	2	2
102	325	Rubber cable clip	8	8	8
103	6565	Rubber plug	2	2	2
104	1587	Hexagon screw M 8x16 Din 933	2	2	2
105	1759	Washer B 8,4 Din 9021	3	3	3
106	6746	Side panel left	1	1	1
107	4153	Green number plate decal (250)	2	-	-
107	4152	Yellow number plate decal (400/490)	-	2	2
108	6752	Decal right	1	1	1
109	6749	Side panel right	1	1	1
110	6747	Sticker 250	1	-	-
110	6748	Sticker 400	-	1	-
110	6749	Sticker 490	-	-	1
111	5050	Screw M 6x16 Din 7985	4	4	4
112	2708	Rubber washer	4	4	4
113	6860	Exhaust system cpl (250)	1	-	-
114	6861	Exhaust system (250)	1	-	-
115	6862	Silencer cpl (250)	1	-	-
116	6863	Silencer (250)	1	-	-
117	6864	Exhaust packing (250)	1	-	-
118	1884	Securing ring 70x2.5 Din 472	1	1	1
119	6852	Silencer end cap	1	1	1
120	5474	Clamp S 35/15	1	1	1
121	1591	Hexagon screw M 8x25 Din 933	1	1	1
122	5345	Rubber washer	2	2	2
123	5453	Bush for exhaust mount	1	1	1
124	1567	Hexagon screw M 6x16 Din 933	2	2	2
125	5430	Asbestos washer	4	4	4
126	1166	Silentbloc for exhaust	2	2	2
127	896	Asbestos cord	X	X	X
128	6276	Sleeve for exhaust spring (400/490)	-	1	1
129	6275	Spring for exhaust (400/490)	-	1	1
130	1523	Socket screw M 6x70 Din 912 (400/490)	-	1	1
131	6866	Spring for exhaust (250)	2	-	-
