1982 Chassis Parts List

 Back to 1982 Diagrams1982 CHASSIS PARTS LIST183 parts — Models: 250 / 490
Frame →Engine →

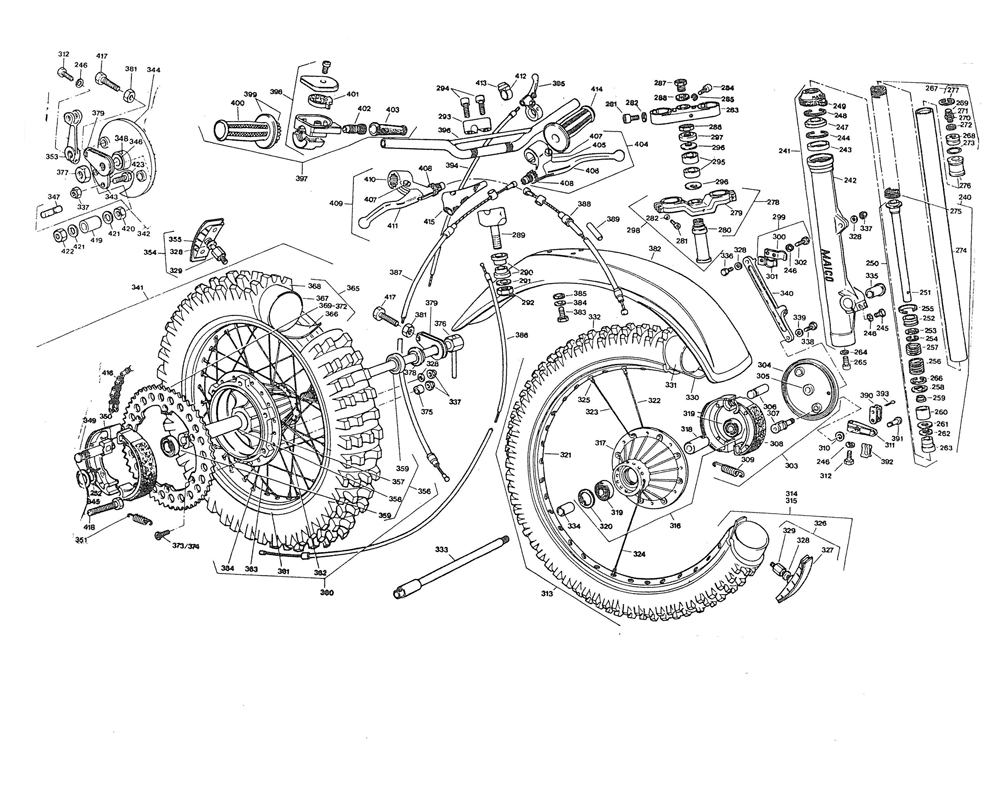

Click to enlarge
Item No.PART NO.DESCRIPTION250490
2406636Fork leg CPL22
2416631Fork slider cpl22
2426630Fork slider22
2436436Guide bush22
2446437Circlip SB 4622
2451571Hexagon screw M 6x30 Din 83144
2461510Spring ring B 6 Din 12877
2476439Seal22
2486440Circlip SB 55x1.522
2496441Wiper22
2506635Damper cpl22
2516632Damper tube22
2526447Damper piston22
2536448Washer 23.9x28.2x0.922
2546449Circlip SW 2422
2556450Piston ring22
2566452Stop spring soft22
2576460Stop spring hard22
2586426Valve seat22
2596454Valve22
2606427Damper insert22
2616456Washer 29.9x36.7x0.222
2626457Securing ring 37x1.5 Din 47222
2636458Bush for damper22
2646459Seal ring A 10x15 Din 760322
2651655Inner hexagon screw M 10x25 Din 691222
2666428Circlip SB 3822
2676429Seal cpl22
2686431Seal22
2692184Valve cpl22
2702186Valve insert22
2712187Valve cap22
272277Seal ring A 8x11.5 Din 760322
2736464O-ring 29.74x3.5322
2746637Fork tube22
2756629Fork spring22
2766628Spacer tube22
2776457Securing ring 37x1.5 Din 47222
2786639Lower cross head cpl11
2796640Lower cross head11
2806471Steering tube11
2813270Inner hexagon screw M 10x40 Din 691244
2821512Spring ring B 10 Din 12844
2836473Upper cross head11
2841648Inner hexagon screw M 8x40 Din 91211
2851511Spring ring B 8 Din 12811
2866474Steering head nut11
2876475Screw plug11
2886476Washer B 23 Din 12511
2896477Handle bar clamp lower22
29015Rubber buffer44
2916642Washer22
2921693Nut NM 10 Din 98022
2936478Upper handle bar clamp22
2941628Inner hexagon screw M 8x25 Din 691244
2953297Tapered roller bearing44
2963296Nilos ring22
2976480Cover plate11
2986641Fork cpl11
2996257Cable holder cpl11
3006258Cable clamp11
3016255Cable clamp11
3021565Hexagon screw M 6x12 Din 93311
3036144Front brake plate cpl11
3042236Front brake plate with bush11
3052238Brake plate bush11
3062418Pivot bolt11
3072419Brake toggle11
3081322Brake shoe22
3096148Spring for brake shoe22
310187Rubber washer11
3116145Front brake lever11
3121570Hexagon screw M 6x25 Din 93322
3136678Front wheel cpl11
3146677Front wheel with tire11
3156672Front wheel11
3166671Front hub cpl11
3176670Front hub11
3182428Spacer tube for front hub11
3192427Ball bearing 6202 RS Din 62522
3201853Securing ring 37x1.5 Din 47211
3216673Akront rim 21"11
3226674Front spoke large flange outer99
3236675Front spoke large flange inner99
3246676Front spoke small flange1818
3252242Nipple 4.5 M 43636
326168Tire holder front cpl11
3272568Tire holder plate11
3281734Washer B 8,4 Din 12588
329289Nut for tire holder22
3302001Rim strap 21"11
3312002Tube 3.00x21"11
3322003Tire 3.00x21"11
3332247Knockout spindle11
3342250Spacer bush11
3352430Bush11
3361594Hexagon screw M 8x40 Din 93111
3371692Nut NM 8 Din 9801111
3381589Hexagon screw M 8x20 Din 93311
3391714Spring washer B 8 Din 13711
3406147Brake plate front11
3417513Rear wheel cpl11
3427507Brake plate cpl11
3437526Cover plate11
3447564Brake plate11
3467506Bush11
3477505Pivot bolt11
3487508Bush11
3497502Brake toggle11
350188Brake shoe cpl22
3516148Tension spring for brake shoe22
3521849Securing ring 25x1.2 Din 47111
3532843Rear brake lever11
3542434Tire holder rear cpl11
3552567Tire holder plate11
3567510Rear hub cpl11
3577500Rear hub11
3583276Spacer tube rear11
359205Ball bearing 6303 2 RS C 322
3607511Rear wheel11
3616686Akront rim 18"11
3626687Spoke small flange1818
3636688Spoke large flange1818
3642408Nipple M 4.53636
3657512Rear wheel with tire11
3662005Rim strap 18"11
3672015Tire 4.50x18"11
3682008Tube 4.50x1811
3697523Sprocket 50T OptionalnBnB
3707522Sprocket 52T OptionalnBnB
3717521Sprocket 54T OptionalnBnB
3727514Sprocket 56T OptionalnBnB
3731880Rear sprocket bolt M 8x50 Din 799133
3741803Rear sprocket bolt M 8x40 Din 799133
3756696Bush for sprocket bolt33
3767519Knockout spindle cpl11
3771709Securing ring NM 16x1.5 Din 93311
3783196Spacer ring11
3797518Chain tensioner cpl22
3807515Nilos ring11
3811670Hexagon screw M 8 Din 93444
3826493Front fender11
3831569Hexagon screw M 6x20 Din 93344
3841750Washer 6,4 Din 902144
3852708Rubber washer44
3862456Throttle cable11
3876150Clutch cable cpl11
3886530Brake cable11
3892275Isolating hose B 8x0.7 Din 40621XX
3906151Cable holder11
3916152Bolt11
3926153Clip for bolt11
3931857Split pin 3.2x25 Din 9411
394315Decompressor cable (490)-1
395148Lever for decompressor cpl (490)-1
3966668Clamp for handle bar11
3976280Throttle grip11
3986283Throttle housing cpl (with cover & screws)11
3996282Grip for cover11
4002148Cover11
4016284Cam11
4022211Support11
4032212Rubber cap22
4042215Clutch lever cpl22
4052213Hinge for clutch lever11
4062216Hand clutch lever11
407133Screw with nut22
408212Adjusting screw with nut22
4092218Brake lever cpl11
4102217Hinge for brake lever with screw11
4112219Brake hand lever11
4122220Kill button with rubber cap11
4132221Rubber cap11
4142512Rubber grip11
4152204Lever cover22
4166744Chain11
4171515Hexagon screw M 8x25 Din 93322
4181619Hexagon screw M 10x50 Din 93311
4197540Bush short11
4201674Hexagon nut M 10 Din 93411
4211735Washer B 10.5 Din 12522
4221693Securing nut M 10 Din 98011
4231589Hexagon screw M 8x20 Din 93333

Item No.	PART NO.	DESCRIPTION	250	490
240	6636	Fork leg CPL	2	2
241	6631	Fork slider cpl	2	2
242	6630	Fork slider	2	2
243	6436	Guide bush	2	2
244	6437	Circlip SB 46	2	2
245	1571	Hexagon screw M 6x30 Din 831	4	4
246	1510	Spring ring B 6 Din 128	7	7
247	6439	Seal	2	2
248	6440	Circlip SB 55x1.5	2	2
249	6441	Wiper	2	2
250	6635	Damper cpl	2	2
251	6632	Damper tube	2	2
252	6447	Damper piston	2	2
253	6448	Washer 23.9x28.2x0.9	2	2
254	6449	Circlip SW 24	2	2
255	6450	Piston ring	2	2
256	6452	Stop spring soft	2	2
257	6460	Stop spring hard	2	2
258	6426	Valve seat	2	2
259	6454	Valve	2	2
260	6427	Damper insert	2	2
261	6456	Washer 29.9x36.7x0.2	2	2
262	6457	Securing ring 37x1.5 Din 472	2	2
263	6458	Bush for damper	2	2
264	6459	Seal ring A 10x15 Din 7603	2	2
265	1655	Inner hexagon screw M 10x25 Din 6912	2	2
266	6428	Circlip SB 38	2	2
267	6429	Seal cpl	2	2
268	6431	Seal	2	2
269	2184	Valve cpl	2	2
270	2186	Valve insert	2	2
271	2187	Valve cap	2	2
272	277	Seal ring A 8x11.5 Din 7603	2	2
273	6464	O-ring 29.74x3.53	2	2
274	6637	Fork tube	2	2
275	6629	Fork spring	2	2
276	6628	Spacer tube	2	2
277	6457	Securing ring 37x1.5 Din 472	2	2
278	6639	Lower cross head cpl	1	1
279	6640	Lower cross head	1	1
280	6471	Steering tube	1	1
281	3270	Inner hexagon screw M 10x40 Din 6912	4	4
282	1512	Spring ring B 10 Din 128	4	4
283	6473	Upper cross head	1	1
284	1648	Inner hexagon screw M 8x40 Din 912	1	1
285	1511	Spring ring B 8 Din 128	1	1
286	6474	Steering head nut	1	1
287	6475	Screw plug	1	1
288	6476	Washer B 23 Din 125	1	1
289	6477	Handle bar clamp lower	2	2
290	15	Rubber buffer	4	4
291	6642	Washer	2	2
292	1693	Nut NM 10 Din 980	2	2
293	6478	Upper handle bar clamp	2	2
294	1628	Inner hexagon screw M 8x25 Din 6912	4	4
295	3297	Tapered roller bearing	4	4
296	3296	Nilos ring	2	2
297	6480	Cover plate	1	1
298	6641	Fork cpl	1	1
299	6257	Cable holder cpl	1	1
300	6258	Cable clamp	1	1
301	6255	Cable clamp	1	1
302	1565	Hexagon screw M 6x12 Din 933	1	1
303	6144	Front brake plate cpl	1	1
304	2236	Front brake plate with bush	1	1
305	2238	Brake plate bush	1	1
306	2418	Pivot bolt	1	1
307	2419	Brake toggle	1	1
308	1322	Brake shoe	2	2
309	6148	Spring for brake shoe	2	2
310	187	Rubber washer	1	1
311	6145	Front brake lever	1	1
312	1570	Hexagon screw M 6x25 Din 933	2	2
313	6678	Front wheel cpl	1	1
314	6677	Front wheel with tire	1	1
315	6672	Front wheel	1	1
316	6671	Front hub cpl	1	1
317	6670	Front hub	1	1
318	2428	Spacer tube for front hub	1	1
319	2427	Ball bearing 6202 RS Din 625	2	2
320	1853	Securing ring 37x1.5 Din 472	1	1
321	6673	Akront rim 21"	1	1
322	6674	Front spoke large flange outer	9	9
323	6675	Front spoke large flange inner	9	9
324	6676	Front spoke small flange	18	18
325	2242	Nipple 4.5 M 4	36	36
326	168	Tire holder front cpl	1	1
327	2568	Tire holder plate	1	1
328	1734	Washer B 8,4 Din 125	8	8
329	289	Nut for tire holder	2	2
330	2001	Rim strap 21"	1	1
331	2002	Tube 3.00x21"	1	1
332	2003	Tire 3.00x21"	1	1
333	2247	Knockout spindle	1	1
334	2250	Spacer bush	1	1
335	2430	Bush	1	1
336	1594	Hexagon screw M 8x40 Din 931	1	1
337	1692	Nut NM 8 Din 980	11	11
338	1589	Hexagon screw M 8x20 Din 933	1	1
339	1714	Spring washer B 8 Din 137	1	1
340	6147	Brake plate front	1	1
341	7513	Rear wheel cpl	1	1
342	7507	Brake plate cpl	1	1
343	7526	Cover plate	1	1
344	7564	Brake plate	1	1
346	7506	Bush	1	1
347	7505	Pivot bolt	1	1
348	7508	Bush	1	1
349	7502	Brake toggle	1	1
350	188	Brake shoe cpl	2	2
351	6148	Tension spring for brake shoe	2	2
352	1849	Securing ring 25x1.2 Din 471	1	1
353	2843	Rear brake lever	1	1
354	2434	Tire holder rear cpl	1	1
355	2567	Tire holder plate	1	1
356	7510	Rear hub cpl	1	1
357	7500	Rear hub	1	1
358	3276	Spacer tube rear	1	1
359	205	Ball bearing 6303 2 RS C 3	2	2
360	7511	Rear wheel	1	1
361	6686	Akront rim 18"	1	1
362	6687	Spoke small flange	18	18
363	6688	Spoke large flange	18	18
364	2408	Nipple M 4.5	36	36
365	7512	Rear wheel with tire	1	1
366	2005	Rim strap 18"	1	1
367	2015	Tire 4.50x18"	1	1
368	2008	Tube 4.50x18	1	1
369	7523	Sprocket 50T Optional	nB	nB
370	7522	Sprocket 52T Optional	nB	nB
371	7521	Sprocket 54T Optional	nB	nB
372	7514	Sprocket 56T Optional	nB	nB
373	1880	Rear sprocket bolt M 8x50 Din 7991	3	3
374	1803	Rear sprocket bolt M 8x40 Din 7991	3	3
375	6696	Bush for sprocket bolt	3	3
376	7519	Knockout spindle cpl	1	1
377	1709	Securing ring NM 16x1.5 Din 933	1	1
378	3196	Spacer ring	1	1
379	7518	Chain tensioner cpl	2	2
380	7515	Nilos ring	1	1
381	1670	Hexagon screw M 8 Din 934	4	4
382	6493	Front fender	1	1
383	1569	Hexagon screw M 6x20 Din 933	4	4
384	1750	Washer 6,4 Din 9021	4	4
385	2708	Rubber washer	4	4
386	2456	Throttle cable	1	1
387	6150	Clutch cable cpl	1	1
388	6530	Brake cable	1	1
389	2275	Isolating hose B 8x0.7 Din 40621	X	X
390	6151	Cable holder	1	1
391	6152	Bolt	1	1
392	6153	Clip for bolt	1	1
393	1857	Split pin 3.2x25 Din 94	1	1
394	315	Decompressor cable (490)	-	1
395	148	Lever for decompressor cpl (490)	-	1
396	6668	Clamp for handle bar	1	1
397	6280	Throttle grip	1	1
398	6283	Throttle housing cpl (with cover & screws)	1	1
399	6282	Grip for cover	1	1
400	2148	Cover	1	1
401	6284	Cam	1	1
402	2211	Support	1	1
403	2212	Rubber cap	2	2
404	2215	Clutch lever cpl	2	2
405	2213	Hinge for clutch lever	1	1
406	2216	Hand clutch lever	1	1
407	133	Screw with nut	2	2
408	212	Adjusting screw with nut	2	2
409	2218	Brake lever cpl	1	1
410	2217	Hinge for brake lever with screw	1	1
411	2219	Brake hand lever	1	1
412	2220	Kill button with rubber cap	1	1
413	2221	Rubber cap	1	1
414	2512	Rubber grip	1	1
415	2204	Lever cover	2	2
416	6744	Chain	1	1
417	1515	Hexagon screw M 8x25 Din 933	2	2
418	1619	Hexagon screw M 10x50 Din 933	1	1
419	7540	Bush short	1	1
420	1674	Hexagon nut M 10 Din 934	1	1
421	1735	Washer B 10.5 Din 125	2	2
422	1693	Securing nut M 10 Din 980	1	1
423	1589	Hexagon screw M 8x20 Din 933	3	3
