 Back to 1982 Diagrams1982 FRAME PARTS LIST154 parts — Models: 250 / 490
Chassis →Engine →

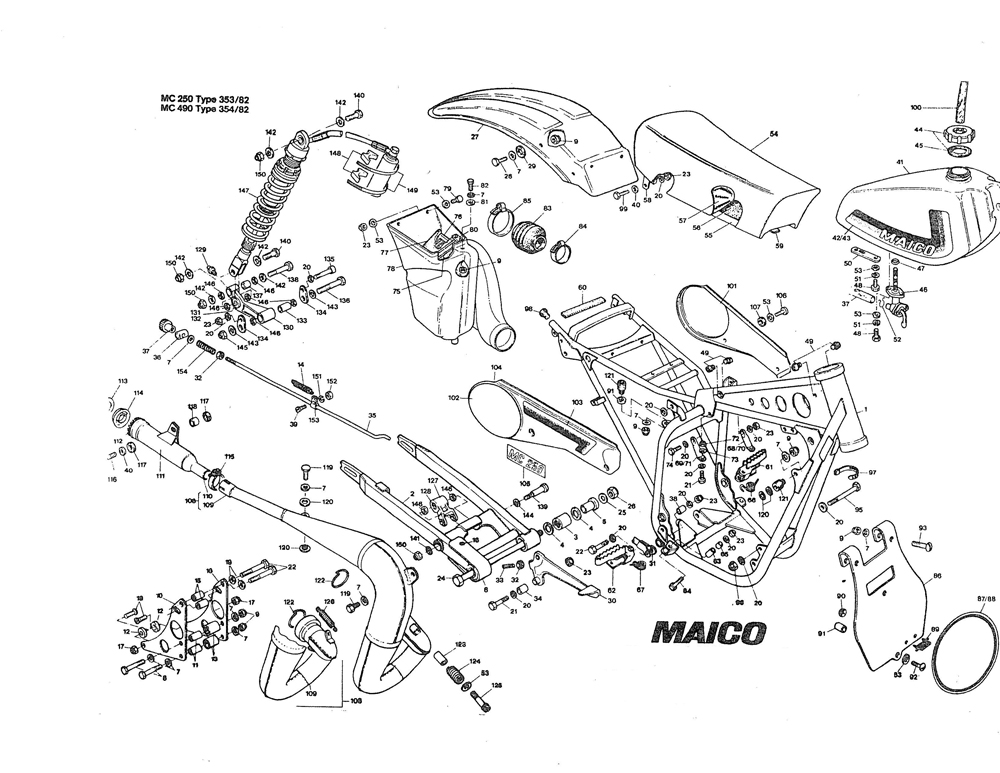

Click to enlarge
Item No.PART NO.DESCRIPTION250490
17400Frame cpl11
27413Rear swing arm11
33932Needle cage HK 203022
41930O ring22
51931Bush for swing arm22
67560Guide plate for swing arm11
71732Washer B 6.4 Din 12533
81500Hexagon screw M 6x60 Din 93122
91690Hexagon nut NM 6 Din 98011
107555Chain guide plate right hand22
117557Spacer tube for chain guide22
127559Shim22
137556Bush for roller22
14236Tension spring11
157558Spacer for chain guide22
161514Screw M 6x10 Din 96322
171689Securing nut NM 5 Din 98022
181513Screw M 5x16 Din 96322
191705Spring ring B 4 Din 12722
201734Washer B 8,4 Din 12522
211594Hexagon screw M 8x40 Din 93122
221595Hexagon screw M 8x45 Din 93122
231692Securing nut NM 8 Din 98066
243937Axle for rear swing arm11
251718Spring washer B 14 Din 13711
265011Securing nut NM 14 Din 13711
276669Rear fender11
281568Hexagon screw M 6x18 Din 93344
292706Rubber washer44
307531Foot brake lever cpl11
317527Brake stay cpl11
321667Hexagon nut M 6 Din 93411
331508Screw M 6x20 Din 93411
347535Bush11
357536Rear brake rod11
367537Rear arm spindle11
377538Adjusting nut11
387539Bush long11
391527Cylinder screw M 4x10 Din 8411
401759Washer B 8,4 Din 12544
417590Tank with decal11
427591Tank decal left11
437592Tank decal right11
446515Tank cap cpl11
456516Sealing ring11
466509Pet cock11
476510O-ring11
481525Hexagon screw M 6x14 Din 93344
496531Rubber stop44
506511Holding plate for tank11
511704Spring ring B 4 Din 12744
522832Clamp22
531750Washer B 6,4 Din 90211213
546723Seat cpl (low)11
55-Seat base11
566724Seat cover (low)11
576725Seat cover (low)11
586721Seat brackets11
596722Clamp11
606759Rubber bandXX
616731Foot rest left cpl11
626735Foot rest cpl right11
636738Bush22
641597Hexagon screw M 8x55 Din 93122
656750Spacer bush22
666730Foot rest spring, left11
676740Foot rest spring, right11
686741Cylinder head stay left (250)1-
696742Cylinder head stay right (250)1-
706660Cylinder head stay left (490)-1
716661Cylinder head stay right (490)-1
7278Hexagon nut M 8, 14mm22
731511Spring ring B 4 Din 12822
741589Hexagon screw M 8x20 Din 93322
757437Holding wire11
767435Filter cage11
777436Filter foam11
787438Air box11
791569Hexagon screw M 6x29 Din 93322
807442Hook22
813529Washer22
821570Hexagon screw M 6x20 Din 93322
83343Intake manifold11
84683Clamp11
85348Clamp11
867444Front number plate11
876252Front decal, green (250)1-
886261Front decal, yellow (490)-1
896247Cable guide cpl11
906265Spring nut22
913094Sliding roller22
926253Plastic screw M 6x3022
933711Plastic screw M 6x2222
946254Set motormount bolts (pos 95-96)11
951610Hexagon screw M 8x120 Din 93122
961700Securing nut NM 8-10 Din 98022
97325Rubber cable clip88
986565Rubber plug22
991587Hexagon screw M 8x16 Din 93322
100406Hose22
1017446Side panel, left11
1024153Green decal (250)2-
1037448Decal right11
1047450Side panel right11
1056747Sticker 2501-
1065050Oval head screw M 6x16 Din 798544
1072708Rubber washer44
1087603Exhaust system cpl (250)1-
1097600Exhaust system (250)1-
1106862Silencer, cpl (250)1-
1116863Silencer (250)1-
1126864Exhaust packing (250)1-
1131884Securing ring 70x2.5 Din 47211
1146852Silencer end cap11
1155474Clamp 35/1511
1161591Hexagon screw M 8x25 Din 93311
1175345Rubber washer22
1185453Bush for silencer mount11
1191567Hexagon screw M 6x16 Din 93322
1205430Washer44
1211166Silentbloc22
122896Asbestos cordXX
1236276Guide bush (490)-1
1246275Spring (490)-1
1251523Inner hexagon screw M 6x70 Din 912 (490)-1
1266866Tension spring (250)2-
1277422Hinge fork, cpl11
1287424Bush22
1291915Grease nipple M 6x3.5 Din 97233
1307425Hinge lever, cpl11
1317424Bush44
1327427Hinge bearing44
1337248Spacer bush44
1347429Clip22
1351517Inner hexagon screw M 8x75 Din 91211
1367430Screw11
1377432Bush11
1387431Hinge bolt11
1397545Bolt11
1407546Damper bolt22
1417547Washer11
1421737Washer B 13 Din 12566
1437548Washer22
1447549Washer11
1451694Securing nut NM 10x1 Din 98055
1467550Securing ring66
1477561Damper, cpl11
1487562Rubber support22
14985Clamp22
1501727Securing nut NM 12x1.5 Din 98044
1511702Spring ring B 4 Din 12711
1521665Hexagon nut M 4 Din 93411
153237Clamp11
154242Spring11

Item No.	PART NO.	DESCRIPTION	250	490
1	7400	Frame cpl	1	1
2	7413	Rear swing arm	1	1
3	3932	Needle cage HK 2030	2	2
4	1930	O ring	2	2
5	1931	Bush for swing arm	2	2
6	7560	Guide plate for swing arm	1	1
7	1732	Washer B 6.4 Din 125	3	3
8	1500	Hexagon screw M 6x60 Din 931	2	2
9	1690	Hexagon nut NM 6 Din 980	1	1
10	7555	Chain guide plate right hand	2	2
11	7557	Spacer tube for chain guide	2	2
12	7559	Shim	2	2
13	7556	Bush for roller	2	2
14	236	Tension spring	1	1
15	7558	Spacer for chain guide	2	2
16	1514	Screw M 6x10 Din 963	2	2
17	1689	Securing nut NM 5 Din 980	2	2
18	1513	Screw M 5x16 Din 963	2	2
19	1705	Spring ring B 4 Din 127	2	2
20	1734	Washer B 8,4 Din 125	2	2
21	1594	Hexagon screw M 8x40 Din 931	2	2
22	1595	Hexagon screw M 8x45 Din 931	2	2
23	1692	Securing nut NM 8 Din 980	6	6
24	3937	Axle for rear swing arm	1	1
25	1718	Spring washer B 14 Din 137	1	1
26	5011	Securing nut NM 14 Din 137	1	1
27	6669	Rear fender	1	1
28	1568	Hexagon screw M 6x18 Din 933	4	4
29	2706	Rubber washer	4	4
30	7531	Foot brake lever cpl	1	1
31	7527	Brake stay cpl	1	1
32	1667	Hexagon nut M 6 Din 934	1	1
33	1508	Screw M 6x20 Din 934	1	1
34	7535	Bush	1	1
35	7536	Rear brake rod	1	1
36	7537	Rear arm spindle	1	1
37	7538	Adjusting nut	1	1
38	7539	Bush long	1	1
39	1527	Cylinder screw M 4x10 Din 84	1	1
40	1759	Washer B 8,4 Din 125	4	4
41	7590	Tank with decal	1	1
42	7591	Tank decal left	1	1
43	7592	Tank decal right	1	1
44	6515	Tank cap cpl	1	1
45	6516	Sealing ring	1	1
46	6509	Pet cock	1	1
47	6510	O-ring	1	1
48	1525	Hexagon screw M 6x14 Din 933	4	4
49	6531	Rubber stop	4	4
50	6511	Holding plate for tank	1	1
51	1704	Spring ring B 4 Din 127	4	4
52	2832	Clamp	2	2
53	1750	Washer B 6,4 Din 9021	12	13
54	6723	Seat cpl (low)	1	1
55	-	Seat base	1	1
56	6724	Seat cover (low)	1	1
57	6725	Seat cover (low)	1	1
58	6721	Seat brackets	1	1
59	6722	Clamp	1	1
60	6759	Rubber band	X	X
61	6731	Foot rest left cpl	1	1
62	6735	Foot rest cpl right	1	1
63	6738	Bush	2	2
64	1597	Hexagon screw M 8x55 Din 931	2	2
65	6750	Spacer bush	2	2
66	6730	Foot rest spring, left	1	1
67	6740	Foot rest spring, right	1	1
68	6741	Cylinder head stay left (250)	1	-
69	6742	Cylinder head stay right (250)	1	-
70	6660	Cylinder head stay left (490)	-	1
71	6661	Cylinder head stay right (490)	-	1
72	78	Hexagon nut M 8, 14mm	2	2
73	1511	Spring ring B 4 Din 128	2	2
74	1589	Hexagon screw M 8x20 Din 933	2	2
75	7437	Holding wire	1	1
76	7435	Filter cage	1	1
77	7436	Filter foam	1	1
78	7438	Air box	1	1
79	1569	Hexagon screw M 6x29 Din 933	2	2
80	7442	Hook	2	2
81	3529	Washer	2	2
82	1570	Hexagon screw M 6x20 Din 933	2	2
83	343	Intake manifold	1	1
84	683	Clamp	1	1
85	348	Clamp	1	1
86	7444	Front number plate	1	1
87	6252	Front decal, green (250)	1	-
88	6261	Front decal, yellow (490)	-	1
89	6247	Cable guide cpl	1	1
90	6265	Spring nut	2	2
91	3094	Sliding roller	2	2
92	6253	Plastic screw M 6x30	2	2
93	3711	Plastic screw M 6x22	2	2
94	6254	Set motormount bolts (pos 95-96)	1	1
95	1610	Hexagon screw M 8x120 Din 931	2	2
96	1700	Securing nut NM 8-10 Din 980	2	2
97	325	Rubber cable clip	8	8
98	6565	Rubber plug	2	2
99	1587	Hexagon screw M 8x16 Din 933	2	2
100	406	Hose	2	2
101	7446	Side panel, left	1	1
102	4153	Green decal (250)	2	-
103	7448	Decal right	1	1
104	7450	Side panel right	1	1
105	6747	Sticker 250	1	-
106	5050	Oval head screw M 6x16 Din 7985	4	4
107	2708	Rubber washer	4	4
108	7603	Exhaust system cpl (250)	1	-
109	7600	Exhaust system (250)	1	-
110	6862	Silencer, cpl (250)	1	-
111	6863	Silencer (250)	1	-
112	6864	Exhaust packing (250)	1	-
113	1884	Securing ring 70x2.5 Din 472	1	1
114	6852	Silencer end cap	1	1
115	5474	Clamp 35/15	1	1
116	1591	Hexagon screw M 8x25 Din 933	1	1
117	5345	Rubber washer	2	2
118	5453	Bush for silencer mount	1	1
119	1567	Hexagon screw M 6x16 Din 933	2	2
120	5430	Washer	4	4
121	1166	Silentbloc	2	2
122	896	Asbestos cord	X	X
123	6276	Guide bush (490)	-	1
124	6275	Spring (490)	-	1
125	1523	Inner hexagon screw M 6x70 Din 912 (490)	-	1
126	6866	Tension spring (250)	2	-
127	7422	Hinge fork, cpl	1	1
128	7424	Bush	2	2
129	1915	Grease nipple M 6x3.5 Din 972	3	3
130	7425	Hinge lever, cpl	1	1
131	7424	Bush	4	4
132	7427	Hinge bearing	4	4
133	7248	Spacer bush	4	4
134	7429	Clip	2	2
135	1517	Inner hexagon screw M 8x75 Din 912	1	1
136	7430	Screw	1	1
137	7432	Bush	1	1
138	7431	Hinge bolt	1	1
139	7545	Bolt	1	1
140	7546	Damper bolt	2	2
141	7547	Washer	1	1
142	1737	Washer B 13 Din 125	6	6
143	7548	Washer	2	2
144	7549	Washer	1	1
145	1694	Securing nut NM 10x1 Din 980	5	5
146	7550	Securing ring	6	6
147	7561	Damper, cpl	1	1
148	7562	Rubber support	2	2
149	85	Clamp	2	2
150	1727	Securing nut NM 12x1.5 Din 980	4	4
151	1702	Spring ring B 4 Din 127	1	1
152	1665	Hexagon nut M 4 Din 934	1	1
153	237	Clamp	1	1
154	242	Spring	1	1
