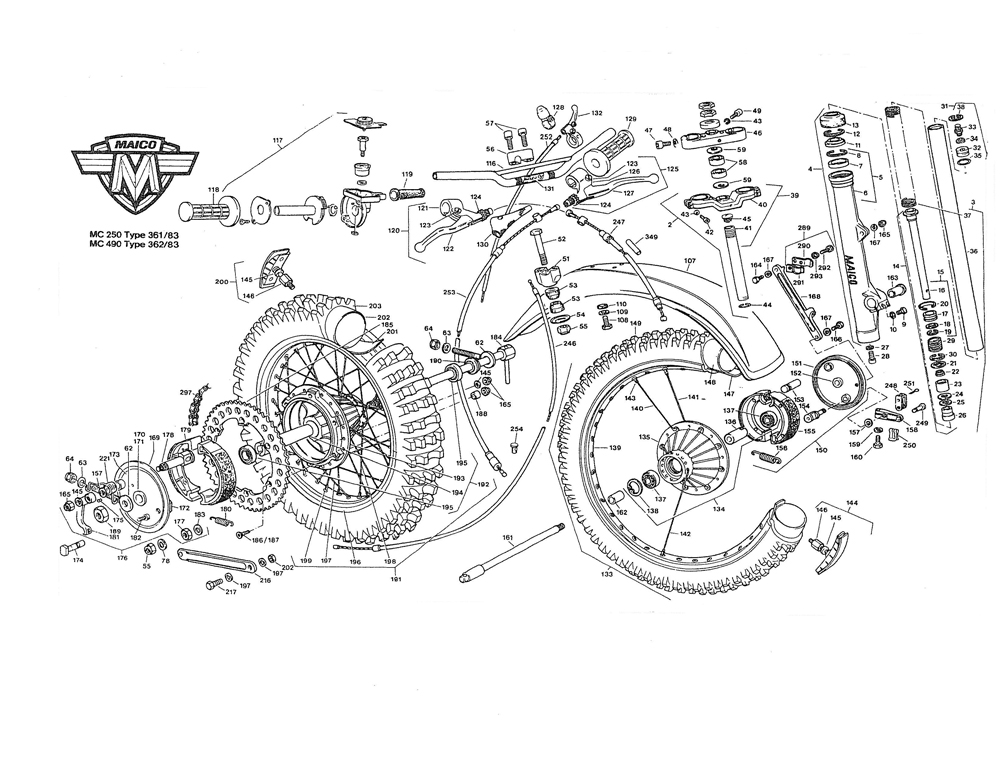

1983 CHASSIS PARTS LIST
88 parts — Models: 250 / 490
Click to enlarge
| Item No. | PART NO. | DESCRIPTION | 250 | 490 |
|---|---|---|---|---|
| 133 | 7955 | Front wheel only | 1 | 1 |
| 134 | 6671 | Front wheel hub with bearing | 1 | 1 |
| 135 | 6670 | Front wheel hub only | 1 | 1 |
| 136 | 2428 | Spacer tube for front wheel hub | 1 | 1 |
| 137 | 2427 | Ball bearing 6202 RS Din 625 | 2 | 2 |
| 138 | 1853 | Securing ring 35x1.5 Din 472 | 2 | 2 |
| 139 | 7956 | Rim 21" | 1 | 1 |
| 140 | 7957 | Spoke 4x3.5x4x230-80° | 9 | 9 |
| 141 | 7958 | Spoke 4x3.5x4x230-100° | 9 | 9 |
| 142 | 6859 | Spoke 4x3.5x4x244-155° | 18 | 18 |
| 143 | 2408 | Nipple M 4.5 | 36 | 36 |
| 144 | 7960 | Tire holder cpl with nut and washer | 1 | 1 |
| 145 | 1734 | Washer B 8.4 Din 125 | 6 | 6 |
| 146 | 289 | Nut for tire holder | 2 | 2 |
| 147 | 2001 | Tire flap 21" | 1 | 1 |
| 148 | 2002 | Hose 3.00-21" | 1 | 1 |
| 149 | 2003 | Tire 3.00x21" | nB | nB |
| 150 | 6144 | Brake plate cpl | 1 | 1 |
| 151 | 2236 | Brake plate only with bush | 1 | 1 |
| 152 | 2238 | Bushing | 1 | 1 |
| 153 | 2418 | Pivot bolt | 1 | 1 |
| 154 | 2419 | Brake toggle | 1 | 1 |
| 155 | 1322 | Brake shoe | 2 | 2 |
| 156 | 6148 | Spring for brake shoe | 2 | 2 |
| 157 | 187 | Rubber washer | 1 | 1 |
| 158 | 6145 | Brake lever front | 1 | 1 |
| 159 | 1704 | Spring ring B 6 Din 127 | 1 | 1 |
| 160 | 1570 | Hexagon screw M 6x25 Din 933 | 1 | 1 |
| 161 | 2247 | Front axle | 1 | 1 |
| 162 | 2250 | Spacer bush | 1 | 1 |
| 163 | 2430 | Bush | 1 | 1 |
| 164 | 1594 | Hexagon screw M 8x40 Din 931 | 1 | 1 |
| 165 | 1692 | Securing nut NM 8 Din 980 | 8 | 8 |
| 166 | 1589 | Hexagon screw M 8x20 Din 933 | 1 | 1 |
| 167 | 1714 | Washer 8.2x20x1.0 | 3 | 3 |
| 168 | 6147 | Brake stay front | 1 | 1 |
| 169 | 7900 | Brake plate | 1 | 1 |
| 170 | 7901 | Spacer bush for brake plate | 1 | 1 |
| 171 | 183 | Spacer bush for brake plate | 1 | 1 |
| 172 | 3187 | Brake plate rear only | 1 | 1 |
| 173 | 3188 | Cover plate | 1 | 1 |
| 174 | 3189 | Pivot bolt | 1 | 1 |
| 175 | 1901 | Oval head nail #x8 Din 1476 | 1 | 1 |
| 176 | 7902 | Brake plate cpl | 1 | 1 |
| 177 | 1674 | Hexagon nut M 10 Din 934 | 1 | 1 |
| 178 | 151 | Brake toggle | 1 | 1 |
| 179 | 188 | Brake shoe | 2 | 2 |
| 180 | 1323 | Tension spring | 2 | 2 |
| 181 | 3190 | Brake lever for rear hub | 1 | 1 |
| 182 | 3270 | Inner hexagon screw M 10x40x32 | 1 | 1 |
| 183 | 1715 | Spring washer B 10 Din 137 | 1 | 1 |
| 184 | 7903 | Rear axle | 1 | 1 |
| 185 | 7522 | Sprocket 52 Z | 1 | 1 |
| 186 | 1880 | Countersunk screw with inner hexagon M 8x50 | 3 | 3 |
| 187 | 1803 | Countersunk screw with inner hexagon M 8x40 | 3 | 3 |
| 188 | 6696 | Spacer bush | 3 | 3 |
| 189 | 8486 | Securing nut NM 16x1.5 Din 980 | 1 | 1 |
| 190 | 7907 | Spacer part | 1 | 1 |
| 191 | 7897 | Rear wheel only | 1 | 1 |
| 192 | 6684 | Rear wheel hub cpl | 1 | 1 |
| 193 | 6689 | Rear wheel hub only | 1 | 1 |
| 195 | 205 | Ball bearing 6202 2 RS 3 | 2 | 2 |
| 196 | 196 | Rim 18" | 1 | 1 |
| 197 | 7397 | Spoke ED 4.5x4x163 | 18 | 18 |
| 198 | 7398 | Spoke ED 4.5x4x209 | 18 | 18 |
| 199 | 2408 | Nipple | 36 | 36 |
| 200 | 7909 | Tire holder cpl with nut and washer | 1 | 1 |
| 201 | 2005 | Tire flap 18" | 1 | 1 |
| 202 | 2015 | Hose 4.50x18" | 1 | 1 |
| 203 | 2008 | Tire 4.5x18" | 1 | 1 |
| 204 | 7910 | Front brake lever | 1 | 1 |
| 205 | 7915 | Front brake lever cpl | 1 | 1 |
| 206 | 1667 | Hexagon nut M 6 Din 934 | 1 | 1 |
| 207 | 7916 | Hexagon screw M 6x30 Din 933 | 1 | 1 |
| 208 | 6702 | Bush for brake lever | 1 | 1 |
| 209 | 7917 | M 8x100 Din 931 | 1 | 1 |
| 210 | 1734 | Washer B 8.4 Din 125 | 2 | 2 |
| 211 | 7991 | Roller bearing | 1 | 1 |
| 212 | 7996 | Spacer washer | 1 | 1 |
| 213 | 7993 | Ball bearing 608 2 RS Din 625 | 2 | 2 |
| 214 | 7992 | Spacer bush | 1 | 1 |
| 215 | 1692 | Securing nut NM 8 Din 980 | 2 | 2 |
| 216 | 1978 | Brake axle rear | 1 | 1 |
| 217 | 7921 | Hexagon screw M 8x60 Din 933 | 1 | 1 |
| 218 | 7936 | Rear brake rod for rear brake | 1 | 1 |
| 219 | 243 | Nut | 1 | 1 |
| 220 | 244 | Nipple holder | 1 | 1 |
| 221 | 7922 | Brake lever spring | 1 | 1 |
