 Back to 1983 Diagrams1983 FRAME PARTS LIST251 parts — Models: 250 / 490
Chassis →Engine 250 →Engine 490 →

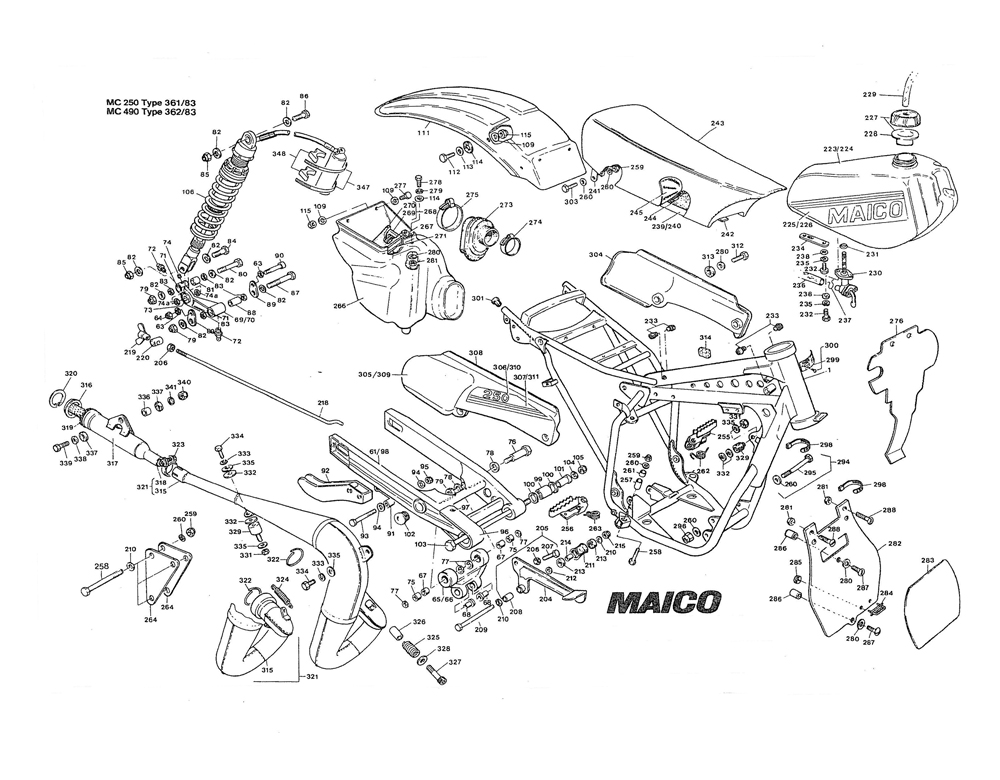

Click to enlarge
Item No.PART NO.DESCRIPTION250490
17995Frame11
27472Telescopic fork cpl11
37480Fork leg cpl22
46631Fork slider cpl22
56626Fork slider with bush22
66630Fork slider only22
76436Guide bush22
86437Circlip22
91571Hexagon screw M 6x30 Din 93144
101510Spring ring B 6 Din 12844
116439Sealing ring for fork22
126440Circlip SB 55x1.522
136828Fork wiper22
147478Damper cpl22
157477Damper tube cpl22
167475Damper tube soldered22
176447Damper piston22
186448Washer 23.9x28.2x0.922
196449Circlip SW 2422
206450Piston ring22
216426Valve seat22
226454Valve22
236427Damper insert22
246456Washer 29.9x36.7x.0.222
256457Securing ring 37x1.522
266458Bush for damper tube22
276459Sealing ring A 10x15 Din 760322
281655Inner hexagon screw M 10x2522
297479Counter spring22
306428Circlip SB 3822
316429Plug22
326431Plug22
332184Valve cpl22
34277Sealing ring A 8x11.522
356464O-ring 29.74x3.5322
366637Main tube22
377481Fork spring22
386457Securing ring 37x15 Din 47222
397473Lower cross head cpl11
406640Lower cross head11
417483Steering tube11
421649Inner hexagon screw M 8x45 Din 91244
431511Spring ring B 6 Din 12855
447484Circlip SW 2711
457490Plastic11
467474Upper cross head11
473270Inner hexagon screw M 10x4022
481512Spring ring B 10 Din 12822
491648Inner hexagon screw M 8x4011
506474Steering head nut22
5174Lower handlebar clamp22
521619Hexagon screw M 10x5522
536806Rubber buffer44
546642Washer22
551693Securing nut NM 10 Din 98022
566478Upper handlebar clamp22
571629Inner hexagon screw M 8x3044
583297Roller bearing22
593296Nilos bearing22
606480Cover plate11
617840Rear wheel swing arm11
627841Chain tensioner22
631734Washer B 8.4 Din 12544
641692Securing nut NM 8 Din 98033
657844Joint fork cpl11
667845Joint fork11
677846Bush22
687847Bush22
697848Toggle arm cpl11
707849Toggle arm11
717424Bush44
727850Nipple22
737427Hinge bearing11
741465Pin M 5x411
74a6065O-ring 12.37x2.6222
757851Bush22
767852Screw22
777853Sealing ring44
781735Washer B 10.5 Din 12544
791694Securing nut NM 10x1 Din 98044
807854Bolt11
817432Bush11
821737Washer B 13 Din 12588
837550Sealing ring44
847546Bolt11
851727Securing nut NM 12x1.5 Din 98022
867855Bolt11
877856Bolt11
887857Spacer Bush11
897858Supporting loop22
901598Hexagon screw M 8x60 Din 93111
917864Spacer tube11
927859Chain guide for 56/54 teeth11
931573Hexagon screw M 6x50 Din 93111
941732Washer B 6,4 Din 12511
951690Securing nut NM 6 Din 98011
967861Protection plate11
971514Countersunk screw M 6x10 Din 96322
987862Rear wheel swing arm with bearings11
993932Needle bush HK 203022
1001930O-ring44
1011931Bush for rear swing arm22
1027863Plug22
1033937Spindle11
1041718Spring washer B 14 Din 13711
1055011Securing nut NM 14x1.5 Din 98011
1067865Damper cplnBnB
1077895Front fender11
1081569M 6x20 Din 93344
1091750Washer 6.4 Din 902144
1102708Rubber washer44
1117896Rear fender11
1121568Hexagon screw M 6x1844
1131732Washer B 6.4 Din 12588
1142708Rubber washer44
1151690Securing nut NM 6 Din 98044
1166668Handle bar11
1177898Throttle grip cpl11
1187893Grip cover11
1192212Rubber cap11
1202215Clutch lever cpl11
1212213Hinge for clutch lever11
1222216Clutch lever11
123133Lever screw with nut22
124212Adjusting screw with nut11
1252218Brake lever cpl11
1262217Hinge of brake lever11
1272219Hand brake lever only11
1282220Kill button11
1297892Rubber grip11
1307891Lever cover22
1316698Sticker11
1327889Lever for decompressor (490)-1
2237924Tank with decal11
2246508Tank11
2257927Tank decal left11
2267928Tank decal right11
2276515Tank cap cpl11
2286516Cover gasket11
2296517Hose11
2306509Gas tap11
2316510O-ring11
2321525Hexagon screw M 6x14 Din 93344
2336531Rubber buffer44
2347994Holding plate11
2351704Spring ring B 6 Din 12744
2372832Hose clamp22
2381750Washer B 6,4 Din 902122
2397941Seat base with clamp and bracket11
2406717Seat base only11
2416718Seat bracket11
2426751Clamp holder11
2437942Seat cpl low11
2447943Seat padding low11
2457944Seat cover low11
2467954Gas throttle11
2477598Brake cable11
2486151Brake cable intake11
2496152Bolt for head11
2506153Clip for bolt11
2511857Split pin 3.2x25 Din 9411
252315Decompressor cable (490)-1
2537938Clutch cable11
2547951Nipple holder11
2556731Foot rest left11
2566735Foot rest right11
2576738Bearing bush22
2581598Hexagon screw M 8x60 Din 93133
2591692Securing nut NM 8 Din 98088
2601754Washer B 8.4 Din 1252020
2616750Spacer bush22
2626739Foot rest spring left11
2636740Foot rest spring right11
2647949Supporting plate for cylinder head (250)2-
2651598Hexagon screw M 8x60 Din 93133
2667969Air filter box11
2677968Clamp11
2687434Filter element cpl11
2697435Filter cage11
2707436Air filter foam11
2717437Holding wire cpl11
2737973Intake flange22
274683Clamp11
2757451Clamp11
2767948Splash guard11
2771569Hexagon screw M 6x20 Din 93322
2781570Hexagon screw M 6x25 Din 93322
2791732Washer B 6.4 Din 12544
2801750Washer B 6.4 Din 9331010
2811690Securing nut NM 6 Din 98066
2827444Front number plate11
2837975Front decal green (250)1-
2846247Guide plate11
2856265Spring nut22
2863094Sliding roller22
2876253Plastic screw22
2883711Plastic screw M 6x2222
2896257Brake cable holder cpl11
2906258Brake cable holder11
2916255Clamp Plate11
2921565Hexagon screw M 6x12 Din 93311
2931704Spring ring B 6 Din 12711
2946254Set motormount bolts11
2951610Hexagon screw M 8x120 Din 93122
2961700Securing nut NM 8 Din 98022
2973708Chain with lock 1/4" 11811
298325Rubber cable clip88
299323Identification plate11
3001900Oval head nail 2x4 Din 147622
3016565Rubber cap22
3026760Rubber cable clip 3.6x27722
3031587Hexagon screw M 8x16 Din 93322
3047971Side panel left11
3057977Decal left green (250)1-
3066747Sticker (250)1-
3077978Decal left11
3087972Side panel right11
3097980Decal right green (250)1-
3106747Sticker (250)1-
3117981Decal right11
3125050Oval head screw M 6x16 Din 798544
3132708Rubber washer44
3146759Rubber 25x3XX
3158353Exhaust welded (250)1-
3168357Tail pipe soldered (250)1-
3178361Silencer welded (250)1-
3188366Silencer cpl (250)1-
3196864Exhaust packing (250)1-
3208368Circlip11
3218367Exhaust system cpl (250)1-
322896Asbestos cordXX
3235474Clamp11
3246866Tension spring (250)2-
3256275Spring (490)-1
3266276Guide bush (490)-1
3271523Inner hexagon screw M 6x70 Din 912 (490)-1
3291166Silent bloc for exhaust22
3301732Washer B 6.4 Din 12522
3311690Securing nut NM 6 Din 98022
3325430Washer44
3331510Spring ring B 6 Din 12822
3341525Hexagon screw M 6x14 Din 93322
3351750Washer B 6.4 Din 902122
3368360Bush for silencer11
3375345Rubber washer22
3381759Washer B 8.4 Din 902111
3391591Hexagon screw M 8x25 Din 93311
3401692Securing nut NM 8 Din 98011
3411734Washer B 8.4 Din 12511
3477867Clamp22
3487868Rubber support22

Item No.	PART NO.	DESCRIPTION	250	490
1	7995	Frame	1	1
2	7472	Telescopic fork cpl	1	1
3	7480	Fork leg cpl	2	2
4	6631	Fork slider cpl	2	2
5	6626	Fork slider with bush	2	2
6	6630	Fork slider only	2	2
7	6436	Guide bush	2	2
8	6437	Circlip	2	2
9	1571	Hexagon screw M 6x30 Din 931	4	4
10	1510	Spring ring B 6 Din 128	4	4
11	6439	Sealing ring for fork	2	2
12	6440	Circlip SB 55x1.5	2	2
13	6828	Fork wiper	2	2
14	7478	Damper cpl	2	2
15	7477	Damper tube cpl	2	2
16	7475	Damper tube soldered	2	2
17	6447	Damper piston	2	2
18	6448	Washer 23.9x28.2x0.9	2	2
19	6449	Circlip SW 24	2	2
20	6450	Piston ring	2	2
21	6426	Valve seat	2	2
22	6454	Valve	2	2
23	6427	Damper insert	2	2
24	6456	Washer 29.9x36.7x.0.2	2	2
25	6457	Securing ring 37x1.5	2	2
26	6458	Bush for damper tube	2	2
27	6459	Sealing ring A 10x15 Din 7603	2	2
28	1655	Inner hexagon screw M 10x25	2	2
29	7479	Counter spring	2	2
30	6428	Circlip SB 38	2	2
31	6429	Plug	2	2
32	6431	Plug	2	2
33	2184	Valve cpl	2	2
34	277	Sealing ring A 8x11.5	2	2
35	6464	O-ring 29.74x3.53	2	2
36	6637	Main tube	2	2
37	7481	Fork spring	2	2
38	6457	Securing ring 37x15 Din 472	2	2
39	7473	Lower cross head cpl	1	1
40	6640	Lower cross head	1	1
41	7483	Steering tube	1	1
42	1649	Inner hexagon screw M 8x45 Din 912	4	4
43	1511	Spring ring B 6 Din 128	5	5
44	7484	Circlip SW 27	1	1
45	7490	Plastic	1	1
46	7474	Upper cross head	1	1
47	3270	Inner hexagon screw M 10x40	2	2
48	1512	Spring ring B 10 Din 128	2	2
49	1648	Inner hexagon screw M 8x40	1	1
50	6474	Steering head nut	2	2
51	74	Lower handlebar clamp	2	2
52	1619	Hexagon screw M 10x55	2	2
53	6806	Rubber buffer	4	4
54	6642	Washer	2	2
55	1693	Securing nut NM 10 Din 980	2	2
56	6478	Upper handlebar clamp	2	2
57	1629	Inner hexagon screw M 8x30	4	4
58	3297	Roller bearing	2	2
59	3296	Nilos bearing	2	2
60	6480	Cover plate	1	1
61	7840	Rear wheel swing arm	1	1
62	7841	Chain tensioner	2	2
63	1734	Washer B 8.4 Din 125	4	4
64	1692	Securing nut NM 8 Din 980	3	3
65	7844	Joint fork cpl	1	1
66	7845	Joint fork	1	1
67	7846	Bush	2	2
68	7847	Bush	2	2
69	7848	Toggle arm cpl	1	1
70	7849	Toggle arm	1	1
71	7424	Bush	4	4
72	7850	Nipple	2	2
73	7427	Hinge bearing	1	1
74	1465	Pin M 5x4	1	1
74a	6065	O-ring 12.37x2.62	2	2
75	7851	Bush	2	2
76	7852	Screw	2	2
77	7853	Sealing ring	4	4
78	1735	Washer B 10.5 Din 125	4	4
79	1694	Securing nut NM 10x1 Din 980	4	4
80	7854	Bolt	1	1
81	7432	Bush	1	1
82	1737	Washer B 13 Din 125	8	8
83	7550	Sealing ring	4	4
84	7546	Bolt	1	1
85	1727	Securing nut NM 12x1.5 Din 980	2	2
86	7855	Bolt	1	1
87	7856	Bolt	1	1
88	7857	Spacer Bush	1	1
89	7858	Supporting loop	2	2
90	1598	Hexagon screw M 8x60 Din 931	1	1
91	7864	Spacer tube	1	1
92	7859	Chain guide for 56/54 teeth	1	1
93	1573	Hexagon screw M 6x50 Din 931	1	1
94	1732	Washer B 6,4 Din 125	1	1
95	1690	Securing nut NM 6 Din 980	1	1
96	7861	Protection plate	1	1
97	1514	Countersunk screw M 6x10 Din 963	2	2
98	7862	Rear wheel swing arm with bearings	1	1
99	3932	Needle bush HK 2030	2	2
100	1930	O-ring	4	4
101	1931	Bush for rear swing arm	2	2
102	7863	Plug	2	2
103	3937	Spindle	1	1
104	1718	Spring washer B 14 Din 137	1	1
105	5011	Securing nut NM 14x1.5 Din 980	1	1
106	7865	Damper cpl	nB	nB
107	7895	Front fender	1	1
108	1569	M 6x20 Din 933	4	4
109	1750	Washer 6.4 Din 9021	4	4
110	2708	Rubber washer	4	4
111	7896	Rear fender	1	1
112	1568	Hexagon screw M 6x18	4	4
113	1732	Washer B 6.4 Din 125	8	8
114	2708	Rubber washer	4	4
115	1690	Securing nut NM 6 Din 980	4	4
116	6668	Handle bar	1	1
117	7898	Throttle grip cpl	1	1
118	7893	Grip cover	1	1
119	2212	Rubber cap	1	1
120	2215	Clutch lever cpl	1	1
121	2213	Hinge for clutch lever	1	1
122	2216	Clutch lever	1	1
123	133	Lever screw with nut	2	2
124	212	Adjusting screw with nut	1	1
125	2218	Brake lever cpl	1	1
126	2217	Hinge of brake lever	1	1
127	2219	Hand brake lever only	1	1
128	2220	Kill button	1	1
129	7892	Rubber grip	1	1
130	7891	Lever cover	2	2
131	6698	Sticker	1	1
132	7889	Lever for decompressor (490)	-	1
223	7924	Tank with decal	1	1
224	6508	Tank	1	1
225	7927	Tank decal left	1	1
226	7928	Tank decal right	1	1
227	6515	Tank cap cpl	1	1
228	6516	Cover gasket	1	1
229	6517	Hose	1	1
230	6509	Gas tap	1	1
231	6510	O-ring	1	1
232	1525	Hexagon screw M 6x14 Din 933	4	4
233	6531	Rubber buffer	4	4
234	7994	Holding plate	1	1
235	1704	Spring ring B 6 Din 127	4	4
237	2832	Hose clamp	2	2
238	1750	Washer B 6,4 Din 9021	2	2
239	7941	Seat base with clamp and bracket	1	1
240	6717	Seat base only	1	1
241	6718	Seat bracket	1	1
242	6751	Clamp holder	1	1
243	7942	Seat cpl low	1	1
244	7943	Seat padding low	1	1
245	7944	Seat cover low	1	1
246	7954	Gas throttle	1	1
247	7598	Brake cable	1	1
248	6151	Brake cable intake	1	1
249	6152	Bolt for head	1	1
250	6153	Clip for bolt	1	1
251	1857	Split pin 3.2x25 Din 94	1	1
252	315	Decompressor cable (490)	-	1
253	7938	Clutch cable	1	1
254	7951	Nipple holder	1	1
255	6731	Foot rest left	1	1
256	6735	Foot rest right	1	1
257	6738	Bearing bush	2	2
258	1598	Hexagon screw M 8x60 Din 931	3	3
259	1692	Securing nut NM 8 Din 980	8	8
260	1754	Washer B 8.4 Din 125	20	20
261	6750	Spacer bush	2	2
262	6739	Foot rest spring left	1	1
263	6740	Foot rest spring right	1	1
264	7949	Supporting plate for cylinder head (250)	2	-
265	1598	Hexagon screw M 8x60 Din 931	3	3
266	7969	Air filter box	1	1
267	7968	Clamp	1	1
268	7434	Filter element cpl	1	1
269	7435	Filter cage	1	1
270	7436	Air filter foam	1	1
271	7437	Holding wire cpl	1	1
273	7973	Intake flange	2	2
274	683	Clamp	1	1
275	7451	Clamp	1	1
276	7948	Splash guard	1	1
277	1569	Hexagon screw M 6x20 Din 933	2	2
278	1570	Hexagon screw M 6x25 Din 933	2	2
279	1732	Washer B 6.4 Din 125	4	4
280	1750	Washer B 6.4 Din 933	10	10
281	1690	Securing nut NM 6 Din 980	6	6
282	7444	Front number plate	1	1
283	7975	Front decal green (250)	1	-
284	6247	Guide plate	1	1
285	6265	Spring nut	2	2
286	3094	Sliding roller	2	2
287	6253	Plastic screw	2	2
288	3711	Plastic screw M 6x22	2	2
289	6257	Brake cable holder cpl	1	1
290	6258	Brake cable holder	1	1
291	6255	Clamp Plate	1	1
292	1565	Hexagon screw M 6x12 Din 933	1	1
293	1704	Spring ring B 6 Din 127	1	1
294	6254	Set motormount bolts	1	1
295	1610	Hexagon screw M 8x120 Din 931	2	2
296	1700	Securing nut NM 8 Din 980	2	2
297	3708	Chain with lock 1/4" 118	1	1
298	325	Rubber cable clip	8	8
299	323	Identification plate	1	1
300	1900	Oval head nail 2x4 Din 1476	2	2
301	6565	Rubber cap	2	2
302	6760	Rubber cable clip 3.6x277	2	2
303	1587	Hexagon screw M 8x16 Din 933	2	2
304	7971	Side panel left	1	1
305	7977	Decal left green (250)	1	-
306	6747	Sticker (250)	1	-
307	7978	Decal left	1	1
308	7972	Side panel right	1	1
309	7980	Decal right green (250)	1	-
310	6747	Sticker (250)	1	-
311	7981	Decal right	1	1
312	5050	Oval head screw M 6x16 Din 7985	4	4
313	2708	Rubber washer	4	4
314	6759	Rubber 25x3	X	X
315	8353	Exhaust welded (250)	1	-
316	8357	Tail pipe soldered (250)	1	-
317	8361	Silencer welded (250)	1	-
318	8366	Silencer cpl (250)	1	-
319	6864	Exhaust packing (250)	1	-
320	8368	Circlip	1	1
321	8367	Exhaust system cpl (250)	1	-
322	896	Asbestos cord	X	X
323	5474	Clamp	1	1
324	6866	Tension spring (250)	2	-
325	6275	Spring (490)	-	1
326	6276	Guide bush (490)	-	1
327	1523	Inner hexagon screw M 6x70 Din 912 (490)	-	1
329	1166	Silent bloc for exhaust	2	2
330	1732	Washer B 6.4 Din 125	2	2
331	1690	Securing nut NM 6 Din 980	2	2
332	5430	Washer	4	4
333	1510	Spring ring B 6 Din 128	2	2
334	1525	Hexagon screw M 6x14 Din 933	2	2
335	1750	Washer B 6.4 Din 9021	2	2
336	8360	Bush for silencer	1	1
337	5345	Rubber washer	2	2
338	1759	Washer B 8.4 Din 9021	1	1
339	1591	Hexagon screw M 8x25 Din 933	1	1
340	1692	Securing nut NM 8 Din 980	1	1
341	1734	Washer B 8.4 Din 125	1	1
347	7867	Clamp	2	2
348	7868	Rubber support	2	2
